Stereo-link SL1200 User Manual

Usb audio playback system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SL1200
IT'S YOUR MUSIC.
WE MAKE THE MOST OF IT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stereo-link SL1200

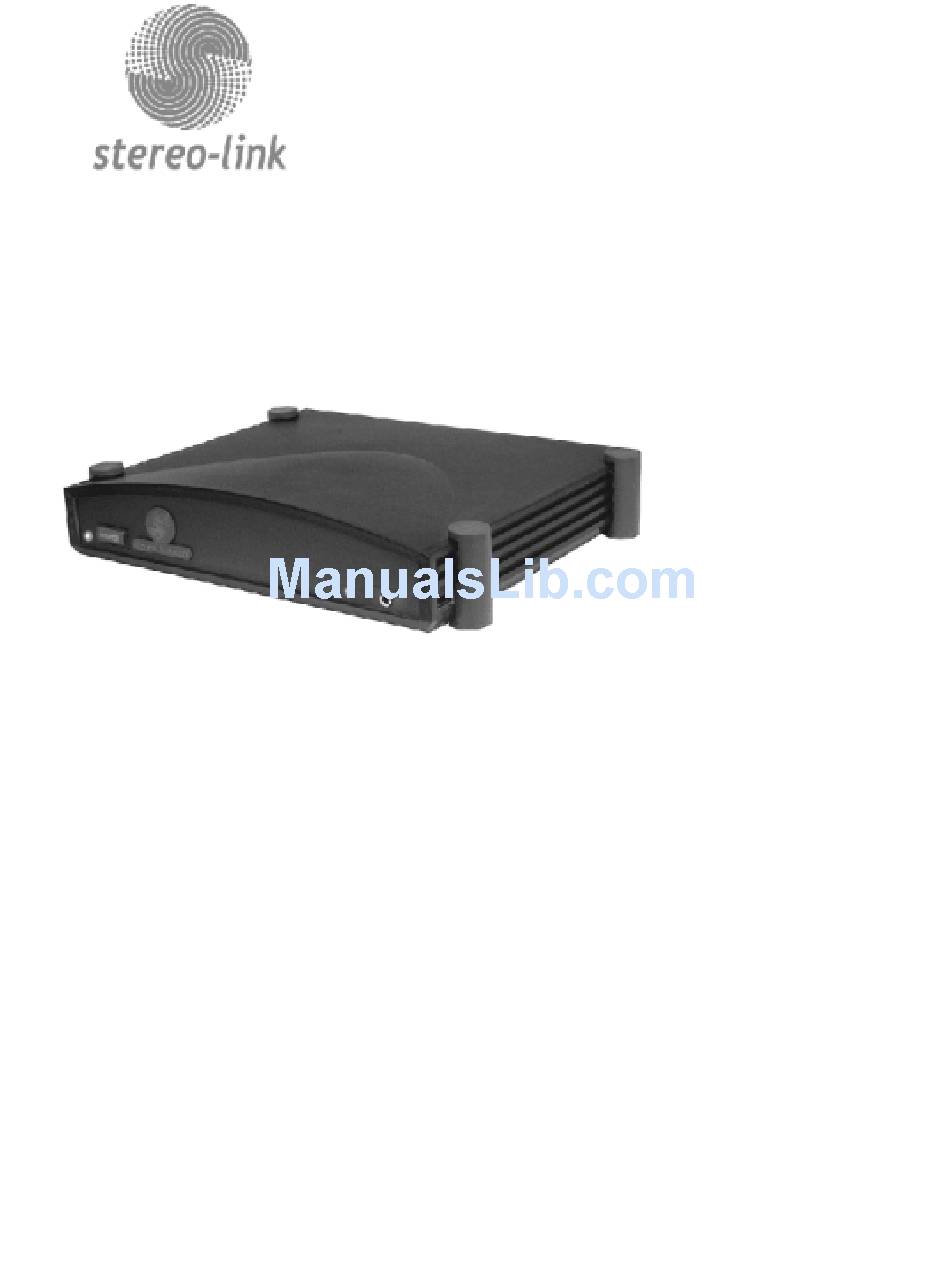

  • Page 1 SL1200 IT’S YOUR MUSIC. WE MAKE THE MOST OF IT.

  • Page 3: Table Of Contents

    SL1200 ........

  • Page 4: Sl1200

    FCC Radio Frequency Interference Statement for Model SL1200 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Important Safety Instructions

    CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL IMPORTANT SAFETY INSTRUCTIONS This product is not intended to be serviced. Should the product cease to function in its intended manner, it should be returned to the manufacturer or be discarded.
  • Page 6 that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. OVERLOADING – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

  • Page 7: What's In The Box

    What’s In The Box stereo-link model 1200 USB Audio Playback System USB cable - 3 meters standard RCA Audio cable - 3 meters standard Power cord Model 1200 - Features * Direct digital audio path via USB. True Plug and Play performance.
  • Page 8 Power LED - Lights Green when the AC Power is ON Power Switch - Push Button AC Power ON/OFF switch USB Active LED - Lights to Indicate USB Audio is being received Headphone Jack - 3.5 mm stereo jack, output of headphone amplifier Headphone Volume - Thumbwheel volume control for headphone amplifier Power In - IEC 320 type inlet, accepts power cord with C7 connector USB In -accepts end of USB cable with type “B”...

  • Page 9: Setting Up The Sl1200

    Setting up the SL1200 WARNING: Always keep the volume of your stereo amplifier or receiver set to minimum while you are making connections. This will prevent you from accidentally damaging the speakers. When everything is connected and powered on, then you can adjust the volume.

  • Page 10: Using With A Windows Pc

    3 Using the RCA audio cables included with the SL1200, or similar high quality cables, connect the audio outputs (labeled R & L) to a line level input on your amplifier or receiver (usually labeled as AUX, CD, DVD, etc).
  • Page 11 WINDOWS UPDATE . Select the "Windows 98 Customer Service Pack". Make sure you re-start Windows before you connect the SL1200 for the first time. If you encounter any problems downloading or installing the Windows 98 upgrade, you should contact Microsoft for help.

  • Page 12: Using With A Macintosh

    You should now be ready to play music! WARNING: Some player applications will “Freeze-up” if you disconnect or turn off the SL1200 while the player is open. If this happens, Windows Using with a Macintosh Hardware Requirements stereo-link products are designed to work with any Macintosh with a built-in USB port (e.g.
  • Page 13 LED next to the button will light to indicate that the power is ON. The Mac OS will detect the SL1200 and load the drivers. This may take about 5 seconds. During this time it is best if you do not touch the mouse or keyboard. After the unit is recognized, the Mac will automatically change the "built-in"...
  • Page 14 For more information on compiling the Linux kenel see http://www.linuxdoc.org/HOWTO/Kernel-HOWTO.html. Connecting the SL1200 The SL1200 is self-powered and may be connected to any available USB port. It does not require any special drivers or software of its own. You are now ready to turn the stereo-link on.

  • Page 15: Tips And Suggestions

    Tips And Suggestions NOTE: The stereo-link will usually be referred to as the Speaker or “built-in” by Windows and the Mac. This can be confusing. Volume, Bass & Treble Control Settings To use the full resolution of the 1200 and obtain the highest quality sound, you should set the Volume on your computer to MAX, and use the volume controls on your stereo, or the headphone amplifier.
  • Page 16 Windows: To use your CD Drive as an audio CD player, you need to configure it for Direct Digital Connection. If your CD ROM DOES NOT support Digital Audio Extraction, these items will not be available and appear greyed out. Windows 98: Open My Computer, open Control Panel, then open the Multimedia icon.

  • Page 17: Audio Quality & Sample Files

    Audio Quality & Sample Files When you use your PC’s CD ROM drive with your stereo-link to play Audio CDs, you will achieve the same level of audio playback quality that you would get from a good quality component type Audio CD player.

  • Page 18: Troubleshooting - Windows

    Troubleshooting - Windows General Computer & USB problems Q. I’m having problems and I think it’s the USB on my Windows computer. What do I need to know? A. Intel, OPTi, ALi, VIA, and other chip manufacturers all make different USB chip sets used by various computer and add-on cards manufacturers.
  • Page 19 Winamp: MMSYSTEM002 A device ID has been used that is out of range of your system) A. Sometimes, Windows does not properly recognize a USB device like the stereo-link , and it thinks there is not one available. If this should occur, you stereo-link should keep the powered on and Restart Windows.

  • Page 20: Troubleshooting - Mac

    Troubleshooting - Mac Q. My Mac switches to the Model 1200 whenever it is present. Can I switch back to my internal speakers, if I want? stereo-link A. You will have to disconnect the (or turn it off). The Mac will...

  • Page 21: Software

    Software Any software capable of playing audio your PC should be compatible with stereo-link products. Two of the most popular forms of computer audio are MP3 and streaming audio over the Web. Some of the things you can do with MusicMatch: Play Your Music •...

  • Page 22: Support

    Need help? First, check out the Troubleshooting section of this manual. If the answer you’re looking for is not there, visit our website http://www.stereo-link.com and click on the SUPPORT tab t check out the latest information If your problem is still a problem, or if you have a question, click on the Email form option on the support page, or email us at: support@stereo-link.com...

  • Page 23: Model 1200 Specifications

    Model 1200 Specifications Power Requirements US & Canada 120V AC/60 Hz, 110-127 Elsewhere 220-240V 50/60 Hz Input Digital to Analog Converter 20 bits Sampling Rates 5 to 55 kHz Line Output Jack RCA stereo Level 2.0 V RMS full scale Frequency Response 5Hz to 21 kHz (44.1khz) THD+Noise...
  • Page 24 Accessories Includes USB cable - 3 meters RCA audio cable - 3 meters Optional USB Active Extension cable - 5 meters RCA audio cable - 5 meters...

  • Page 25: Stereo-Link Limited Warranty

    Limited Warranty 1 yr parts & labor (in factory) stereo-link Limited Warranty stereo-link warrants our products against defects in material or workmanship for a period of one year from the date of original purchase, and agrees to repair or, at our option, replace any defective unit without charge for either parts or labor.
  • Page 26 95 Fulkerson St Cambridge, MA USA http://www.stereo-link.com Rev 1C SL1200-0816 August 2001...
