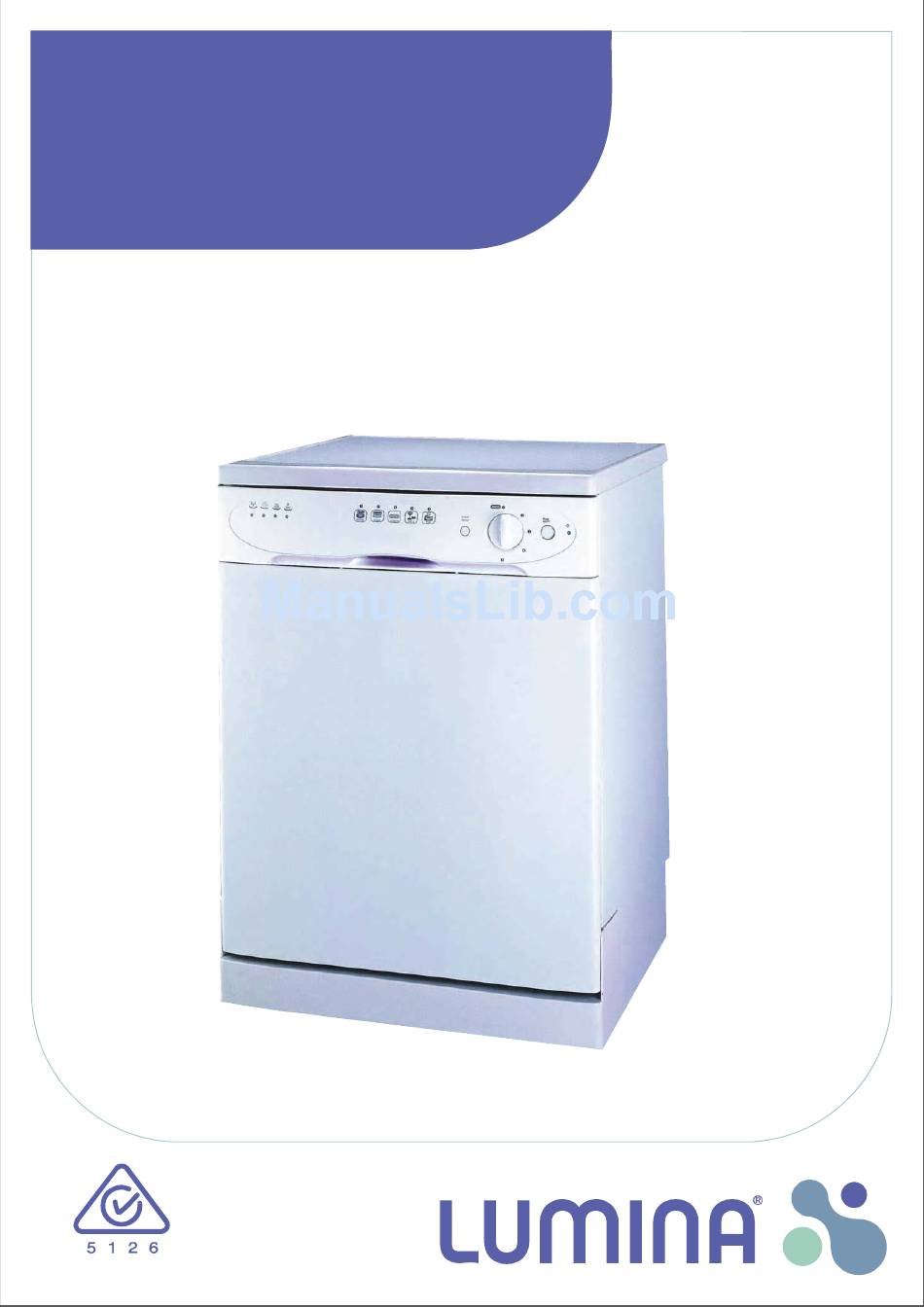

- Page 1 Model number:MDW0380 after sales support tel: 1300 726 642 This product must be installed by a licensed electrician or licensed plumber for the product warranty to be approved by the manufacturer.
- Page 2 Dishwasher What your 1 year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
-
Page 3: Table Of Contents
Dishwasher Introduction Table of Contents Safety Information ..... . 1 Safety Information Operating Instructions Read this Manual Control Panel ......2 Dishwasher Features . -
Page 4: Safety Information
Dishwasher Page 1 SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the basic precautions below: Do not place any heavy objects on, sit on or stand The appliance is not intended for use by young on the door and dish racks of the dishwasher. -
Page 5: Operating Instructions
DISHWASHER Page 2 OPERATING INSTRUCTIONS Control Panel I N T E N S I V E H E A V Y N O R MA L R A P I D S O A K 1 2 3 4 Pre-rinse light: C omes on during pre-rinse Start / Reset Button: Press this button to start or pause the dishwasher, the light will come on when starting. -
Page 6: Wash Cycle Table
Dishwasher Page 3 Wash Cycle Table Description Detergent Rinse Cycle Selection Cycle Program of Cycle P re/Main Wash Information Pre-wash For the heaviest soiled loads, -wash( 0 ºC such as pots, pans, casserole Wash (70 ) ºC Intensive dishes and dishes that have 5g/22 g Rinse been sitting with dried food... -
Page 7: Detergent
Dishwasher Page 4 Detergent Dispenser The dispenser must be refilled before the start of each wash cycle and following the instructions provided in the" Wash Cycle Table". This dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. -
Page 8: Rinse Aid
Dishwasher Page 5 Rinse Aid Dispenser Steps to fill rinse aid To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour rinse aid into the dispenser until full (approx. 140ml), being careful not to overfill Replace the cap by inserting it aligned with "open"... -
Page 9: Loading The Dishwasher
Dishwasher Page 6 Loading the Dishwasher For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and basket may vary from your model. cutlery Before and After Loading the Dishwasher Racks Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way: 1.Items such as cups, glasses, pots/pans, etc. -
Page 10: Folding Spikes
Dishwasher Page 7 Folding Spikes improve stacking of pots and pans, the spikes can be folded down. Loading the Lower Rack We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls. -
Page 11: Not Suitable For The Dishwasher
Dishwasher Page 8 Not Suitable for the Dishwasher The following should not be cleaned in the dishwasher: Wooden cutlery and utensils, oil will leach out and they will become discoloured Sensitive ornamental glasses, craft utensils and vases, special antique or irretrievable utensils.These ornaments are not dishwasher-proof. -
Page 12: Filtering System
Dishwasher Page 9 Filtering System For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain. -
Page 13: Cleaning The Door
Dishwasher Page 10 Cleaning the Door To clean the edge around the door, you should use only a soft damp cloth. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. -
Page 14: Installation Instructions
Dishwasher Page 11 INSTALLATION INSTRUCTIONS This product must be installed by a licensed electrician or licensed plumber for the product warranty to be approved by the manufacturer. Electricity Connection CAUTION , for personal safety: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING PRONG FROM THE POWER CORD. -
Page 15: Water Connection
Dishwasher Page 12 Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. -
Page 16: Technical Information
Dishwasher Page 13 Technical Information 1135 Height 850mm(adjustable+10mm) Width 600mm Depth 580mm Voltage connected load see rating label Water pressure 0.04-1.0MPa Hot water connection max 60℃ Power supply see rating label Capacity 12 place settings Support After Sales 1300 726 642... -
Page 17: Troubleshooting Tips
Dishwasher Page 14 TROUBLESHOOTING TIPS Before Calling for Service Troubleshooting Tips Review the charts on the following pages to identify solutions for common problems. Possible Causes Problem What To Do Dishwasher does Replace fuse or reset circuit breaker. Remove any other Fuse blown, or the not operate circuit breaker engaged... -
Page 18: Error Codes
Dishwasher Page 15 Before calling for Service Problem Possible Causes What To Do Cloudiness on Combination of soft Use less detergent if you have soft water and select the water and too much shortest cycle to wash the glassware. glassware detergent Yellow or brown film Tea or coffee stains...
