  • Page 1 Version 1.0...

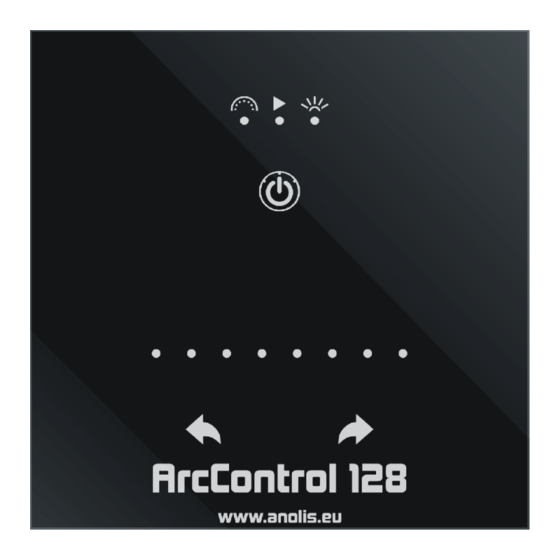

  • Page 2 • 32-bit ARM technology • Wall mountable • Programmable through the included USB cable and control software 2. ArcControl 128 exterior view COLOR MODE Holding the left or right button allows for direct access to any color. A single touch gives access to the basic colors.
  • Page 3 3. Installation 1. Mount an electrical box inside the wall The ArcControl 128 can be installed in a standard 60mm electrical backbox. You can insert the AC/DC adapter (if you use it) inside or outside the backbox. 2. Connect the wires DMX: Connect the DMX cable to the lighting receivers (Leds, Dimmers, Fixtures..)
  • Page 4 * the Colours of wires respond standard Patch cabel cat.5. with four twisted pairs Note: ArcPowers /K2 series do not allow to use 12V for supply of the ArcControl 128 (e.g. ArcPower 36/K2..). 3. Mount the interface on the wall First, plug the 2 connectors (green connector block).

  • Page 5: Technical Specifications

    Keypad dimensions: 86x86x10 mm Keypad weight: 130g IP rating: IP20 Ambient operating temperature: 0°C to 50°C Package: ArcControl 128, USB stick with software (ArcControl 128), USB cable, connector block Optional accessories: AC/DC adapter (No. 1305 1648) Available memory Channels Steps Specifications are subject to change without notice.
