Ice Maker - Bosch B26FT70SNS Repair Manual

7-5. Ice Maker

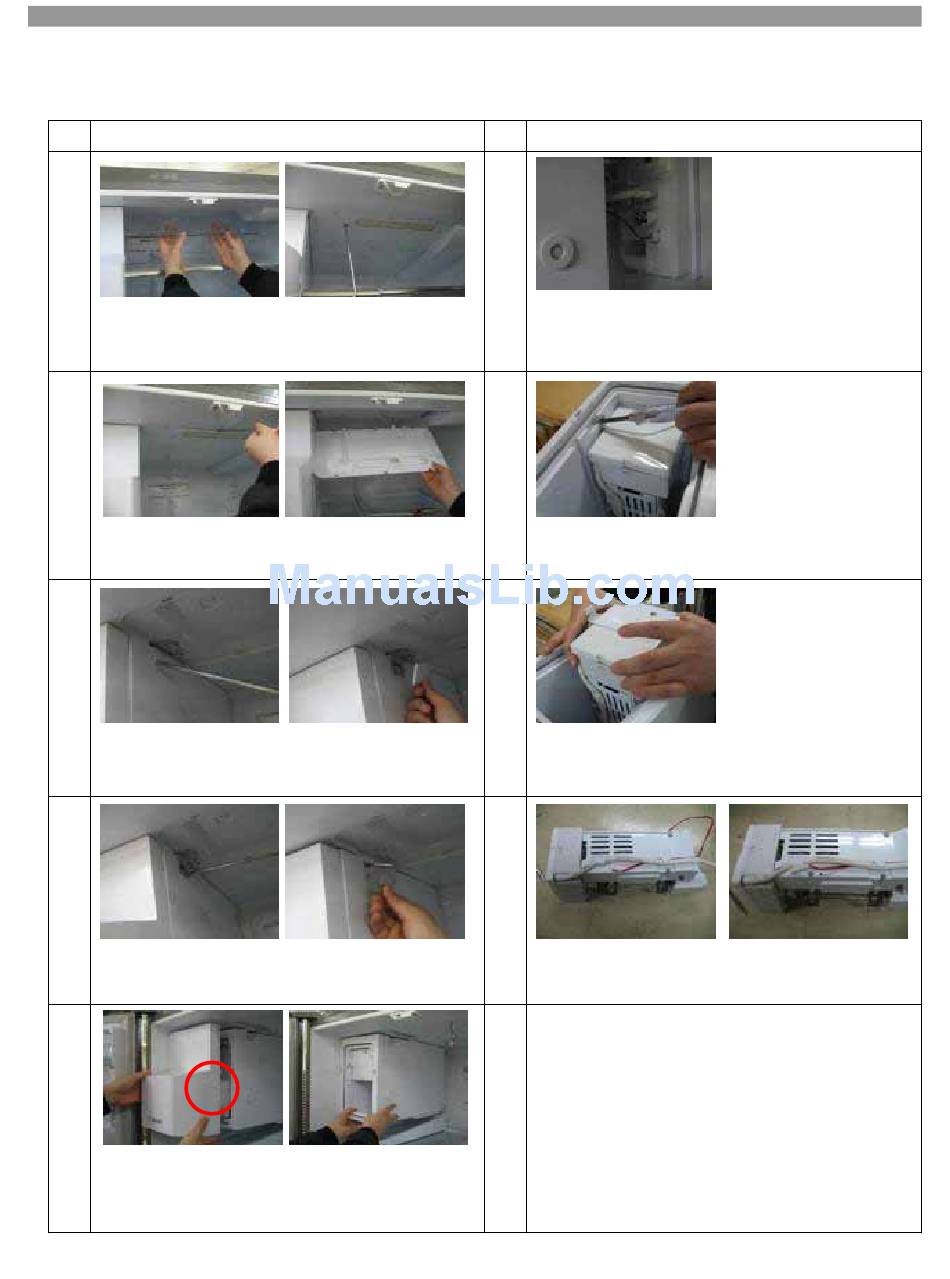

1) Disassembling procedure
Disassembling procedure
No
1
▷ Remove Window R Lamp
and 2 screws on top inner surface of R room.
2
▷ Disassemble Base F Lamp & PCB housing..
3
▷Remove Cover Bracker on side of Ice Maker.
4
▷Remove 4 screw on side of Ice Maker
& top of Line. And remove Bracket I/BOX *T
5
▷ Push Lock I/Crusher B and pull forward
Case I/Crusher AS and separate
Case I/Crusher AS from Box I/Maker AS.
* Follow the reverse order when assembling.
Disassembling procedure
NO
6
▷Disassemble Housing(4ea).
7
▷Unscrew (1 ea) on side inner left surface
of Box Ice Maker.
8
▷ Pull Forward and Remove Ice Maker AS.
Attention on back side wires.
9
▷Remove 2 Cable tie on ice sensor.
And remove ice sensor from Ice Maker.
