Summary of Contents for Fogtech VP-1000

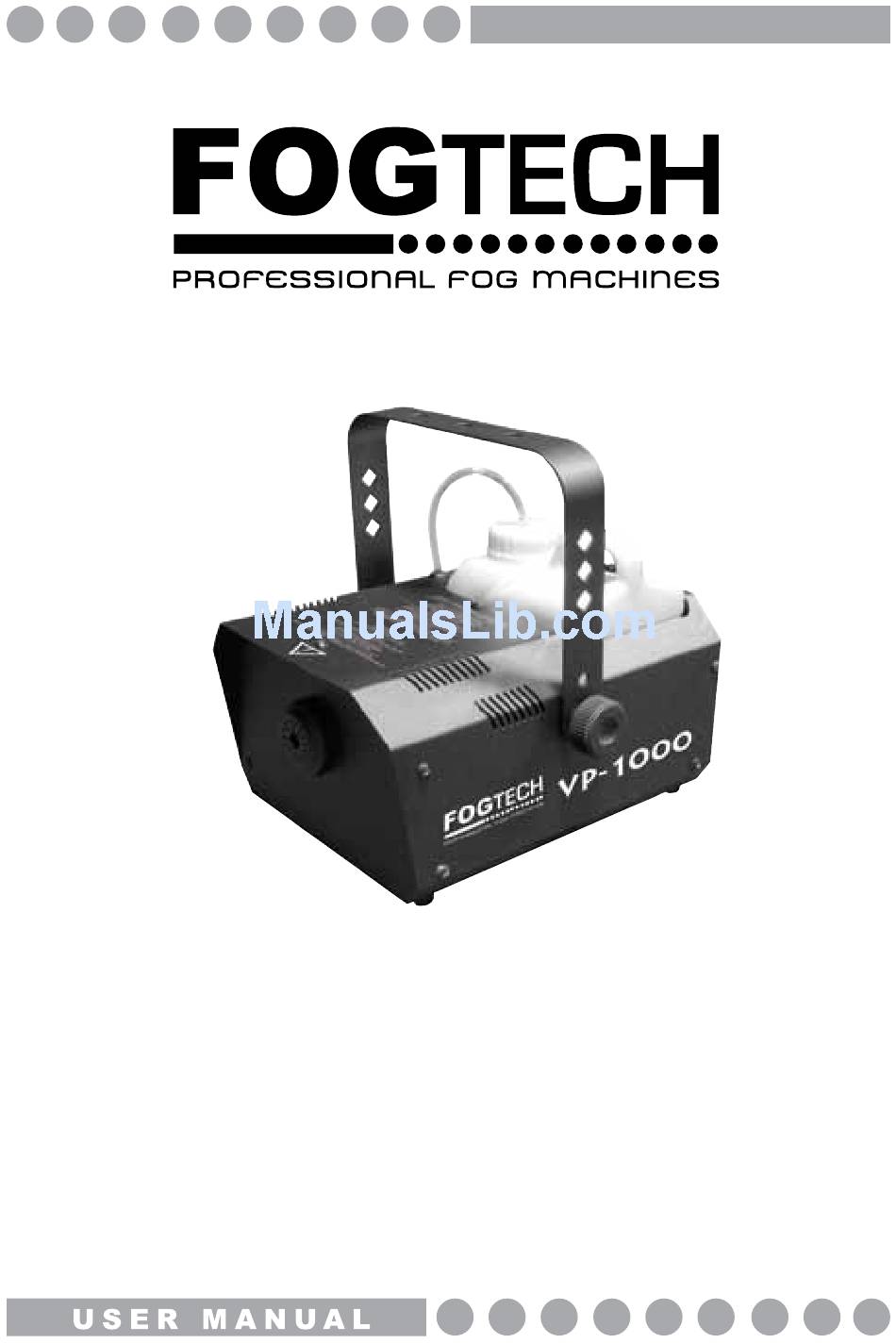

- Page 1 VP-1000 Order code: FOG20...
-
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! -
Page 3: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 O V E R V I E W Overview: VP-1000 Identification: A, Bracket B, Fog fluid container C, Indicator lamp D, Remote socket E, IEC power socket F, Fuse G, Bracket knob H, Low fluid indicator (front) LC-1 Remote Controller Once the fog machine is powered up, the Red LED on this remote will illuminate.
-
Page 5: Starting Operation
O P E R A T I O N STARTING OPERATION The fluid tank of the unit needs to be filled with smoke fluid before switching on. Always disconnect it from the mains supply as fluid could be spilled. Only use quality smoke fluids recommended by your dealer. We recommend high quality smoke fluids. -
Page 6: Operation
O P E R A T I O N The operator must always make sure that the safety-relating and machine-technical installations are approved by an expert before operation for the first time and after any further changes are made. The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert after every four years in the form of an acceptance test. -
Page 7: Cleaning And Maintenance
O P E R A T I O N OPERATION Switch the unit ON via the power switch. Connect the remote control to the Remote Control socket. The Red indicator on the remote control will illuminate. After the units warm up time the Green indicator turns ON and the unit is ready for operation. -
Page 8: Technical Specifications
S P E C I F I C A T I O N S TECHNICAL SPECIFICATIONS VP-1000 Smoke output 7,000 cu.ft per minute Warm up time approx. 8 min Tank capacity 2.5 L Power consumption 1000W Power supply 240V Dimensions... - Page 9 w w w . p r o l i g h t . c o . u k...
