Summary of Contents for Maximum 054-0252-2
- Page 1 30 L (8 U.S. Gallons) Stainless Steel Wet/Dry Vacuum with High Performance Motor Model no. 054-0252-2 IMPORTANT: INSTRUCTION Please read this manual carefully before using MANUAL this product, and save it for reference.
- Page 2 TABLE OF CONTENTS PAGE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES KEY PARTS DIAGRAM GENERAL ASSEMBLY INSTRUCTIONS DRY VACUUM OPERATION WET VACUUM OPERATION BLOWER OPERATION MAINTENANCE CARTRIDGE FILTER TROUBLESHOOTING ACCESSORIES EXPLODED VIEW PARTS LIST WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682.
- Page 3 054-0252-2 | contact us 1-888-670-6682 IMPORTANT SAFETY INSTRUCTIONS SPECIFICATIONS Tank size: 30 L (8 U.S. gallons / 6 5/8 Imperial gallons) Household Type Peak horsepower: SAVE THIS MANUAL Power: 120 V, 60 Hz, 11 A FOR FUTURE REFERENCE.
- Page 4 054-0252-2 | contact us 1-888-670-6682 • Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM. cord, or pull the cord around sharp edges or corners.
- Page 5 054-0252-2 | contact us 1-888-670-6682 Ensure that the power cord is disconnected from the power outlet。 Undo the clasps. Lift the top section off the tank. No. Description No. Description Handle 12 Floor nozzle 2 Safety float valve...
- Page 6 054-0252-2 | contact us 1-888-670-6682 Turn the container upside down. Insert For wet vacuum cleaning, install the the two casters into the sockets on the supplied foam filter. bottom of the base and apply pressure until casters snap into place.
- Page 7 054-0252-2 | contact us 1-888-670-6682 Insert the larger end of the hose into OPERATING INSTRUCTIONS – DRY VACUUMING the front inlet on the tank and lock it in place. Push the required attachment on Ensure that the power cord is to the free end of the hose or extension.
- Page 8 The machine is fitted with a float valve that stops the suction when hose. the tank reaches its maximum capacity. An increase in motor speed will be noticed. When this occurs, turn off the machine, disconnect from the power supply, remove the head from the tank and empty the liquid into a suitable receptacle or drain.
- Page 9 054-0252-2 | contact us 1-888-670-6682 This Wet/Dry Vacuum has blowing capabilities. To use the blower feature follow the Ensure that the power cord is instructions listed. disconnected from the outlet. Insert the large end of the hose into the blower connection in the top of the motor housing.
- Page 10 054-0252-2 | contact us 1-888-670-6682 Clean the foam filter by washing it with MAINTENANCE a mild soapy solution. Installation and cleaning Slide cartridge filter down over filter cage. Check the hose, attachments and the power cord to ensure that they have not been damaged.
- Page 11 054-0252-2 | contact us 1-888-670-6682 To remove filter for cleaning again, hold Problem Possible Causes Corrective Action lid assembly with one hand and turn Wet/Dry Vacuum will not No power supply. Check power supply: cord, retainer counter-clockwise. operate.
- Page 12 054-0252-2 | contact us 1-888-670-6682 Additional accessories for your Maximum Wet/Dry Vacuum are available. Consumables 054-0035 Foam Sleeve / Wet Filter 054-0148 Dry Reusable Filter 054-0150 Household Collector Bag 054-0212 Fine Dust High Efficiency Collector Bag 054-0255 Fine Cartridge Filter...
- Page 13 054-0252-2 | contact us 1-888-670-6682 3-Year Limited Warranty Description DAYS Wire Hose Storage x 2 This MAXIMUM product is guaranteed for a period of 3 years from the JOURS Power Head Assembly date of original retail purchase against defects in workmanship and SATISFACTION...
- Page 14 The warranties contained In addition to the 3-Year Limited Warranty, this MAXIMUM product is covered by our: herein are not transferable and are given only to the purchaser. FURTHER, THE...
Need help?
Do you have a question about the 054-0252-2 and is the answer not in the manual?
Questions and answers
how to install dust bag
To install the dust bag for Maximum part number 054-0252-2:
1. Ensure the power cord is unplugged from the outlet.
2. Make sure the cartridge filter is completely mounted and inserted all the way.
3. Open the vacuum by removing the top section of the tank.
4. Place the dust bag inside the tank and fit its opening securely over the inlet port inside the tank.
5. Replace the top section of the tank and secure it using the clasps.
6. Do not use the dust bag for liquid vacuuming.
This answer is automatically generated
I would like to purchase a replacement latch assembly for Maximum wet dry shop vac manual 30 gallon 054-0252-2
The manual does not specify where to purchase a replacement latch assembly. However, it provides a toll-free helpline at 1-888-670-6682 for inquiries about missing or damaged parts. You can contact this number for assistance in obtaining a replacement latch assembly.
This answer is automatically generated

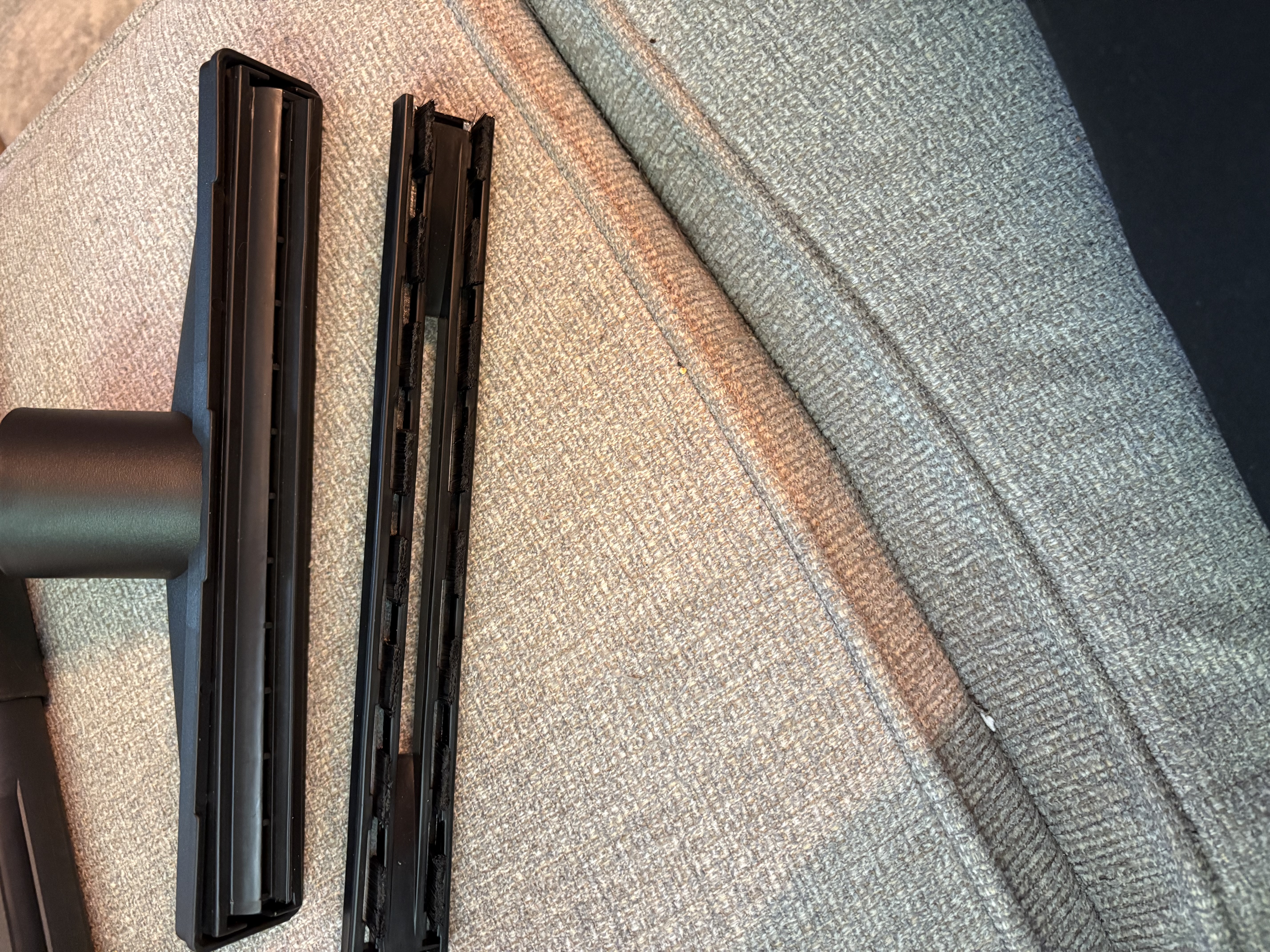

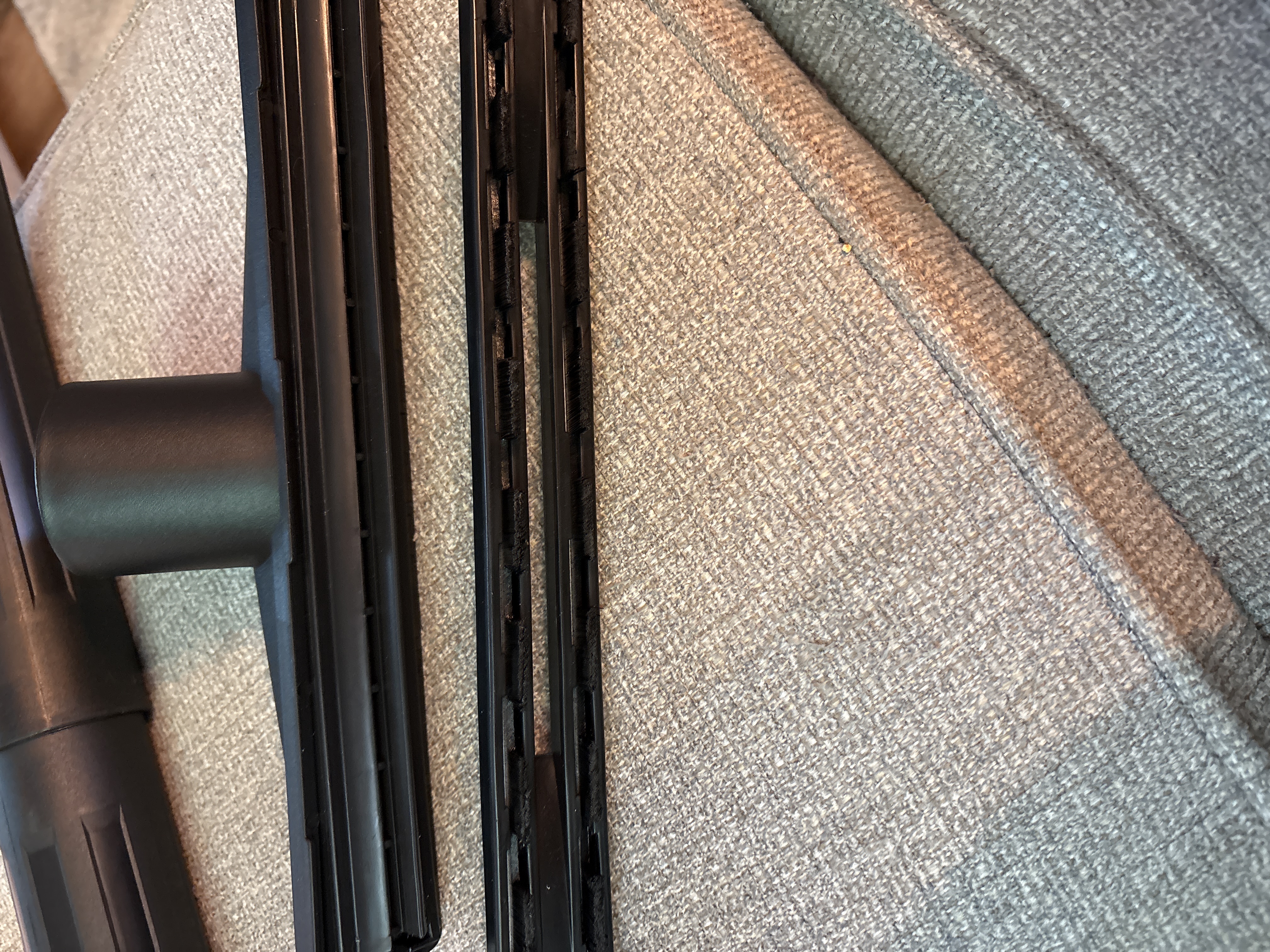

How do you put together floor brush it was in 2 parts
Floor brush comes in 2 parts how do you put it together
the manual does not show how to install the dust bag
