Summary of Contents for Megasat Wireless HD Sender Comfort

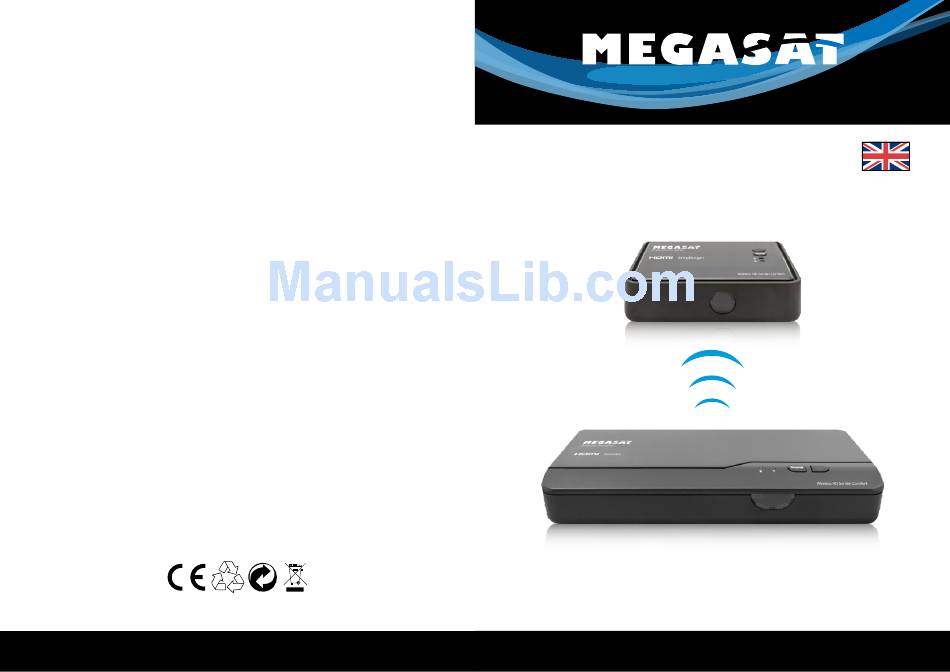

- Page 1 Brillantes Fernsehen Brillantes Fernsehen Wireless HD Sender Comfort English Stand: v1.0 Januar 2014 // Technische Änderungen, Druckfehler und Irrtümer vorbehalten. Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv User manual...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions This device has been designed and manufactured to satisfy the international safety stan- dards. Please read the following safety precautions carefully before operating this device. Main Supply: Before operating, please check the units operating voltage is 100~240V AC 50/60Hz. 1. -
Page 3: Introduction
Introduction Overview The Wireless HD Sender Comfort is a Full HD wireless transmission device. Transmitter top view This solution delivers uncompressed 1080p Full HD video and audio content to your exis- Source Selection Button ting HDTV set wirelessly. It operates the transmission in 4.9 GHz ~ 5.9 GHz frequencies and it... - Page 4 Overview Overview Receiver top view Remote control Power Button with LED indicator POWER Button Press to turn the receiver on and off. The Press to turn the Transmitter & Receiver on/off. When both indicator in the power button lights up of TX &...
-
Page 5: Installation
Installation Installation Step 1: Setup the Transmitter Step 2: Setup the Receiver Connect two High-Definition Audio/Video Sources to the transmitter HDTV set Connection with RECEIVER 1. Connect the HDMI cable to the HDMI OUT jack of the receiver and to your HDTV set (or an HD projector). -
Page 6: Step 3: Setup The Blaster And Ir Sensor
Installation Installation Step 3: Setup the Blaster and IR Sensor Step 4: Boot up the Transmitter and Receiver If necessary, connect the Infrared (IR) blaster (or sensor) Extender cable. Users can point 1. Place the two AAA batteries into the remote control. hand-held remote control of your High Definition AV equipment at the receiver or the HDTV set to operate the source devices, not exceeding the distance of 66 feet at Line- of-sight. - Page 7 Installation Installation 1. During the warm-up, the POWER LED will blink in blue until the signal link between the Status Item / Mode Power LED Status LED OSD Display TRANSMITTER and the RECEIVER is established. It will take 15 ~ 20 seconds for system Description boot up successfully.
-
Page 8: Step 5: Mounting The Devices To The Wall
Installation Installation • If you have more than one pair of WHDI DEVICE, each transmitter and receiver should Step 5: Mounting the devices to the wall be at least 6.5 feet away from one another. If both the transmitter and the receiver exist in the same room, the suggested the distance between the two is 6.5 feet minimum. -
Page 9: Troubleshooting
Troubleshooting Supported Resolution If the SOURCE LED continues to blink in blue (slower than “no signal” mode); OSD dis- Problem Solution play: , and there is no video displayed or the video quality suffers, it indicates that the The device power •... -
Page 10: Specifications
Audio Bitrate Support Declaration of Conformity • Digital Audio from HDMI inputs: Up to 6Mbit/s bit-rate support. This complies with the following directives / standards is confirmed: • Support AC3 and DTS. Electromagnetic Compatibility Directive 2004/108/EG • 2-channel PCM: 16~24 bits audio sample with 32~96KHz sampling rate as below: EN 55013: 2001 + A1: 2003 + A2: 2006 EN 55020: 2007 EN 61000-3-2:2006 + A1:2009 + A2:2009... - Page 11 Status: v1.0 January 2014 // Technical changes, misprint and errors reserved. Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv...
