LS&S 481077 User Manual

Myweigh phoenix talking scale
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

MyWeigh Phoenix Talking Scale User Manual
LS&S, LLC Product Number 481077

Technical specifications:

Weighing capacity: 150kg / 330lb
Minimum weighing limit: 2kg / 4.4 lb
Weighing graduation: 0.1kg / 0.2 lb
Weighing deviation: ± (1%+1d)
Optimum temperature range: 20°C ± 15°C
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 481077 and is the answer not in the manual?

Questions and answers

Summary of Contents for LS&S 481077

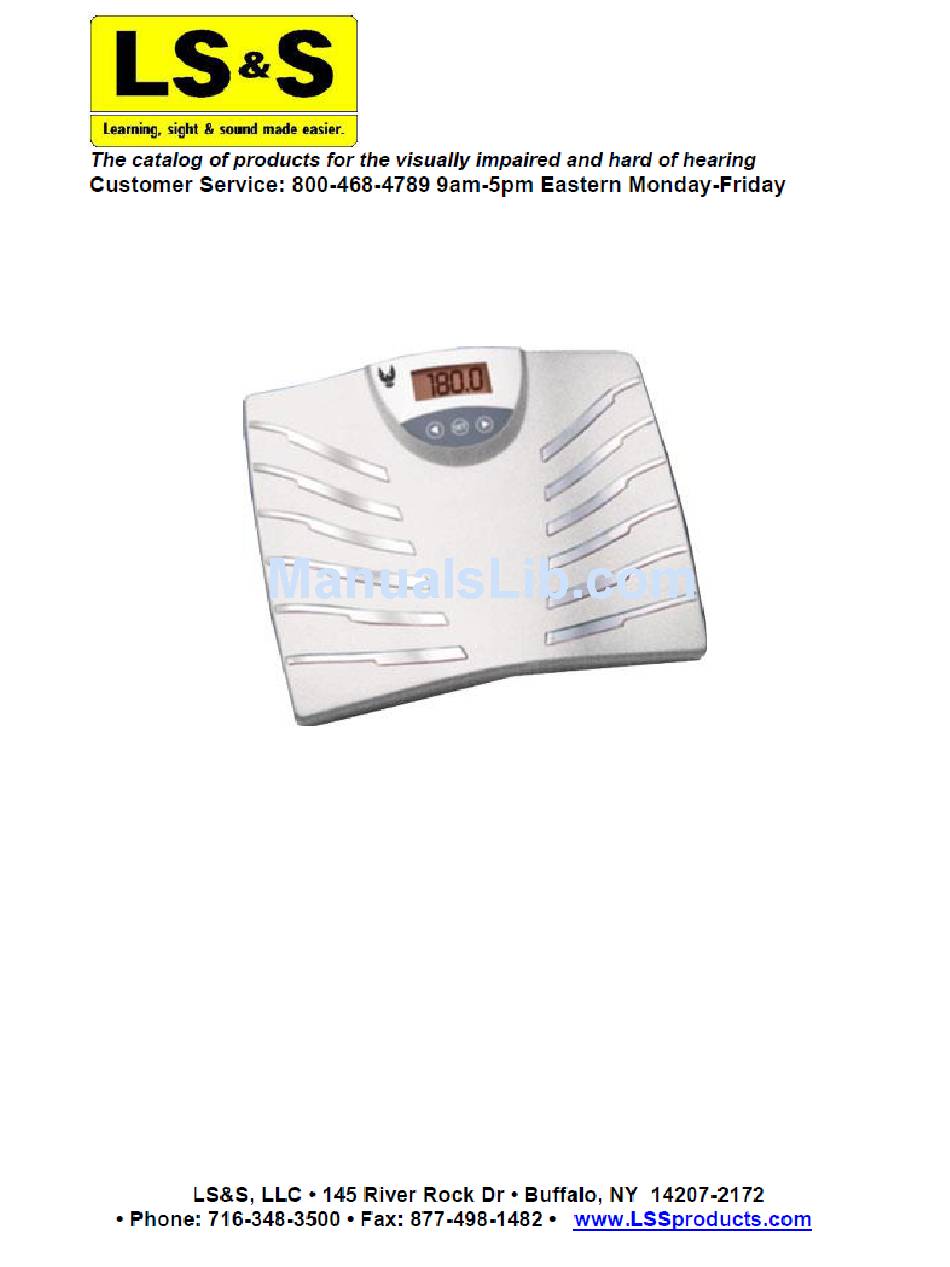

  • Page 1 MyWeigh Phoenix Talking Scale User Manual LS&S, LLC Product Number 481077 Technical specifications: Weighing capacity: 150kg / 330lb Minimum weighing limit: 2kg / 4.4 lb Weighing graduation: 0.1kg / 0.2 lb Weighing deviation: ± (1%+1d) Optimum temperature range: 20°C ± 15°C...

  • Page 2: Operation Instructions

    Operation instructions: 1.Inserting batteries: Insert a 9V battery into the battery compartment on the bottom (underside) of the scale. 2. Weighing yourself: a. Step onto the measurement platform. The scale will say “Hello”. Now step off the platform and wait a few moments b.

  • Page 3: Troubleshooting

    inaccurate readings or other errors. When the battery runs very low, the warning icon will appear on the display. When this happens, be sure to replace the battery immediately on the underside of the scale. When over-loaded, “FFFF” will be displayed. Use the unit on hard, flat, dry, level and secure surface only.
  • Page 4 * Install a new battery * Try using the scale on a different surface (non-carpeted). This scale must only be used on a hard surface such as tile, wood linoleum or short carpet * Be sure you're standing very still when on the scale * Low Batteries &...
