Ultrak HEM Series Installation Instructions Manual

10- and 12-inch camera enclosures with optional sunshield, heater and blower kits and mounting bracket

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

HEM Series

10- AND 12-INCH

CAMERA

ENCLOSURES

WITH OPTIONAL

SUNSHIELD,

HEATER AND

BLOWER KITS

AND MOUNTING

BRACKET

INSTALLATION

INSTRUCTIONS

Worldwide Support Center

1301 Waters Ridge Drive Lewisville, TX 75057

(800) 796-2288 (972) 353-6400 FAX (972) 353-6670

Table of Contents

Need help?

Do you have a question about the HEM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ultrak HEM Series

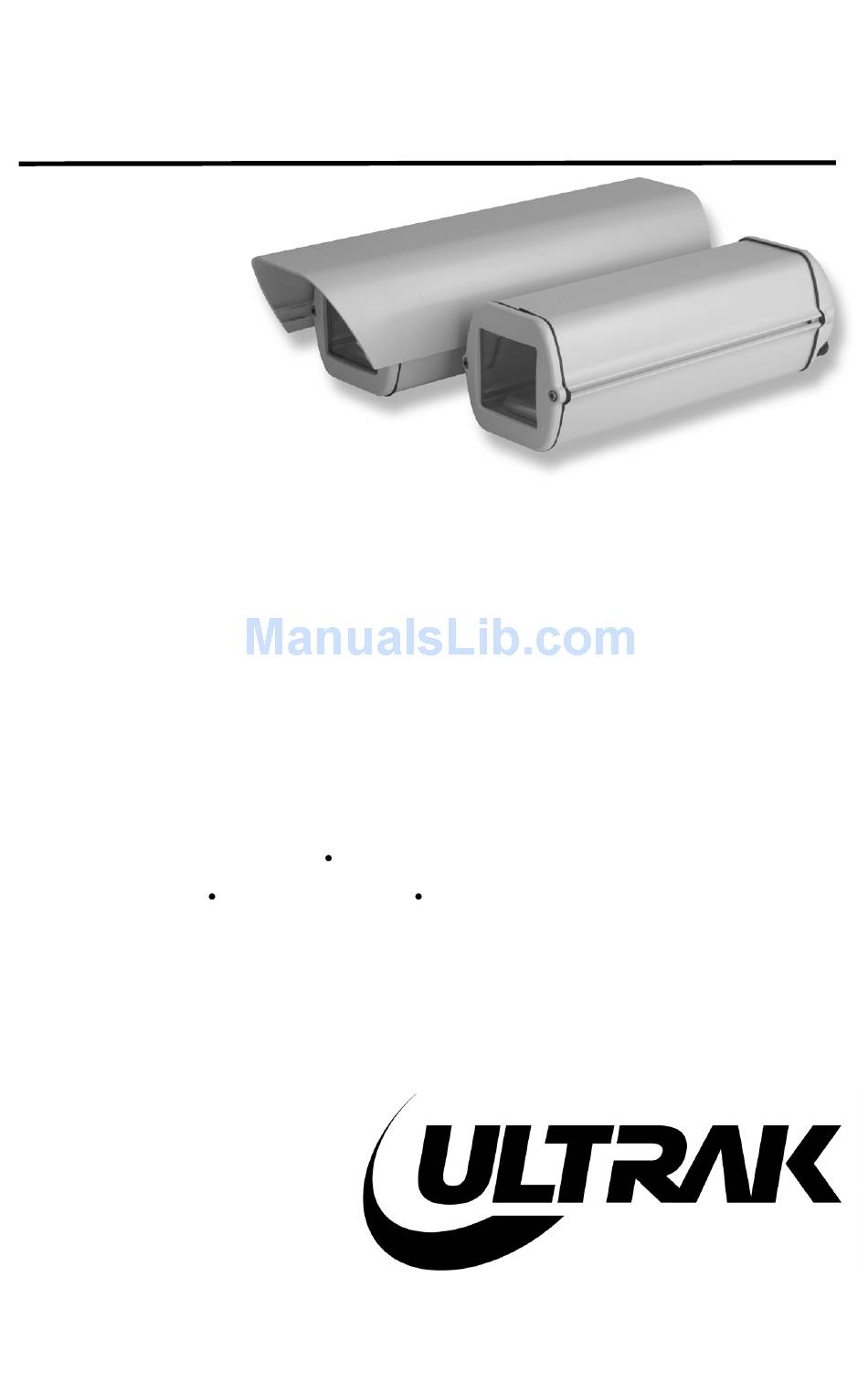

Page 1 HEM Series 10- AND 12-INCH CAMERA ENCLOSURES WITH OPTIONAL SUNSHIELD, HEATER AND BLOWER KITS AND MOUNTING BRACKET INSTALLATION INSTRUCTIONS Worldwide Support Center 1301 Waters Ridge Drive Lewisville, TX 75057 (800) 796-2288 (972) 353-6400 FAX (972) 353-6670...
Page 2 (800) 796-2288 ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM ULTRAK. THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF.
Page 3: Table Of Contents
HEM10-BK WITH HEM10 OR HEM12.........2 HEM10-HK/HEM12-HK HEATER KIT INSTALLATION ....4 HEM10-BK BLOWER KIT WITH HEM10-HK/HEM12-HK HEATER KIT INSTALLATION ..........5 CAMERA MOUNTING FOR HEM SERIES HOUSINGS....7 HEM10-SS/HEM 12-SS SUNSHIELD INSTALLATION ....9 UL-WBM & UL-WB+BJ WALL BRACKET MOUNTING.....10 SECTION 3. SPECIFICATIONS HEM HOUSING SPECIFICATIONS...........11 HEM10-BK BLOWER SPECIFICATIONS........12...
Page 4: Section 1. Hem Camera Housing Series Introduction
SECTION 1 HEM CAMERA HOUSING SERIES INTRODUCTION PURPOSE The HEM10 and HEM12 camera housing series are stylishly and functionally designed enclosures for 1/2” and 1/3” CCD cameras with fixed focal length or small zoom lenses. This manual describes how to assemble the housing and its optional components, affix the camera, and mount the assembly to a suitable surface.
Page 5: Section 2. Housing Installation Instructions
SECTION 2 HOUSING INSTALLATION INSTRUCTIONS HEM10-BK BLOWER KIT INSTALLATION (without heater) This section contains comprehensive instructions for installing the blower kit into the HEM10, HEM10-01, HEM12 or HEM12-01 camera housing. The HEM10-BK is compatible in both the HEM10 and HEM12 series. If you are also installing the heater, please skip to page 5 for comprehensive instructions.
Page 6 FIGURE 3 Vac, 50 VA. (See Figure 3) 11. To mount your camera, consult the section Camera Mounting for HEM Series Housings on page 8. Begin with step 5. Then see UL-WBM & UL-WB+BJ Wall Bracket Mounting on page 10.
Page 7: Hem10-Hk/Hem12-Hk Heater Kit Installation
HEM10-HK/HEM12-HK HEATER KIT INSTALLATION (without blower) This section contains instructions for installing the heater kit for the HEM10, HEM10-01, HEM12 and HEM12-01 camera housings. If you are also installing the blower unit, please skip to page 5 for comprehensive instructions. While this heater kit is sold as an add-on component for the HEM10, HEM10-01, HEM12 and HEM12-01, it is also available in a preassembled package.
Page 8: Hem10-Bk Blower Kit With Hem10-Hk/Hem12-Hk Heater Kit Installation
24 Vac, 50 VA. (See Figure 6) 7. To mount your camera, consult the section Camera Mounting for HEM Series Housings on page 8. Begin with step 5. Then see UL-WBM & UL-WB+BJ Wall Bracket Mounting on page 10.
Page 9 FIGURE 7 2. Remove the two Phillips panhead screws located midway up the rear of the housing unit. Retain the screws and their black rubber gaskets, which were left in the holes on the rear of the housing. (See Figure 7) 3.
Page 10: Camera Mounting For Hem Series Housings
CAMERA MOUNTING FOR HEM SERIES HOUSINGS This section contains comprehensive instructions for installing a camera into any of the HEM series housings. If you are installing optional equipment, such as a heater/blower kit, please consult the previous section in this manual that is appropriate and refer to this section when instructed to do so.
Page 11 FIGURE 10 2. Loosen the two Phillips panhead screws located midway up the rear of the housing unit until they release the body of the housing. Leave the screws intact in the rear portion of the housing. (See Figure 10) 3.
Page 12: Hem10-Ss/Hem 12-Ss Sunshield Installation
HEM10-SS/ HEM12-SS SUNSHIELD INSTALLATION This section contains instructions for installing the sunshield for the HEM series housing. While this is sold as an add-on component for the HEM10 and HEM12, it is also available in a preassembled package. The HEM10-01 and HEM12-01 are 10- and 12-inch camera housings, respectively, and include a sunshield.
Page 13: Ul-Wbm & Ul-Wb+Bj Wall Bracket Mounting
UL-WBM & UL-WB+BJ WALL BRACKET MOUNTING This section contains information for mounting the recommended UL-WBM wall bracket, which is sold separately from HEM series camera housings (The UL-WB+BJ is also compatible). Be sure that the camera and the optional components have been installed into the housing properly before proceeding to mount the assembly.
Page 14: Section 3. Specifications
SECTION 3 SPECIFICATIONS HEM HOUSING SPECIFICATIONS Dimensions (WxHxL): HEM10 4.1 x 3.8 x 10.23 in (105 x 97 x 260 mm) HEM12 4.1 x 3.8 x 12.6 in (105 x 97 x 320 mm) Weight: HEM10 2.7 lbs. (1.2 kg) HEM12 3.0 lbs.
Page 15: Hem10-Bk Blower Specifications
HEM12-HK Heater Kit for HEM12 HEM10-BK Blower Kit for HEM10 and HEM12 Environment Indoor/Outdoor Recommended Mounts UL-WB+BJ & UL-WBM Operating Temperature C (-4 F) to 60 C (140 HEM10-BK BLOWER SPECIFICATIONS Power Supply 24Vac Power Consumption 3.4W Blower ON C > 35 C +/- 3 F >...
Page 16: Ul-Wbm & Ul-Wb+Bj Wall Mount Specifications
UL-WBM & UL-WB+BJ WALL MOUNT SPECIFICATIONS Dimensions (WxHxL): UL-WBM 2.8 x 4.5 x 8.9 in. (70 x 115 x 226 mm) UL-WB+BJ 2.8 x 4.5 x 11.2 in. (70 x 115 x 284 mm) Weight: UL-WBM 1.1 lbs. (0.5 kg) UL-WB+BJ 1.4 lbs.
