Visionary Solutions, Inc.

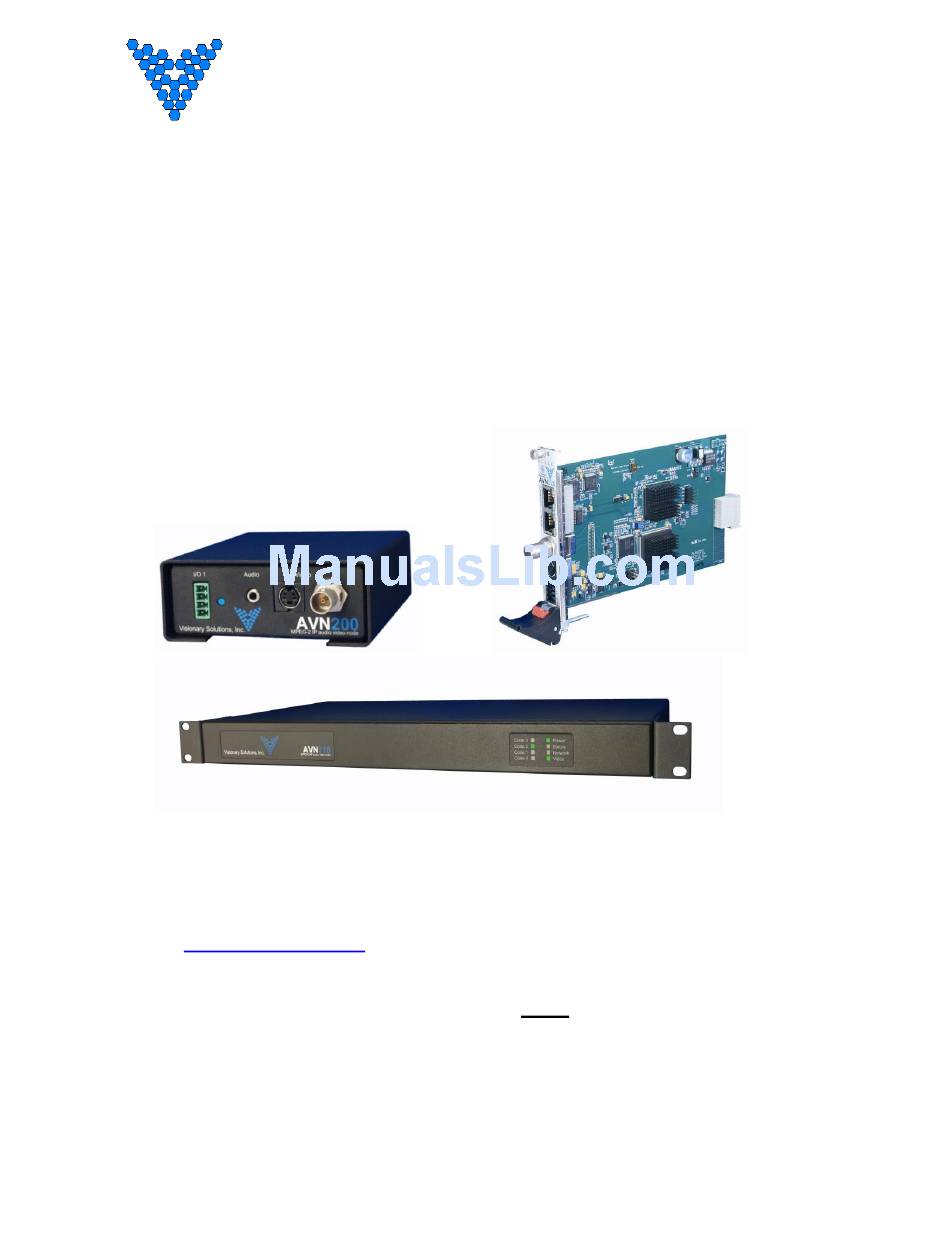

AVN2XX Quick Start
(AVN200, AVN210, and AVN220)
©2009 Visionary Solutions, Inc. All rights reserved.
Please visit the support section of our website at
www.vsicam.com
downloads.
This is a Quick Start Guide only and
Current user manuals are available online.
April, 2013
Revision: 1.0.3
2060 Alameda Padre Serra, Suite 100∙ Santa Barbara, CA 93103
Tel: (805) 845-8900 ∙ Fax: (805) 845-8889 www.vsicam.com
Guide
AVN200
for manuals, other documentation, and software
NOT
AVN220
AVN210
the full User's Manual.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Visionary Solutions AVN200
Summary of Contents for Visionary Solutions AVN200
- Page 1 AVN2XX Quick Start Guide (AVN200, AVN210, and AVN220) AVN200 AVN220 AVN210 ©2009 Visionary Solutions, Inc. All rights reserved. Please visit the support section of our website at www.vsicam.com for manuals, other documentation, and software downloads. This is a Quick Start Guide only and the full User’s Manual.
- Page 2 4. Connect the power cable to the AVN2XX Power Supply connector and power on the AVN2XX. In the case of the AVN220 (blade) the power is supplied via the MPPXXX chassis. Input Connector Diagrams by Device Type AVN200 Front Panel Diagram: 2060 Alameda Padre Serra, Suite 100∙ Santa Barbara, CA 93103...
- Page 3 AVN2XX Quick Start Guide AVN200 Rear Panel Diagram: AVN210 Front Panel Diagram: AVN210 Back Panel Diagram: AVN220 Panel Diagram: 2060 Alameda Padre Serra, Suite 100∙ Santa Barbara, CA 93103 Tel: (805) 845-8900 ∙ Fax: (805) 845-8889 www.vsicam.com...
- Page 4 3. What is the subnet mask of your network? (e.g., 255.255.255.0) 4. What is the default gateway address on your network? (e.g., 192.168.1.1) 5. What is an available IP address we can assign to the AVN200 unit? (e.g., 192.168.1.100) 6. Connect the Null Modem cable between the RS-232 port (serial on the AVN220) of the AVN2XX and a COMM port on your PC (typically the COM1 port).
- Page 5 AVN2XX Quick Start Guide Turn off DHCP. Select the “Use DHCP” option, then press ENTER. Type "no" at the prompt then press ENTER again. Once DHCP is turned off you will want to modify the following options: IP Address, Netmask and Gateway.
- Page 6 AVN2XX Quick Start Guide a. IP Address, Netmask, and Gateway should already be configured. b. Destination IP: This setting controls where the encoder will send the stream and is therefore a critical component to successful streaming. The destination IP address can either be a Unicast address (single point/viewer) or Multicast (many viewers).
- Page 7 AVN2XX Quick Start Guide stream's complete destination address. The decoder, whether hardware or software, will need to know both the Destination IP address and the Destination Port number to successfully find and decode the stream. There is a default port generated based upon the IP address, or you can assign the port number “1234”...
-
Page 8: Unicast And Multicast Transmissions Over The Network
AVN2XX Quick Start Guide For instructions on configuring AmiNet hardware decoders for use with the AVN2XX, see the “Amino and AVN Configuration Manual” ( link here ) or at the following URL: http://www.vsicam.com/core/__downloads/Amino_140_VSI_Configuration_Manual.pdf 2. VLC Media Player A. To download the free software decoder go to http://www.videolan.org/ and get the VLC media player (current version). - Page 9 AVN2XX Quick Start Guide traffic on your network. If your backbone switch supports Internet Group Messaging Protocol (IGMP) snooping, it allows the core of your network to ignore the traffic streams that Multicasting may generate. Safety and Compliance Information 1. Unintended use of this product, or use with non-VSI listed components, is forbidden and violates safety approvals.
