echoflex
Powered by ETC

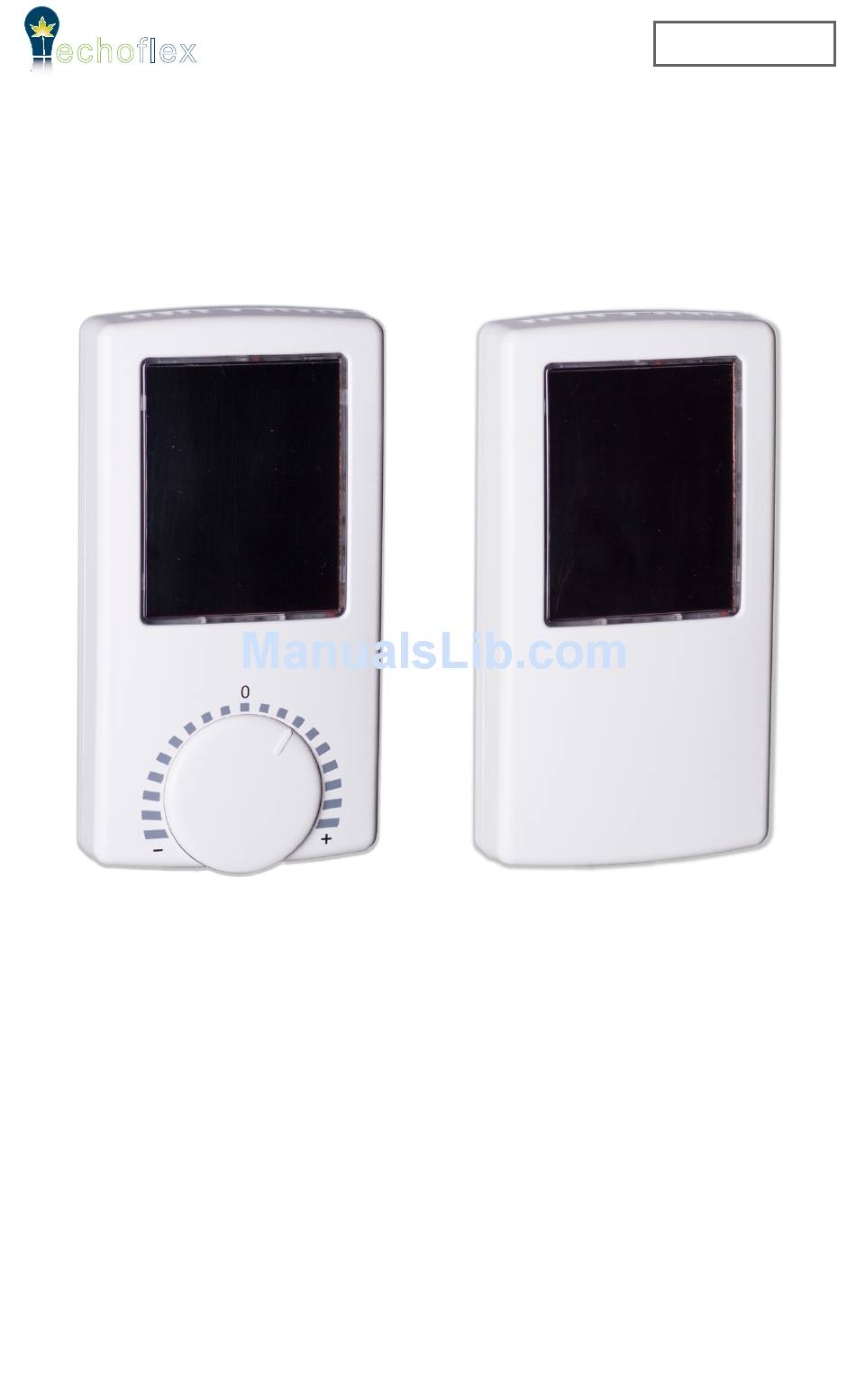

Resonate Wireless Temperature Sensor
This guide covers all Resonate Temperature Sensor models.
The Resonate temperature sensor product family includes:
RTS-1T-nW
RTS-1H-nW
RTS-1TS-nW,
RTS-2HS-nW
The character n is replaced with U for 902MHz, C for 315MHz, Y for 868MHz and J for
928 MHz radios.
The package includes the temperature sensor and installation guide.
NOTE: The RTS is a solar powered device that absorbs solar energy storing it for use during low
light periods. Before assigning the RTS device to a receiver/ controller, the device should be
exposed to a good light source for a minimum of 2 hours.
INSTALLATION GUIDE
Temperature sensor
Temperature and relative humidity sensor
Temperature sensor with temperature set point
Temperature and humidity sensor with temperature set point,
fan speed and occupancy button
RTS
Advertisement
Table of Contents
Related Manuals for echoflex RTS-1T-nW
Summary of Contents for echoflex RTS-1T-nW
- Page 1 Powered by ETC Resonate Wireless Temperature Sensor INSTALLATION GUIDE This guide covers all Resonate Temperature Sensor models. The Resonate temperature sensor product family includes: RTS-1T-nW Temperature sensor RTS-1H-nW Temperature and relative humidity sensor RTS-1TS-nW, Temperature sensor with temperature set point RTS-2HS-nW Temperature and humidity sensor with temperature set point,...
- Page 2 Page Intentionally Left Blank...
- Page 3 Temperature Sensor Description The temperature sensor (also referred to as the sensor in this guide) is a wireless, energy harvesting sensor that monitors room temperature in the range of 0-40°C (32° - 104°F) and relative humidity in the range of 0-100% . The sensor is intended for indoor use only. Some models have a temperature set point knob and/or a fan speed slide switch. These options provide the user an interface to manually adjust how the temperature control operates. A button on the lower right edge of the sensor body can be used to invoke an occupancy event (for RTS-2HS models) or to go into test mode (when the button is held down, see “Test Operating Modes”).
- Page 4 Occupancy Button - (RTS-2HS models only) Users can override a room occupancy state by pressing the occupancy button on the lower right edge of the sensor. LED Operation - LEDs are on the right side of the solar panel. The red LED will flash when the Link or Occupancy button is pressed. See Test Operating Modes for further LED information. Transmitting Values - The temperature sensor will transmit a telegram when: •...
- Page 5 within range of the temperature sensor to be linked. The sensor is a solar powered device that absorbs energy through a solar panel storing it for use during low light periods. Before assigning the sensor to a receiver/controller, the device must be exposed to a good light source for a minimum of 2 hours, or install the optional start assist battery (not supplied).
- Page 6 released the test mode button, place the sensor under a lamp with at least 100 foot- candles (1000 lux) for 1 hour before retrying. LIGHT LEVEL TEST TABLE The green LED will blink according to the energy produced by the solar cell Blinks Foot Candles Time to Fully Charge Discharge time < 15 < 1.4 below operating level 15-50 1.4 - 4.6 min operating level 50-100...
- Page 7 Installing Wireless Devices Careful planning is needed when locating the receivers and transmitters based on the construction materials in the space and possibility of tenant’s furniture disrupting the transmissions. The temperature sensor should be installed in the space where the receiver is mounted and connected to the temperature control equipment however the signal will travel through material barriers. Refer to the tables below for range considerations with building materials that reduce the radio signal power. Material Attenuation Wood...
- Page 8 ISO 9001: (only 928 MHz and 315 MHz models that bear a MIC mark) Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device is granted pursuant to the Japanese Radio Law ( and the Japanese Telecommunications Business Law ( ) This device should not be modified (otherwise the granted designation number will become invalid) Copyright 2013-2016 Echoflex Solutions, Inc. | Specifications subject to change without notice. Document #8DC-5327 | Revision 2.1 | 8188M21-5327-1 | Rev D Echoflex Solutions, Inc. #1, 38924 Queens Way | Squamish | BC | Canada | V8B 0K8 echoflex Toll Free: 888-324-6359 | Phone: (778) 733-0111 | Fax: (604) 815-0078 Powered by ETC Email: info@echoflexsolutions.com | www.echoflexsolutions.com...
