Product Features
HB21FSSAA
HB21FGRAA
HB21FGBAA
HB21FGWAA

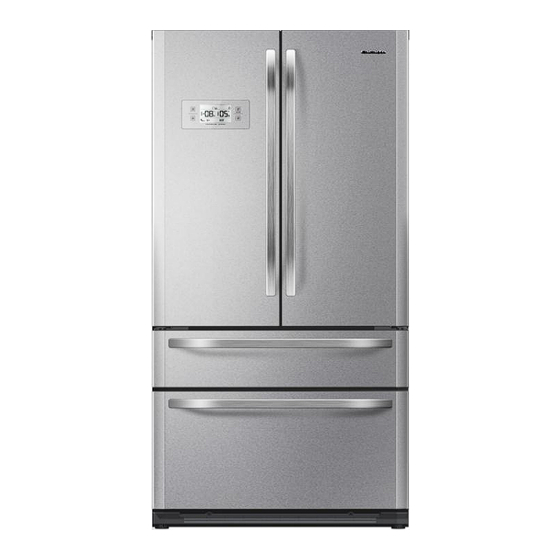

(This picture is HB21FSSAA)
(The appearance, color, design of the
refrigerator may vary from the actual product)
Refrigerator-freezer
Contents
Product Features ................................................. 1
Name of Components ....................................... 2-3
Safety Notice ..................................................... 4-7
Disassembly and Assembly of Door ............... 8-10
Preparation ................................................... 10-12
Getting Started ................................................... 13
Product Function ........................................... 14-32
About Refrigerating Chamber ....................... 33-36
About Freezing Chamber .............................. 36-38
Cleaning and Disuse ..................................... 42-50
FAQ ............................................................... 51-52
After Service ................................................. 53-54
Technical Data & Packing List ...................... 55-56
Warranty Information .................................... 57-58
Please carefully read the instructions before use.
Please retain it for future reference.
1
Instruction for Use
Advertisement
Table of Contents
Related Manuals for Haier HB21FSSAA
Summary of Contents for Haier HB21FSSAA
-
Page 1: Table Of Contents
Cleaning and Disuse ........42-50 FAQ ............... 51-52 After Service ..........53-54 Technical Data & Packing List ...... 55-56 (This picture is HB21FSSAA) (The appearance, color, design of the Warranty Information ........57-58 refrigerator may vary from the actual product) Please carefully read the instructions before use. -
Page 2: Product Features
Product Features Ice-making function Equipped with automatic ice maker, it can make ice for you according to your preferences, (depends on the model). Manual ice maker can satisfy user’s different need for ice. Full width shelf design, more convenience for storing and taking food. ... -
Page 3: Name Of Components
Egg Box Vertical Beam Gallon Bottle Seat Crisper Cover Crisper Full Wid. Drawer Cover Full Wid. Drawer Light for Fresh-keeping Freezing Chamber Manual Ice Maker Freezer Small Drawer Drawer Shelf Board Handle Freezer Large Drawer Decoration Strip (This picture is HB21FSSAA) -
Page 4: Safety Notice
Safety Notice Dear user, Thank you for using haier Refrigerator! For your better understanding of the instruction and better use of the product, we explain the signs appeared in the instruction as follow: All action with this sign is prohibited; it may cause product damages or endanger the personal safety of users. -
Page 5: Safety Notice
Safety Notice DO NOT damage the power cord It is recommended not to place appliance such as power socket, regulated power supply, microwave Do not pull the power cord to disconnect the oven on the refrigerator, and do not use electrical plug of refrigerator. - Page 6 Safety Notice When open and close the door, the handle shall be Do not use water to spray on or flush the hold to open and close. The space between the refrigerator, and do not place the refrigerator at doors and between the doors and the body is small. wet place or the place which is easy to be Cautions shall be made not to put your hands in splashed with water to avoid the impact to the...
- Page 7 Safety Notice Leveling Your Refrigerator Door Alignment The Refrigerator shall be place on flat and solid If the two doors of refrigerating chamber is not ground. If it's necessary to block up the refrigerator, aligned, please align the doors as following: flat, sold, and nonflammable cushion block shall be Use one hand to raise the door at the hinge in used.
-
Page 8: Disassembly And Assembly Of Door
When install and dismantle the doors, please contact the servicer centre of Haier. Prevent children or pets from asphyxia due to trap in the refrigerator. Do not let Caution them play in the drawer. -
Page 9: Preparation
Disassembly and Assembly of Door Refr. Left Door Disassembly and Assembly ③ Remove the left door and place it to proper ④ Middle hinge may be removed if necessary. location. ⑤ The door can be installed by reverse steps. Disassembly and Assembly of Ice Disassembly and Assembly of Freezer Receiving Drawer Drawer... - Page 10 Preparation ⑥ Install the bottom decorative strip Open the door of refrigerating chamber, take out the decorative strip from the chamber, and install it to the shown location, and fix it with screw. (2 screws are provided with the product) Please wear gloves when dismantle the bottom decorative strip and adjustable leveling legs to avoid injury to your hands.
-
Page 11: Getting Started
Getting Started ① Power On Immediately after the power on, the temperature is displayed as the actual temperature of the refrigerating and freezing chamber. At this time, the set temperature for refrigerating is 5℃, the set temperature for freezing is -18℃, Light Wave Fresh light is on, and the buttons are in unlocked stutus. - Page 12 A/ Function Selection Select “Fresh”, “Holiday”, “Fuzzy”, “Super Cooling”, “Super Freezing” and “Lock” functions. B/ Function Confirmation: enable C. Freezing Temperature Control Button: disable the selected function; adjust freezing temperature; D. Refrigerating Temperature Control E. Freezing Temperature Display Icon Button: adjust refrigerating temperature; G.
- Page 13 Fuzzy Function Setting In Fuzzy status, refrigerator will adjust the temperature setting automatically according to the ambient temperature and the temperature within the refrigerator. No manual control is required. In the unlocked status, press "Function Select Button", select the Fuzzy function, then "Fuzzy Cursor" will blink, press down the "Function Confirmation Button", the Fuzzy Icon will display and enter the function of Fuzzy;...
- Page 14 Control of Freezing Temperature In the unlocked status, press "Freezing Chamber Temperature Control Button", the original freezing chamber setting temperature start to blink. Enter freezing chamber temperature setting status, since then for each single press of this button, the freezing chamber setting temperature is displayed in cyclic form by “09, 08, 07, 06, 05, 04, 03, 02, 01”, if no button-pressing operation is initialed over 5 seconds, the blinking will stop and confirm the current temperature setting value.
-
Page 15: About Refrigerating Chamber
About Refrigerating Chamber Please put the frequently-eat or short-term storage food into refrigerating chamber Adjusting the temperature level can maintain the average temperature between 0-10 ℃ for most of the areas in the refrigerating chamber, but it can not make long-term preservation for food, and the refrigerating chamber can only be used as a short-term storage chamber. - Page 16 About Refrigerating Chamber Full Wid. Drawer Temperature Control Left slide the moisture control knob to increase Panel the cool air access to the full wid. drawer, so a relatively low temperature is kept in the full wid. drawer. ...
- Page 17 Precautions for Refrigerating Food Do not put hot food into the refrigerator before Put the food into the refrigerator for storage after it cooling it to room temperature. is cleaned and dried from the water drops. Food must be sealed before being put into Food should be refrigerated in classifications.
-
Page 18: About Freezing Chamber
Smart Use of Refrigerating Chamber Leaves of radish food should be cut off to prevent the nutrients absorption by the leaves. Put the frozen food into refrigerating chamber for deforestation, this can refrigerate the food with the low temperature from the frozen food and also for energy saving. ... - Page 19 Smart Use of Refrigerating Chamber The Adjustment of Freezer Large Drawer Board For better convenience of food storage, the refrigerator is equipped with freezer large drawer board, this board can divide the freezer large drawer into two parts, the user can adjust the position of the board according to their food type.
- Page 20 About Freezing Chamber Please take good care of your children and pets, do not let them play in the drawer in case of any unnecessary harms. Please do not dismantle the freezing drawer plate. Warning Freezing Chamber Light and Its Replacement (If any malfunction occures, please contact after-sale service personnel for a replacement with following procedures) Light parameters: DC12V-, 1W...
-
Page 21: Usage Of Ice Maker
Usage of Ice Maker Usage of Ice Maker in the Freezing Chamber Ice-making Insert water at the scale line of the measuring cup into each ice tray and put the tray into the freezing chamber to freeze. After freezing, turn the knob in turn with hands and the ice cubes will drop into the ice receiver automatically. -
Page 22: Cleaning And Disuse
Cleaning and Disuse Frost Removing of the Freezing Chamber Automatic way of frost removing is applied in the freezing chamber of this refrigerator. Manual operation is not in need. Cleaning Food left in the refrigerator will release harmful stink, so periodic cleaning is in need. - Page 23 Cleaning and Disuse Cleaning of the Freezing Refrigerator Cleaning of the Wine Shelf Shelf Simply lift the shelf up. Dip soft towel or sponge to warm water (neutral detergent may Lift the shelf up and pull it out forward. Dip soft be added) to clean the shelf.
- Page 24 Cleaning and Disuse Cleaning of the Rectangle Drawer and Its Cover Pull the drawer out forward and lift it up; get the crisper and the drawer down and lay them in a proper place. Then lift the cover up and pull it out forward.
- Page 25 Cleaning and Disuse Ice Maker in the Freezing Chamber Freezer Small Drawer Get the ice maker out of the freezer small Simply pull the freezer small drawer forward drawer. Dip soft towel or sponge to warm and lift it up. Dip soft towel or sponge to warm water (neutral detergent may be added) to water (neutral detergent may be added) to clean.
- Page 26 Cleaning and Disuse Disassembly Assembly Disassembly Assembly Freezer Small Door Freezer Large Door Pull the freezer small drawer out. Then lift up Pull the freezer large drawer out. Then lift up the freezer small door and pull it up to get the the freezer small door and pull it up to get the freezer small door down.
- Page 27 Cleaning and Disuse Disuse In need of a rather long suspension of use, power supply plug of the refrigerator should be plucked to cut the power, and clean the refrigerator following means as mentioned above. The door of the refrigerator should be open in suspension of use to prevent the small amount of food left producing harmful stink.
- Page 28 Cleaning and Disuse Never use the refrigerator in common situation in avoidance of impact on the work life of the refrigerator. After the power supply plug is plucked, at least 5 minutes should be suspended before a Caution second plug. ...
-
Page 29: Faq
（stange voice in refrigerator） When running the refrigerator at first time, there will There will be a normal voice comes from working be a loud voice keeping for a short while, as it has fan while the refrigerator is working. not entered into a steady running status;... - Page 30 （fever and sweating） When refrigerator used for the first time, long-time working may cause high temperature of body and compressor, which is a normal phenomenon. When refrigerator runs for long hours, the surface of the erect-beam installed on the left door of the refrigerating chamber and the door body will be warm, this is a normal phenomenon which is mainly designed to prevent condensation phenomenon.
-
Page 31: After Service
After Service Please check and handle the refrigerator in following methods if its running status is abnormal. If the problem still can not be solved, please contact the service centre. Please provide the specific product’s model and name, annex details and serial number. (Please see relevant information on refrigerator’s nameplate). -
Page 32: After Service
After Service Please verify following matters before maintenance. Running too long, or shutdown too often. It is normal for a long startup in first use. Once put too many foods in for cooling or freezing. Doors haven't been closed tightly, or doors can not be closed as some foods there blocking it. - Page 33 NOW Certificate of Quality Inspector: Produced by Haier Group Qingdao Haier Co., Ltd Address: Haier Industrial Park, Economic& Technological Development Are, Edition: 2 ediftion 2009 Qingdao Special No.: 0060506804 Service Tel：4006 999 999 Manufacturer Code: V98497 Website：http://www.casarte.cn...
