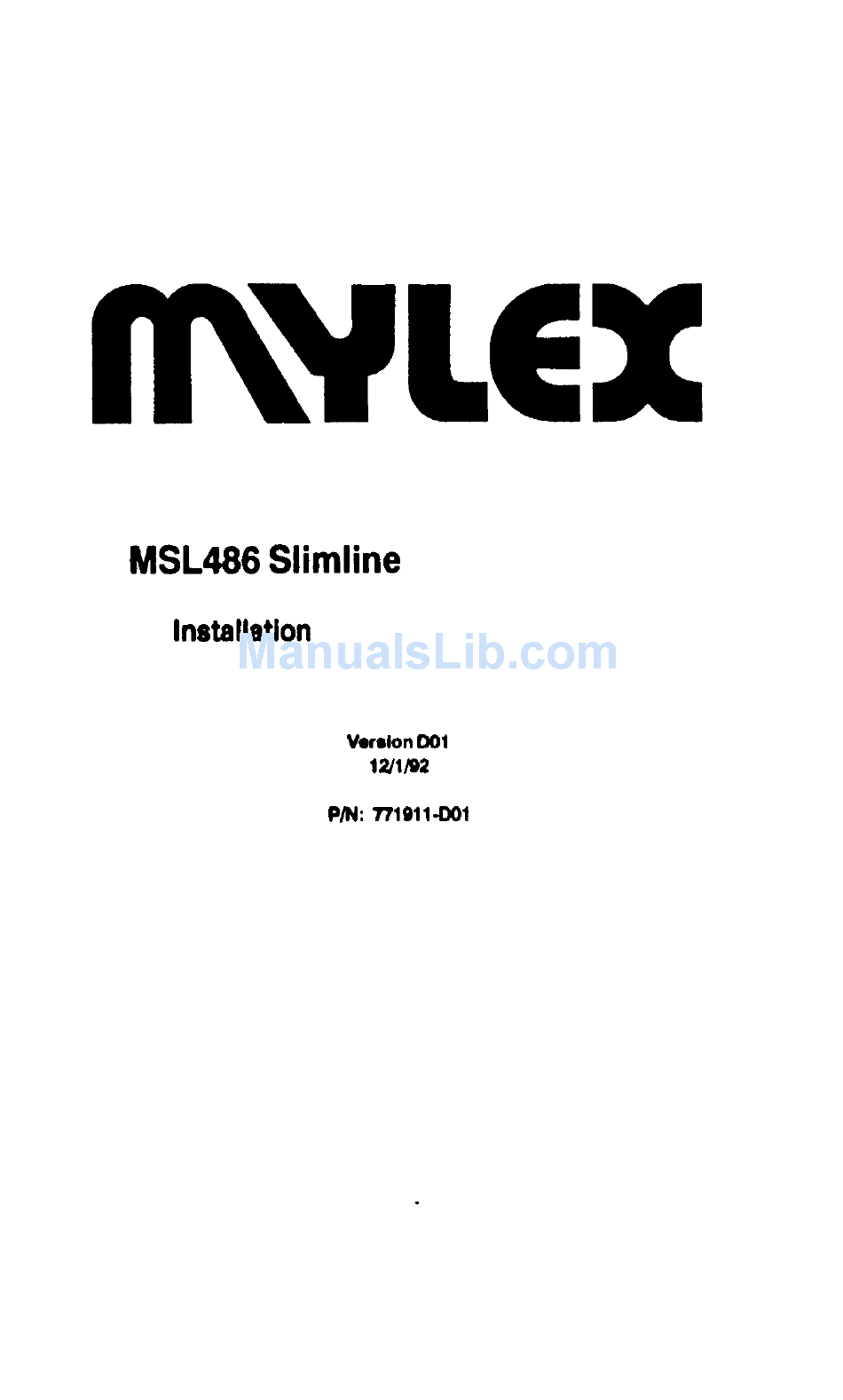

ML466 Slimline System Board
lnstallatlon and Operations Guide
Vorolon 001
1mQ2
P/N: r71011-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML466 and is the answer not in the manual?

Questions and answers

Related Manuals for Mylex ML466

Summary of Contents for Mylex ML466

  • Page 2: Copyright Notice

    Mylex Corporation, except as permitted by the United States Copyright Act of 1976, as amended.
  • Page 3 Preface FCC Warning: This device has been tested and found to comply within the limits of a Class B device, pursuant to Part 15 of FCC regulations. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, in- cluding interference that may cause undesired opera- tion.
  • Page 4 This product is guaranteed to be free from manufacturing or material defects for a period, of 1 (one) year after the date of purchase. Should the product fall during this period Mylex will repair or replace (at Mylex’s option) the product free of charge with the following provisions: Proof of purchase must be provided.
  • Page 5 Returned Merchandise Authorization (RMA) must be assigned a RMA number before shipment to Mylex. The RMA number may be obtained by contacting Mylex’s Technical Support Department. Any product received without a RMA number will be returned to the shipper unopened.

  • Page 6: Table Of Contents

    Contents Table Of Contents: MSL486 System Board Package Contents ... . . l-2 Handling Precautions ... . . l-2 If Troubles are Encountered .
  • Page 7 Typographical Conventions... * . l-l Mylex Technical Support... . The Mylex Bulletin Board System ..About the VGA Video Circuitry ..
  • Page 8 Monitor Compatibility ........l-4 Software Compatibility ........l-4 Chapter 2: Using the VGA Utilities SETUP.EXE ..... installing the Utilities ........2-3 .
  • Page 9 Installing VGA Drivers for Microsoft Word 3-l 4 Installing VGA Drivers for WordPerfec! Installing Graphics and Text Drivers for WordPerfect 5.1 3-16 Chapter Technical Information Using Ergonomic Refresh Rates Reference lo Text and Graphics Modes. Figure l-l Mylex MSL466 Slimline System Board...

  • Page 10: Package Contents

    Introduction Thank you for making the decision to purchase the installation and maintenance, the MSL488 Slimline will provide years of trouble-free operation. Package Contents MSL486 Slimline System Board This manual Warranty Card Any pertinent Release Notes available at the time of shipment System Problem Report Form...

  • Page 11: Handling Precautions

    BIOS section of this manual. Then contact your dealer or distributor for additional information. Deal- ers and Distributors may contact the Mylex Technical Support Department at (510) 796-6100. Be sure to have the enclosed System Problem Report com-...

  • Page 12: Overview

    Overview The unique feature of the MSL488 Slimline is that it can be easily upgraded from a 486SX CPU to a 486DX. Since a special frequency synthesizer is used, the need to change oscillators is eliminated.

  • Page 13: Contents

    Contents: This manual is broken down into 8 major chapters. The following is a description of each section. Section 1: Chapter 1: System Upgrades Chapter 2: Motherboard Technical Reference Chapter 3: BIOS Tests and Error Messages Appendix A: Setting the Jumpers Chapter 1: Section 2 Overview Chapter 2: Using the VGA Utilities Chapter 3: Using the VGA Drivers...

  • Page 14: What You Will Need

    What You Will Need Before you begin to install the MSL486 in a chassis, the following tools will be required: A Phillips and flate blade screwdriver Plastic stand-offs (normally supplied with the chas- sis) Assorted screws A good working knowledge of computers is highly recommended for installing a system board.
  • Page 15 Chapter 1: System Upgrades This chapter has the instructions for installing or up- grading these components: Option boards System Memory (SIMMs) Disk drives Microprocessor chip Video Memory Grounding Procedure CAUTION: Static electricity can destroy system com- ponents. A component with static damage may fail or cause data loss soon after it is damaged, or at a later time.
  • Page 16 System Upgrades Version DO1...

  • Page 17: Installing An Expansion Card

    Installing an Expansion Card Please note the following before you install an expan- sion card: The expansion cards are installed on the T-adapter, which is supplied with the MSL case. The expansion slots are located on a T-adapter that is installed vertically on the motherboard.

  • Page 18: Installing Slmms

    Section 1 Note: Make sure you run Setup prior to installing a new controller and disable the on-board IDE control- Installing SIMM8 For RAM (that is, system memory), the system uses Single In-line Memory Modules, or SIMMs. The SlMMs are installed in slots on the motherboard, divided into two banks (bank 0 and bank 1).

  • Page 19: Upgrading The Microprocessor Chip

    1. If you are replacing SIMMs, remove the old ones. Starting with the first SIMM in bank 0 (the SIMM closest to the front of the system) pull the metal clips on the SIMM apart until the SIMM slips off the alignment pegs. 2.
  • Page 20 Section System UpQradea Board the old microprocessor and Carefully lift out immediately place it in anti-static packaging. Remove the new microprocessor from its anti-static packaging and check to make sure that none of the pins are bent. If any pins are bent, return the chip to your dealer.
  • Page 21 486SX 487SX Intel Overdrive TM Note: If you have an 86466DX2 or 66467SX Inte/@ Overdrive” processor, set the processor speed. For example, if you have an 804660X2-50 MHz processsor, set jumpers J8, J9 and Ji 0 for 25 MHz. Information will still be processed at the doubled speed.

  • Page 22: Upgrading The Video Memory

    Section 1 speed in the CMOS Setup to ha/f the doubled CPU speed. For example, if you have an 804660X2-50 MHz processor, set the CPU speed in the CMOS Setup to 25 MHz. The system will still process infor- mation at the doubled CPU speed. Upgrading the Video Memory The MSL488 system comes with either 512 KB of video memory.
  • Page 23 6. Because you now have 1 MB of video memory, you can install higher resolution video drivers for some software. Version DO1...

  • Page 24: Chapter 2: Motherboard Technical Reference

    Chapter 2: Motherboard Technical Reference This section is a guide to all connectors and jumpers on the motherboard, and includes other technical in- formation. Refer to the motherboard diagram at the end of this session for jumpers and connector loca- tions.
  • Page 25 Section 1 Power-on LED/Keylock (P2) P2 is the connector for the power-on LED and keylock. The pin assignments are as follows: Turbo LED (Pl) positive lead from the LED to pin 1. Reset Button (PS) panel. The polarity of the connection is not important. Copyright @ 1992...
  • Page 26 Speaker (P3) is the connector for the speaker. The pin assign- ments are as follows: PIN 2 Ground PIN 3 No Connect PIN4 Hard Drive LED (P4) P4 is the connector for the IDE hard drive LED. The first two pins of this connector are for the hard drive LED wires.

  • Page 27: Printer Port (P7)

    PIN 5 Ground PIN 6 Ground PIN 7 Ground Ground PIN 9 -5 VDC PIN 10 t5 VDC PIN11 t5 VDC PIN 12 The power supply connector labeled P8 connects to pins 1 through 6. P9 connects to pins 7 through 12. (The four black wires are ground, and should be con- nected to pins 5 through 8.) Serial Port (COM2) (P8)

  • Page 28: Vgalocalbusport

    MSL488 Sllmline Board Tech lkal Reference VGA Local Bus Port (P6) P6 is the 15 pin VGA connector for the Local Bus Port on the back of the system. Diskette Drive Controller (P13) PI 3 is the connector for the diskette drive cable. It is a standard 34-pin diskette drive cable connector.

  • Page 29: Microprocessor Speed (Jp8, Jp9, Jplo)

    Technical Reference Section 1 Video Adapter Selection (Jll) applies only to monochrome or CGA adapters. Microprocessor Speed (JP8, JP9, JPlO) These jumpers should be set according to the type of the microprocessor. These jumpers were set correctly for your system at the factory. You should not change these jumpers unless you change the microprocessor speed.

  • Page 30: Dmachannels

    Section 1 DMA Channel 0 0087 0083 0081 DMA Channel 3 0082 Cascade Floppy Diskette Spare Cascade for DMA Channel 1 Spare Spare Spare...

  • Page 31: Interrupts

    Section 1 Technical Reference Interrupts Floppy Diskette Controller Parallel Port 1 (LPTl) Reserved Reserved Reserved Co-processor Hard Disk Controller Reserved Version DO1...
  • Page 32 This Page Left Blank Intentionally...

  • Page 33: Chapter 3: Bios Tests And Error Messages

    MSL466 SlimlIne Board Chapter 3: BIOS Tests and Error Messages The following section provides a general description of the tests performed and the messages displayed by the BIOS (Basic Input/Output System). What Happens When the System Boots When the system is turned on (or booted) the ROM BIOS runs a series of self tests and hardware initiali- zation processes.

  • Page 34: Beepcodes

    BIOS Teats 6 Error Messagea Beep Codes When the POST detects a problem, the system sounds a series of long and short beeps. The se- quence of the long and short beeps indicates which error or errors have been found. To decode the beeps, count the number of long and short beeps and the sequence in which they occur.

  • Page 35: Error Messages And Start-Up Messages

    MSL488 Slimline Board section 1 The following are some examples of beep codes and how to decode them. A long beep is indicated by “LB,” and a short beep is indicated by “sb.” Example 1: You hear the following beep codes: Long beeps occur in positions I,4 and 10.

  • Page 36: Post Errors

    On Self-Test has detected a fatal error. If you see one of these messages, turn the system off for a few minutes, then turn the system back on. If the message still appears, call Mylex’sTechnical Support to further diagnose the problem. FAULTY DMA PAGE REGISTERS...

  • Page 37: Diskette Error Messages

    CMOS Setup. If you see one of these error messages, make sure the CMOS Setup is correct before replacing a hardware component or contacting Mylex’s Technical Support. HARD DISK # CONTROLLER FAILURE HARD DISK # ERROR...

  • Page 38: Boot Messages

    The following error messages may be displayed dur- ing the boot process. Follow the instructions displayed with the message, if there are any. If there is a persis- tant problem, contact Mylex’s Technical Support. Press to retry Hard Disk, any other Key to boot from ‘H’...
  • Page 39 Check the software configuration, or contact the software manu- facturer. If the problem is random, and happens in different applications, contact Mylex’s Technical Sup- port. SEGMENT BOUNDARY OVERRUN TRAPPED AT ADDRESS XXXX:XXXX...

  • Page 40: Appendix A: Setting Jumpers

    Appendix A: Setting Jumpers When you install internal options in the system, you may need to change jumpers on the option card or on the motherboard. This section explains how to set jumpers. Jumpers To install the jumper, place it over the pins and push down until it completely covers the pins.
  • Page 41 Section 1 This Page Let? Blank Intentionally Version 001...
  • Page 42 Section Software Utilities...

  • Page 43: Chapter 1: Overview

    section2 Chapter 1: Overview About Section 2 This guide explains how to use the utilities and drivers included with onboard VGA video circuitry on the MSL488. it is organized into the following Chapters: Chapter 1, this Chapter, is an overview of this section and a description of the features of the video circuitry.

  • Page 44: Mylex Technical Support

    Mylex Technical Support If you have problems or questions that the documen- tation doesn’t cover, the Mylex Technical Support staff is available Monday through Friday 8:00 a.m. to 5:OO p.m. pacific standard time. Call (510) 796-6100 to talk to a support technician.

  • Page 45: About The Vga Video Circuitry

    About the VGA Video Circuitry The Headland Technologies HT216 VGA controller circuitry on the fvlSL486 uses local bus technology to bypass the standard AT bus. By eliminating the need to use the slower 8 MHz bus, the VGA system delivers fast VGA graphics with speeds approaching those of expensive co-processor based add-in cards.

  • Page 46: Monitor Compatibility

    overview Section 2 Monitor Compatibility The liT216 works with all fixed and variable-frequency analog monitors compatible with the IBM PS/2 analog monitors. The video resolution you can get from the circuitry depends on the monitor you have. For exam- ple, some monitors do not work at resolutions higher than 640x480 because they cannot use the vertical and horizontal scan rates required for higher resolu- tions.

  • Page 47: Chapter 2: Using The Vga Utilities

    section2 Chapter 2: Using the VGA Utilities This chapter explains how to use the utilities on the programs allow you to use the extended capabilities of the VGA circuitry. Note: The VGA Utilities and the Drivers are all in- cluded in one 1.44MB diskette. The following programs are included on the diskette: from the diskette to your local hard drive.

  • Page 48: Setup.exe

    Section 2 detect problems with the video circuitry. tion to those included in the VGA BIOS. Extensions (VBE) standard. The following sub-sections explain each program and driver in detail. The instructions assume that you know basic MS-DOS commands. See your MS-DOS User’s Guide for information about MS-DOS commands.

  • Page 49: Installing The Utilities

    Section 2 Utilitier lets you install the utilities described in this section. The other selections let you install the extended video drivers for the listed software packages. You can se- lect which display resolution you would like to install for the listed software packages. Refer to Section 3 of this guide for more information.
  • Page 50 If you do not already have a CONFIG.SYS file, one will be created. After you have installed RAMBIOS.SYS, exit to a DOS prompt, and re-boot the system to have RAM- Note: RAMBIOS.SYS uses approximately 24 KB of memory. If your software applications require large amounts of memory, or if you use memory resident programs, you may fun out of system memory.

  • Page 51: Bypassing The Htvga Menu

    MSL488 !Mtware Manuai section2 Select Monitor lets you select the type of monitor (color or monochrome) the system is using. You must select a monitor type before you select an emulation mode (see below). Select color if you intend to enable CGA mode, or monochrome for Hercules mode.
  • Page 52 ML466 !Sllmllne Board Utilities sub-directory and press The following explains each of the options you can set at the com- mand line. HTVGA CGA:QN enables CGA compatibility mode. HTVGA CGA:LOCK enables CGA compatibility mode which will remain in effect through one warm boot allowing the use of self-booting CGA programs.

  • Page 53: Du.com

    tory information in as many columns as the screen can accommodate. It can be used in any mode and can display from 50 to 129 entries at a time (as opposed to the 25 entries available through the MS-DOS DIR command).

  • Page 54: Clr.com

    VGA Utllltlw DU letter.* ItP.txt DU \MY FI LE\*. exe *.com To display only sub-directories, use the /d option. For example: To display all files including hidden files, use the /h option. For example: To display all files including system files, use the /s option.

  • Page 55: Esucom

    section2 ESU.COM is an enhancement selection utility that allows you to change text and graphics modes through a menu-driven program. mode that your monitor cannot support. See Chapter 4 for monitor requirements. Follow these instructions to use ESU.COM: Make the Utilities sub-directory the default directory.
  • Page 56 Section 2 Insert the SlimLine VGA Utilities and Drivers diskette into the drive. If the diskette is in drive A, type A:HTDIAG and press ENTER If the diskette is in drive 6, type The program displays the amount of video memory, the VGA BIOS version, any switch settings, any co-resident graphics adapter, and any memory locations used by other...
  • Page 57 Section 2 1. Make the Utilities sub-directory the default directory. If you have not installed the Utilities, follow the directions earlier in this section. 2. Type ALTPAFIM and press ALTPARM menu appears. 3. Highlight an option by using the DOWN arrow keys.

  • Page 58: Htvesa.com

    Section 2 (TSR) program that provides support for the Video Electronics Standards Association (VESA) BIOS ex- tensions standard. HTVESA.COM allows you to run software that provides a VESA driver in an extended VGA mode, such as 880x606 with 16 colors. You must run HTVESA.COM before running software which supports the VESA standard.

  • Page 59: Chapter 3: Using The Vga Drivers

    Chapter 3: Using the VGA Drivers This chapter explains how to install VGA drivers for several software packages. These drivers allow the software to be displayed in extended graphics resolu- tions, more colors, or extended text modes. The following software VGA drivers are included: .

  • Page 60: Installing Software Drivers

    Section 2 Installing Software Drivers You must run the SETUP program from the floppy drive (described in Section 2) to install most of the software drivers. SETUP decompresses the drivers and copies them to the appropriate sub-directories of the hard drive. for the driver you want to install.

  • Page 61: Installing Vga Drivers For Autocad

    section 2 After you have decompressed the driver, you can configure the software to display the new resolution. See the sub-section that covers your software. Installing VGA Drivers for AutoCAD 11 (in real mode) and release lo/386 and 11 (in pro- tected mode).

  • Page 62: Configuring Autocad For The Adi Drivers

    Section2 This loads the ADI driver into memory. The driver displays the identification information on the screen, and confirms that it has been installed. It also tells you which interrupt vector will be used to communicate with AutoCAD. Note: The VGA REL 11. COM ddver supports ADI vef- sion 4.0;...

  • Page 63: Controlling Resolution And Colors

    Section 2 Controlling Resolution and Colors The real mode AutoCAD driver includes an installation program called VGAINST which lets you choose dif- ferent screen resolutions, colors, and interrupt vec- tors. gram when you selected the AutoCAD drivers. Follow these steps to use VGAINST: Make the AutoCAD sub-directory the defautt directory.

  • Page 64: Installing Drivers For Autocad In Protected Mode

    Section 2 Note: The resolution you can select depends on the type of monitor and/or video memory configuration. See Chapter 4 for details. 8. Select the AutoCAD color mode; either Release 9 or Release 10 (for both 10 and 11). 9.

  • Page 65: Installing Vga Drivers For Cadvance

    Manual Installing VGA Drivers for Cadvance VGA drivers are provided for Cadvance versions 3.0 and 3.5. Follow these steps to install the Cadvance VGA drivers. Make sure you have copied the drivers by using the SETUP program (see the instructions in the beginning of this section). Make the Cadvance directory the default directory.
  • Page 66 Select Install New Configuration. When asked for the Graphics Card and Display Installed, select IBM 16 Color VGA if you have a color VGA display, or IBM VGA Monochrome if you have a monochrome VGA display. Complete the setup according to the instructions.

  • Page 67: Installing Vga Drivers For Lotus L-2-3 And Symphony

    Make sure you have used the SETUP program to copy the drivers to the Generic CADD sub-directory. Make the Generic CADD sub-directory the default directory. Run the Generic CADD CONFIG program. Type CONFIG and press at the system ENTER prompt. Choose option #60 other VGD files and press return.
  • Page 68 Section 2 10. Select Modify Current Driver Set. 11. Select Graphics Display. 12. From the list of available drivers, select the driver you want to install. 13. Select Save Changer. 14. Follow the instructions on the screen to name the new driver set or make it the default driver set and complete the installation.

  • Page 69: Installing Vga Drivers For Presentation Manager

    Installing VGA Drivers for Presentation Manager VGA drivers are included for Presentation Manager version 1.2. Follow the steps bellow to install the Presentation Manager VGA drivers: 1. From the OS/2 DOS Compatibility Box, run the SETUP program to copy the Presentation Manager driver and monitor files to the 2.

  • Page 70: Installing Vga Drivers For Ventura Publisher

    Note: Make sure the line IOPL=yes is in the CON- FIG. SYS file. Installing VGA Drivers for Ventura Publisher VGA drivers are included for Ventura Publisher ver- sions 2.0 and 3.0. Follow these steps to install the Ventura VGA drivers: Note: It is not necessary to use the SE77JP program to install th8 drivers.
  • Page 71 files to the VersaCAD subdirectory. See the beginning of this section for instructions. 2. Use a text editor to modify the VersaCAD batch file (usually in the root directory of the hard drive) to include the driver name of the resolution you’ve selected.
  • Page 72 Make sure you have used the SETUP program to copy the Windows drivers to the WINDOWS\SYSTEM sub-directory. Start Windows. Select File Run to run HTSETUP from the WINDOWS\SYSTEM sub-directory (or from whatever sub-directory where the system files are located) or simply double-click on the VGA SETUP icon.
  • Page 73 2. Rename the SCREEN.VID file in the Word sub-directory to SCREEN.OLD. Type REN ENTER. 3. Make sure you have used the SETUP program to copy the Word driver files (SCREEN.VID and VIDSETUP.EXE) to the Word sub-directory. 4. At the system prompt, type VIDSETUP and press ENTER.
  • Page 74 using VGA Dfhmrte Run WordPerfect, and choose the Setup command. From the Setup menu, choose Displsy (#3), then select Graphics Screen Type (#5). Select the resolution you want to use. Follow the directions on the screen to exit the Setup menu. Installing Graphics/Text Drivers for WordPerfect 5.1 Make sure you have used the SETUP program to copy the WordPerfect 5.1 drivers to the...
  • Page 75 Chapter Technical Information This chapter provides the technical requirements for monitors attached to the HT216-32 video circuitry. It also explains each extended display mode, and the memory requirements for each display mode. Monitor Timings for Extended Graphics Modes The following tables show the scan rate requirements for extended graphics modes in 512 KB and 1 MB video memory configurations: 752x410 by 16 colors...
  • Page 76 Section 2 Technical Reference Interlaced +Non-interlaced 1 MB Video RAM Configuration Only 1024x768 by 256 colors 43 Hz 35.5 KHz 1024x768 by 256 colors 48.5 KHz +Non-interlaced tomize the display on monitors that have ditferent horizontal and/or vertical scan rates. See Section 2, Chapter 2 for more information about ALTPARM.
  • Page 77 Section 2 80x25 by 16 colors 72 Hz 31.8 KHz 39.4 KHz 640x480 by 16 colors 72 Hz 76 Hz 40.6 KHz 640x480 by 16 colors 80x43 by 16 colors 72 Hz 30.0 KHz 72Hz 30.0 KHz 132x25 by 16 colors 30.0 KHz 132x43 by 16 colors 72 Hz...
  • Page 78 Section 2 Reference to Text and Graphics Modes following table lists the available text and graphics modes, the resolution, the kind of monitor required and whether the mode is for text or graphics. Note the following abbreviations used in the table below: 640x200 by 16 colors 640x350 by 4 colors VFD, AD...
  • Page 79 132x43 colors by 16 VFD,AD 60x60 16 colors VFD,AD 100x60 16 colors VFD,AD 132x28 16 colors VFD,AD Graphics 720x540 Graphics by 16 colors Graphics 1024x768 by 2 colors Graphics Graphics 1024x768 by 16 colors 1024x768 by 16 colors Graphics 640x400 colors VFD, AD Graphics...
