2.4 GHz WIRELESS
B&W VIDEO SECURITY SYSTEM
MODEL WL5230
FOR MORE INFORMATION
WWW.STRATEGICVISTA.COM
Before operating the system, please read this manual thoroughly and
retain it for future reference!!!
This product broadcasts over public airwaves and
its video and audio signals may be intercepted
without your consent.
Advertisement
Table of Contents
Related Manuals for Strategic Vista WL5230
Summary of Contents for Strategic Vista WL5230

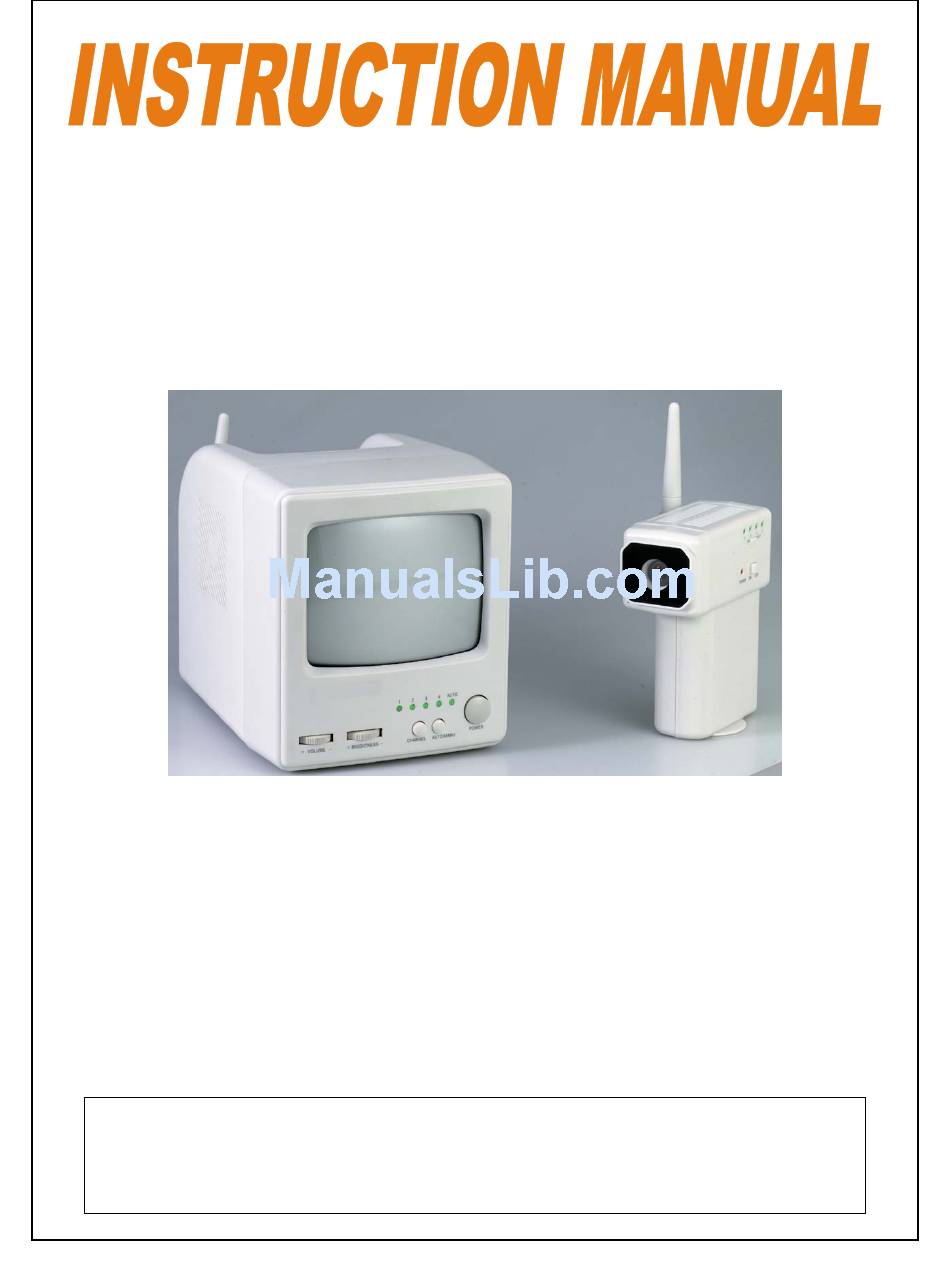

- Page 1 2.4 GHz WIRELESS B&W VIDEO SECURITY SYSTEM MODEL WL5230 FOR MORE INFORMATION WWW.STRATEGICVISTA.COM Before operating the system, please read this manual thoroughly and retain it for future reference!!! This product broadcasts over public airwaves and its video and audio signals may be intercepted...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of two Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the appliance is operated and retained for future reference. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2. -
Page 4: Table Of Contents
Congratulations on your purchase of the Lorex 5” 2.4 GHz Wireless 4-Channel B&W Observation System. This system has the capability of connecting up to four cameras, allowing you to view up to four different locations. The wireless camera included with this system provides of up to 300 Ft. of distance (open space). -
Page 5: Monitor
MONITOR CONTROLS BACK PANEL FRONT PANEL 1) Power Button – Pushing this button will turn the monitor ON/OFF. (Note: ensure this switch is set to the OFF position prior to plugging into an electrical outlet). 2) Volume Control – Adjust switch to control volume sound, turn left/right to adjust volume. 3) Brightness Control –... -
Page 6: Monitor
MONITOR CONTROLS – (CONT’D) c) Selectable Dwell Setting: This system provides you the option of three selectable dwell options (2, 5 and 10 seconds) when set to Auto Mode. Your system is preset to 2 second selection. To change this default setting, proceed with the following. NOTE Changing Dwell Mode Press and hold the CH select button. - Page 7 AC OR BATTERY OPTION This camera has both AC or Battery option. This will provide the user flexibility to move the camera from room to room. This camera can only be used with Alkaline AA Batteries. NOTE Do not use this system with re-chargeable batteries. 1) Ensure the power switch of the camera is turned OFF.
-
Page 8: Connecting Monitor To A Vcr
OPERATION CONNECTING MONITOR TO A VCR Monitor Adapter RCA Cables Connections Connect the supplied audio/video cable from the back of the monitor to the Audio/Video In of the VCR. Did You Know? You have the option of connecting this system to a Time Lapse VCR. A time lapse VCR provides you multiple recording options allowing you to record up to 40 days using a standard T120 tape. -
Page 9: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available to add to your existing system. TIME LAPSE VCR NIGHTVISION Weatherproof Night vision Used to record key events. accessory. Allows you to see Select From a 40 hour real in the dark up to 35-40 time or 960 Hour time lapse distance (for use with Observation system cameras) -
Page 10: Specifications
SPECIFICATIONS WIRELESS CAMERA B&W CMOS Camera Image sensor F2.0 3.7mm wide angle lens Lens 320 H X 240 V Picture Elements Scanning system 2:1 interlace Battery Life 4 – 5 Hours (B&W) Current Consumption 230 mA Resolution 240 TV Lines Min.
