Summary of Contents for Roller Cycle CSG 350

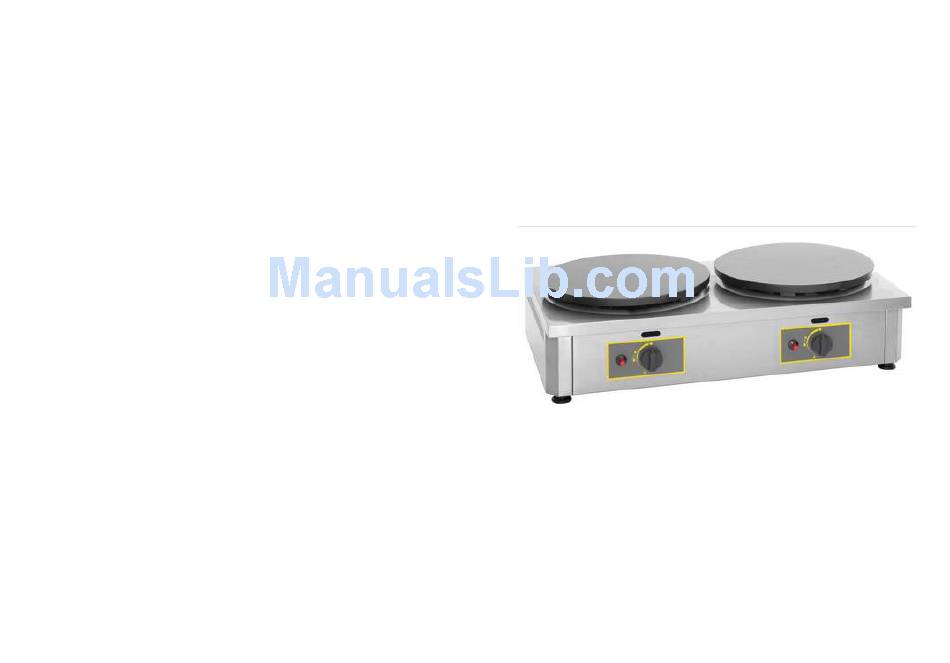

- Page 1 INSTRUCTIONS FOR USE AND INSTALLATION GAS CREPE MACHINES CSG 350 / CSG 400 / CDG 350 / CDG 400 Made in France April 2011...
-
Page 2: Security Instructions
GAS CREPE MACHINES CSG 350 / CSG 400 / CDG 350 / CDG 400 Congratulations for the acquisition of this upmarket appliance made in France. You chose an appliance which alloys the best technical qualities with a big user- friendliness. We wish you the biggest contentment 1. -
Page 3: Conformity Of Use
Power control knob E01016 Brûleur Burner 68038 Plateau disque Griddle plate 68039 Ceinture Casing See exploded view for CSG 350/CSG 400/CDG 350/CDG 400 at the end of the do- cument. 68042 Bandeau Control panel A13017 Pied Foot 3. CONFORMITY OF USE 68040... - Page 4 G20/G25. The appliances are originally delivered with a Butane/Propane injector corre- sponding to the category II2E+3+. The connection is made thanks to a thread 3/8. The heat release rate of the appliance is CSG 350 / CSG 400 3.6 Kw CDG 350 / CDG 400 7.2 Kw...
- Page 5 Nomenclature CDG 350 equal to the indications on the rating plate. Spare parts CDG 350 The fresh air flow required for combustion air supply is: - CSG 350 / CSG 400 7.2 m3/h - CDG 350 / CDG 400 14.4 m3/h...
- Page 6 Gas category table, according to the country of destination of the appliance. Country of destination Category Pressures Diameter of injector France/Luxembourg II2E+3+ G20/G25 20/25 G30/G31 28-30/37 II2E+3B/P G20/G25 20/25 G30/G31 Germany II2E+3B/P G20 /G25 G30/G31 Austria II2H3B/P G30/G31 Belgium G30/G31 28-30/37 G20/G25 20/25...
- Page 7 Air adjustment Injectors were conceived to avoid any air adjustments and that whatever the gas you use. c) Use of device : Nomenclature CSG 400 Elements of command and display Spare parts CSG 400 Command/Display Function Piezo Switches on the appliance (simultaneously with the set knob) (n°1 on picture) Set knob Switches on the appliance (knob pressed simultaneously with...
-
Page 8: Cleaning And Maintenance
- During a prolonged non-use, we recommend you strongly to keep the device shielded from the humidity and to grease the plate. 7. TECHNICAL SPECIFICATIONS Model CSG 350 CSG 400 CDG 350 CDG 400 Outside dimen- 450x500x240... - Page 9 Please contact the store where you bought your device to know the precise conditions. Nomenclature CSG 350 Spare parts CSG 350 The guarantee grants no right for damages. The dispositions which follow are not exclusive of the profit of the legal guarantee planned by articles 1641 and following ones of the Civil code relative to the defects and the latent defects.
