Summary of Contents for Equinox Systems EQLED101

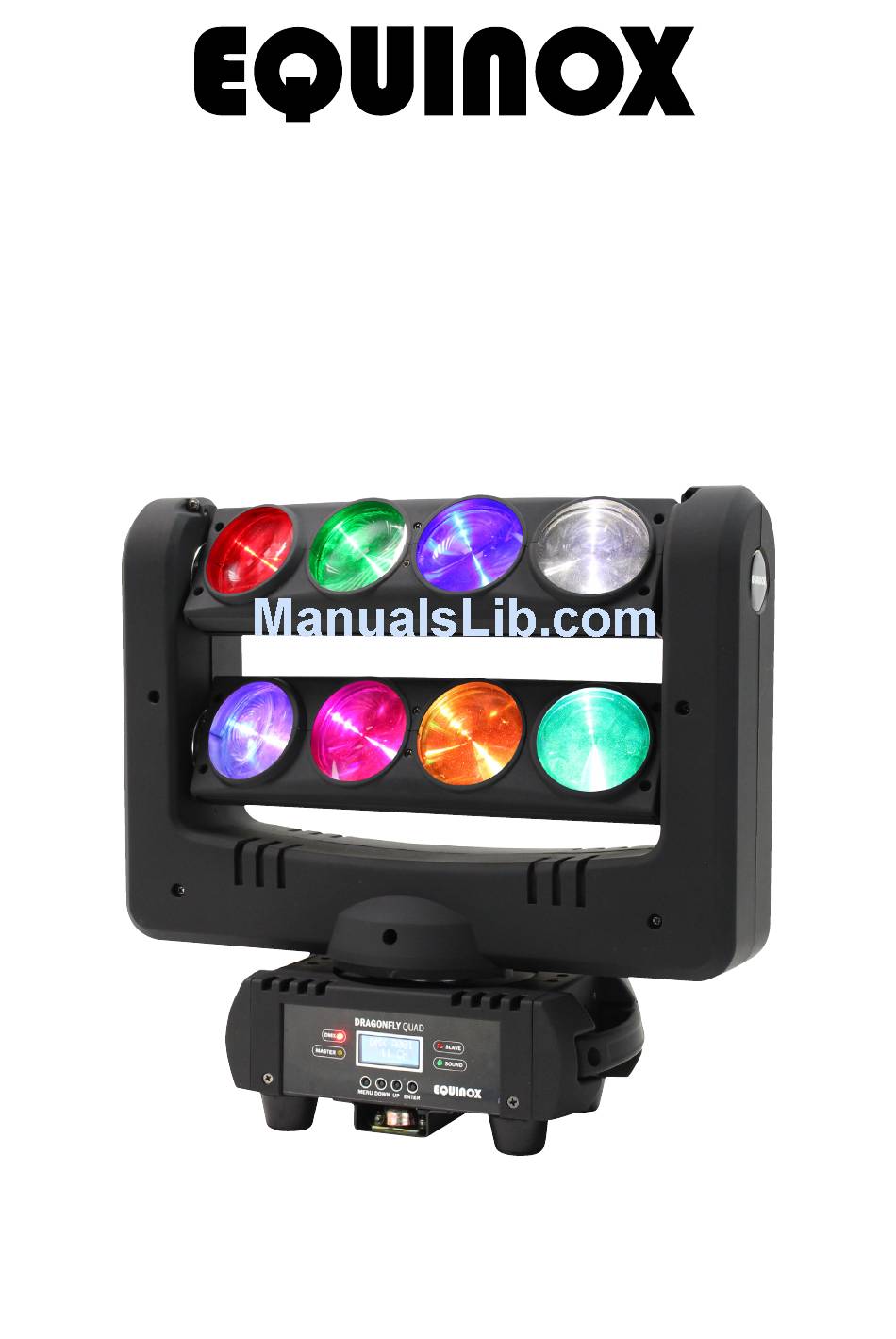

- Page 1 Dragonfly Quad User Manual V1.4 Order code: EQLED101...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Dragonfly Quad The Dragonfly Quad is a dynamic multi-beam effect featuring two sweeping LED bars, each loaded with four individually controllable 12W quad-colour LEDs. The eight vibrant coloured narrow beams project across the room making the fixture ideal for a multitude of environments from stages and clubs to mobile DJs. This agile fixture creates amazing lighting shows when used in multiples but also makes an outstanding centrepiece. • 8 x 12W quad-colour LEDs • Beam angle: 4.5° • Pixel mapping capabilities • DMX channels: 11 or 37 selectable • Auto, sound active and master/slave modes plus built-in programs • 0 - 100% dimming and variable strobe • Pan: 630°, Tilt: 360° continuous rotation • Quick release omega clamp included • 4 push button menu with LCD display • IEC power input/output • 3-Pin XLR input/output Specifications Power consumption 120W Power supply 100~240V, 50/60Hz Fuse F5A 250V Dimensions 390 x 403 x 150mm Weight 6.3kg Order code EQLED101 403mm 155mm www.prolight.co.uk Dragonfly Quad User Manual...
-
Page 4: Technical Specifications
Technical specifications DRAGONFLY QUAD SLAVE SOUND MASTER MENU DOWN UP ENTER www.prolight.co.uk POWER IN POWER OUT 01 - Function buttons 06 - DMX input LED 11 - IEC power output In the box: 1 x fixture, 02 - Omega clamp receiver 07 - Master LED 12 - Power switch 1 x omega clamp, 03 - LCD display 08 - Handles 13 - Microphone 1 x power cable 04 - Sound LED 09 - IEC power input 14 - 3-Pin XLR DMX input & 1 x user manual 05 - Slave LED 10 - Fuse F5A 250V 15 - 3-Pin XLR DMX output... - Page 5 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the front of the unit to show “DMX Address” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. To access the DMX channel mode, press the “MENU” button on the front of the unit to show “Channel Mode” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 11 or 37 DMX channel modes. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 11 channel mode: Channel Value Function 058-067 Program 6 000-255 Pan Movement (0°-630°) 068-077 Program 7 000-127 Tilt 1 Movement (0°-360°) 078-087 Program 8 Fast-slow continuous 088-097 Program 9 128-191 reverse rotation 098-107 Program 10 192-255 Slow-fast continuous rotation 108-117...
-
Page 6: Master/Slave Mode
Operating instructions 36 channel mode: Channel Value Function CH16 000-255 LED 3 Blue (0-100% dimming) 000-255 Pan Movement (0°-630°) CH17 000-255 LED 3 White (0-100% dimming) 000-127 Tilt 1 Movement (0°-360°) CH18 000-255 LED 4 Red (0-100% dimming) Fast-slow continuous CH19 000-255 LED 4 Green (0-100% dimming) 128-191 reverse rotation CH20 000-255 LED 4 Blue (0-100% dimming) 192-255 Slow-fast continuous rotation CH21 000-255 LED 4 White (0-100% dimming) 000-127 Tilt 2 Movement (0°-360°) CH22 000-255 LED 5 Red (0-100% dimming) Fast-slow continuous CH23 000-255... - Page 7 Operating instructions Blackout mode: Blackout mode ensures when the fixture loses DMX signal it will blackout. To set the blackout mode, press the “MENU” button on the front of the master unit to show “Blackout” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose “YES” or “NO”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Sound active mode: To access the sound active mode, press the “MENU” button on the front of the unit to show “Sound State” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the sound mode “ON” or “OFF”. Press the “ENTER” button to confirm the setting. To adjust the sound sensitivity, press the “MENU” button on the rear of the unit to show “Sound Sense” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the sound sensitivity between 0-100. Press the “ENTER” button to confirm the setting. Value: 0 - 100 (0 = low sensitivity, 100 = high sensitivity) To exit out of any of the above options, press the “MENU” button. Pan/Tilt restricted movements: To access the sound active mode, press the “MENU” button on the front of the unit to show “Pati Mode” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between the following: “PanTilt Angle 1”...
- Page 8 Operating instructions Fixture time: To display the total hours the fixture has been used for, press the “MENU” button on the front of the unit to show “Fixture Time” on the LCD display. Now press the “ENTER” button to show the fixtures hours. To exit out of any of the above options, press the “MENU” button. Firmware version: To display the firmware version the fixture is running, press the “MENU” button on the front of the unit to show “Firmware Version” on the LCD display. Now press the “ENTER” button to show the what version the fixture is running. To exit out of any of the above options, press the “MENU” button. Factory reset: To reset the fixture to factory settings, press the “MENU” button on the front of the unit to show “Defaults” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose “YES” or “NO”. Press the “ENTER” button to confirm the setting (this will reset all settings to factory defaults). To exit out of any of the above options, press the “MENU” button. Fixture position reset: To reset the fixtures positions, press the “MENU” button on the front of the unit to show “System reset” on the LCD display. Now press the “ENTER” button to perform the reset. To exit out of any of the above options, press the “MENU” button. Pan/tilt offset: To adjust the pan/tilt in the home position, press the “MENU” button on the front of the unit once, now press and hold the “ENTER” button until “Pan Offset” is shown on the LCD display. Use the “UP” and “DOWN” buttons to select “Pan Offset”, “Tilt 1 Offset” (Top Bar) or “Tilt 2 Offset” (Bottom Bar). Press the “ENTER” button and use the “UP” and “DOWN” buttons again to adjust the home position between “-127”...
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Dragonfly Quad User Manual... - Page 12 www.prolight.co.uk Dragonfly Quad User Manual...
