Compucessory 25654 Manual

425va/230w ups backup system

Advertisement

IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions.
Please read and follow all instructions carefully during
installation and operation of unit. Read this manual
thoroughly before attempting to unpack, install, or operate.
CAUTION! To prevent the risk of fire or electric shock,
install in a temperature and humidity controlled indoor
area, free of conductive contaminants. (Please see
specifications for acceptable temperature and humidity
range).
CAUTION! To reduce the risk of electric shock, do not
remove the cover except to service the battery. No user
serviceable parts inside except for battery.
CAUTION! Hazardous live parts inside can be energized
by the battery even when the AC input power is
disconnected.
CAUTION! UPS must be connected to an AC power

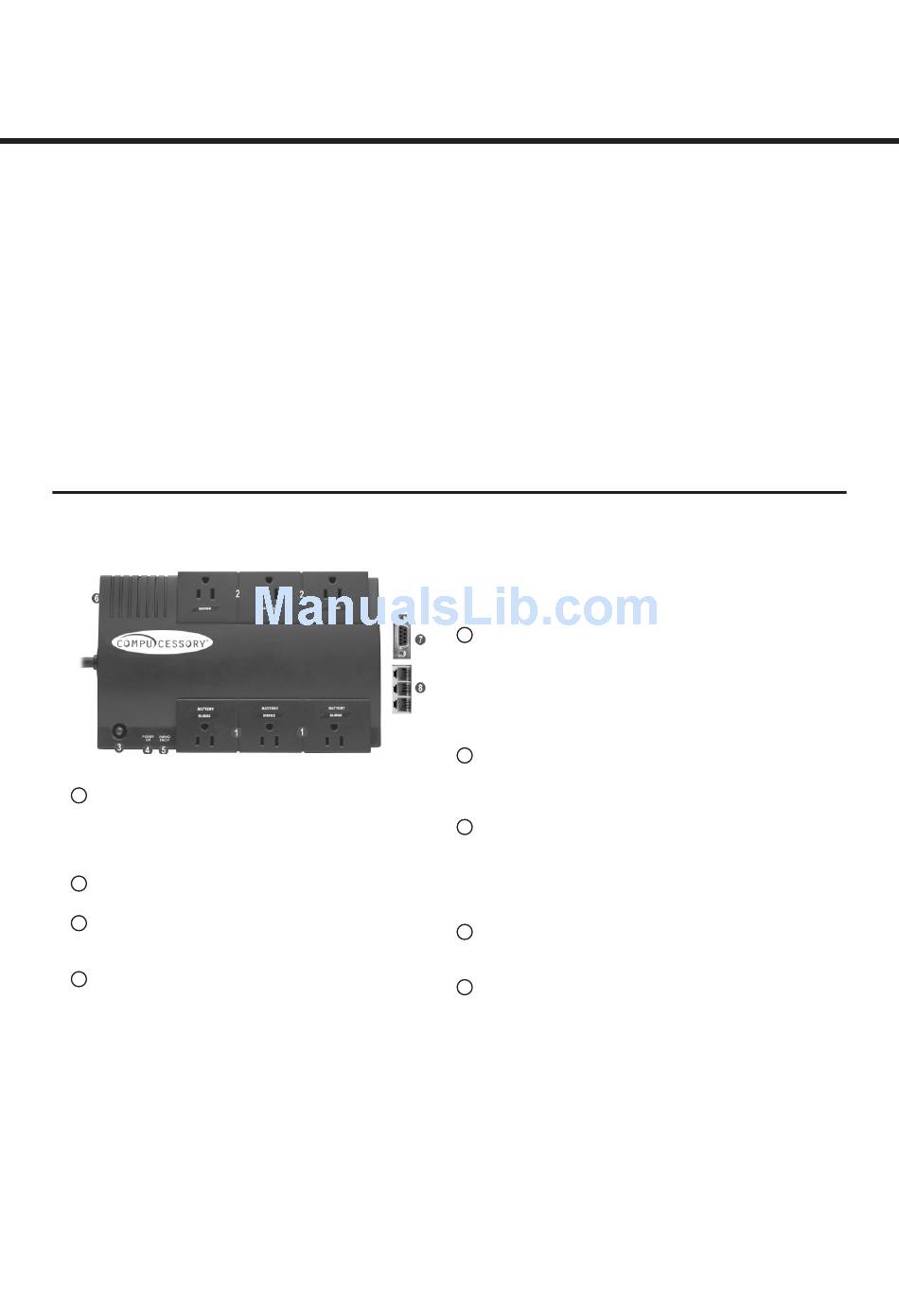

DESCRIPTION
Battery/Surge Outlets
1
Provides
three
battery
for connected equipment and insures temporary
uninterrupted operation of your equipment during a
power failure.
Full-Time Surge Protection Outlets
2
Provides three always on surge suppression outlets.
Power Switch
3
Can be used as a mater on/off switch for equipment
connected to the battery power supplied outlets.
Power On Indicator
4
This LED is illuminated when the utility condition is
normal and the UPS outlets are providing power, free of
surges and spikes.
INSPECTION
The box should contain the following:
(1) PowerPanel™ software (floppy disk); (1) serial interface cable (DB-9);
(1) telephone communication cable; (1) user manual;
(1) USB adapter ; (1) UPS unit.
powered/surge
outlets

425VA/230W UPS Backup System
outlet with fuse or circuit breaker protection. Do not plug
into an outlet that is not grounded. If you need to de-
energize this equipment, turn off and unplug the unit.
CAUTION! To avoid electrical shock, turn off the unit and
unplug it from the AC power source before servicing the
battery or installing a computer component.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT
EQUIPMENT! Does not sell products for life support or
medical applications. DO NOT use in any circumstance
that would affect operation or safety of any life support
equipment or with any medical applications or patient
care.
DO NOT USE WITH OR NEAR AQUARIUMS! To
reduce the risk of fire or electric shock, do not use with or
near an aquarium. Condensation from the aquarium can
cause the unit to short out.
Electrical Wiring Fault Indicator
5
This LED indicator will illuminate to warn the user that a
wiring problem exists, such as bad ground, miss ground
or reversed wiring. If this is illuminated, user is advised
to disconnect all electrical equipment from the outlet and
have an electrician check to ensure the outlet is properly
wired.
Circuit Breaker
6
Located on the side of the UPS, the circuit breaker serves
to provide overload and fault protection. Under normal
operating conditions, the circuit breaker is depressed.
Serial Port to PC
7
This port allows connection and communication from
the DB-9 serial port on the computer to the UPS unit.
The UPS communicates its status to the PowerPanel™
software. This interface is also compatible with the UPS
service provided by Windows NT and Windows 2000.
Communication Protection Ports
8
Communication protection ports will protect any standard
modem, fax or telephone line.
Outlets Designed for AC Adapters
9
Allows six AC power adapter blocks to be plugged into
the UPS without blocking adjacent outlets.
Model: 25654

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25654 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Compucessory 25654

  • Page 1 Model: 25654 425VA/230W UPS Backup System IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS) outlet with fuse or circuit breaker protection. Do not plug This manual contains important safety instructions. into an outlet that is not grounded. If you need to de- Please read and follow all instructions carefully during energize this equipment, turn off and unplug the unit.
  • Page 2: How To Determine The Power Requirements Of Your Equipment

    2. Insure that the equipment plugged into the three battery power-supplied outlets does not exceed the UPS unit’s rated capacity(425VA/230W for model # 25654). If rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down and the circuit breaker to trip.
  • Page 3: Installation Guide

    Model: 25654 425VA/230W UPS Backup System Files that have previously been saved will be saved in their original location. PowerPanel™ is equipped with a Scheduled Shutdown feature which can automatically save and close open files and then shutdown the computer and UPS at a user specified date and time. Use of this feature is optional and is not required for the power failure shutdown to occur.
  • Page 4 For Windows XP (Home and Professional) . Click on Start, and then click on Control Panel. 2. Double-click on Power Options, and then click the UPS tab. 3. Set the manufacturer to None. 4. Exit to the desktop and then shutdown your computer. 5.
  • Page 5 Model: 25654 425VA/230W UPS Backup System PowerPanel™ Log Window (See Figure 3 ) 1. Display Window: This area displays either the 5. Cancel: This button is used to exit the log window Event Log or the Closed Application Information. without saving any changes.
  • Page 6: Replacing The Battery

    Please note: This service must be stopped in order to run PowerPanel™. To disable the service, set the Manufacturer to None. Please note: You must be logged on as an administrator or a member of the administrator’s group to make these changes.
  • Page 7: Definitions For Illuminated Led Indicators

    Model: 25654 425VA/230W UPS Backup System 7. Disconnect the battery wires from the battery. 8. Install the replacement battery by connecting the red wire to the positive (+) terminal of the battery and connecting the black wire to the negative (-) terminal of the battery.
  • Page 8: Troubleshooting

    The serial cable is not the cable You must use the serial cable that was enclosed that was included with the with the unit for the software and unit to be able to UPS unit. communicate. Additional troubleshooting information can be found at www.compucessory.com...
  • Page 9: Specifications

    Model: 25654 425VA/230W UPS Backup System SPECIFICATIONS 25654 Capacity 425VA(230W) Input Voltage on Utility 00V to 40V Input Frequency 57 Hz to 63 Hz On-Battery Output Voltage 20Vac ± 5% Transfer Time 4ms Typical Max. Load for UPS Outlets (3...
