Summary of Contents for SCHUSTER SWG

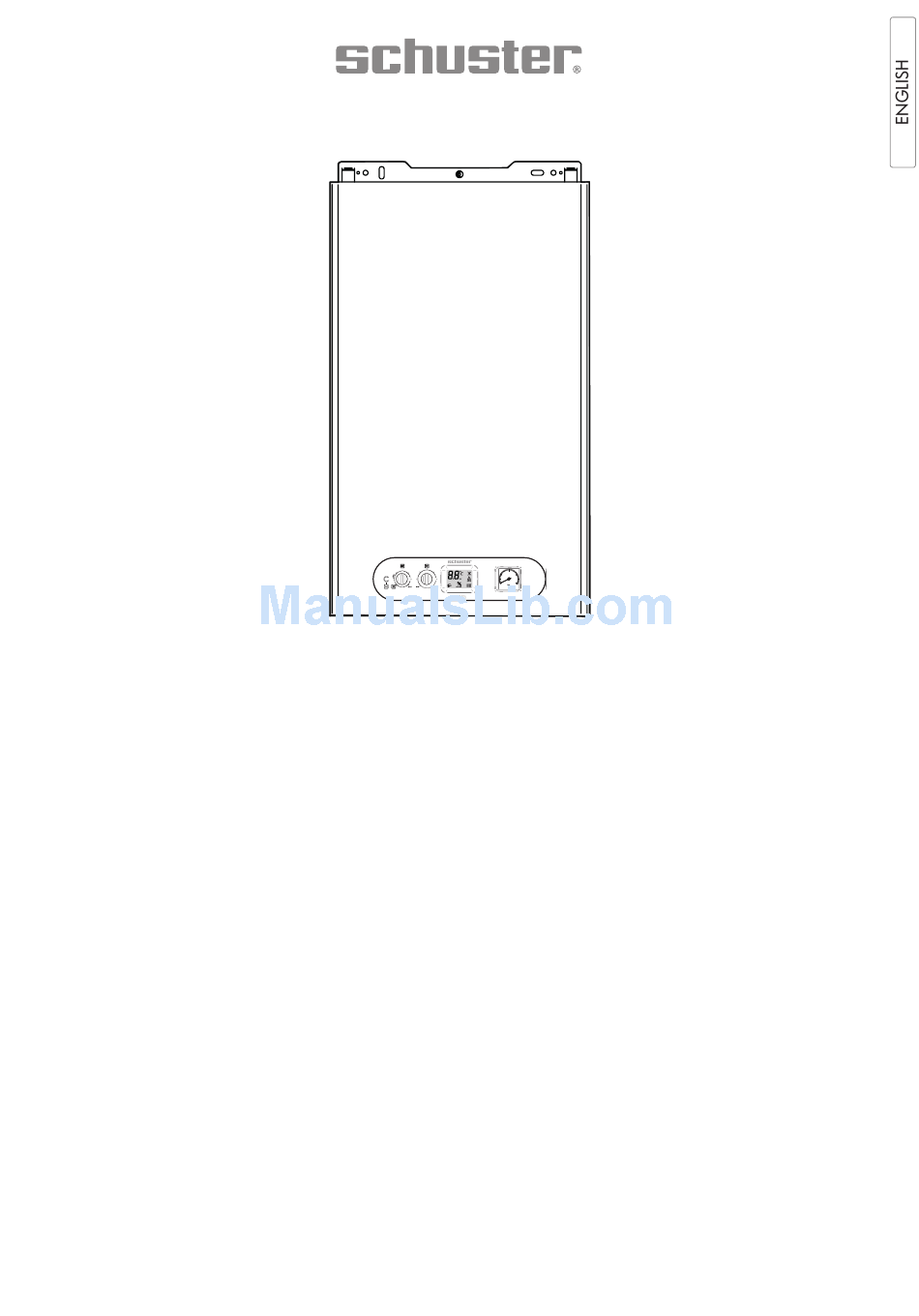

- Page 1 uSER’S OPERATION INSTRuCTION...
-
Page 2: Safety Warnings
SAFETY WARNINGS CAUTION! The appliance may only be used by adults after reading the installation and servicing manual thoroughly. Children must be supervised to prevent them from playing or tampering with the appliance CAUTION! The appliance must be installed, adjusted and maintained by professionally qualified personnel, in compliance with the standards and provisions in force. -
Page 3: Symbols Used In The Manual
2 - APPROPRIATE USE OF APPLIANCE The SWG boiler has been built according to the current level of engineering and acknowledged technical safety rules. Nonetheless, if improperly used, dangers could arise for the safety and life of the user and other persons or damage to the equipment or other objects. -
Page 4: Control Panel

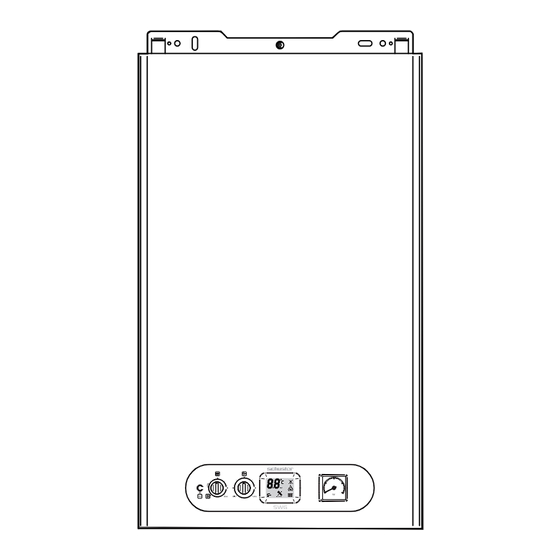

6 - OPERATING INSTRUCTIONS 6.1 - CONTROL PANEL Pressure gauge Summer/Winter Selector + Room heating temperature regulator (request from ON-OFF thermostat) Domestic hot water temperature regulator Unblock/calibration/diagnosis button service Information display Heating function active Domestic hot water function active Block symbol Fault symbol Burner in operation symbol Temperature of fault code indication ROOM THERMOSTATS: B - Summer / Winter Selector + Attention! The adjustment refers to the Heating temperature regulator... -
Page 5: Checks Before Commissioning
L - Burner in operation signal D - Unblock button This symbol indicates that the burn- By acting on this button for < 1 sec. er is in operation. one can: The symbol lights up when the boil- er receives a request for heating or domestic hot water production. F - Operation in heating mode - restart the boiler after the burner The symbol lights up when the... -
Page 6: Operation
6.3 - OPERATION Domestic hot water production Heating (Summer Mode) discharge Make sure that the selector (B) is For operation in heating mode the positioned on ( knob (B) must be positioned in the field shown in the figure, - In correspondence of MIN the temperature is minimum = 45°C. Position the domestic hot water temperature knob (C) on the de- - completely to the right = 78°C... -
Page 7: Eliminating Faults
If water pressure must be con- with and/or exclude the device. tinually restored, contact an Authorised Assistance Centre. Schuster disclaims any liability for damage caused as a result of improper installation, use, Burner ignition block appliance conversion or for non-... - Page 8 Schuster - via Padana Inferiore 52/C - 29012 Caorso (PC) - Italy - e-mail: info@schusterboilers.com - www.schusterboilers.com Schuster - via Padana Inferiore 52/C - 29012 Caorso (PC) - Italy - e-mail: info@schusterboilers.com - www.schusterboilers.com...
