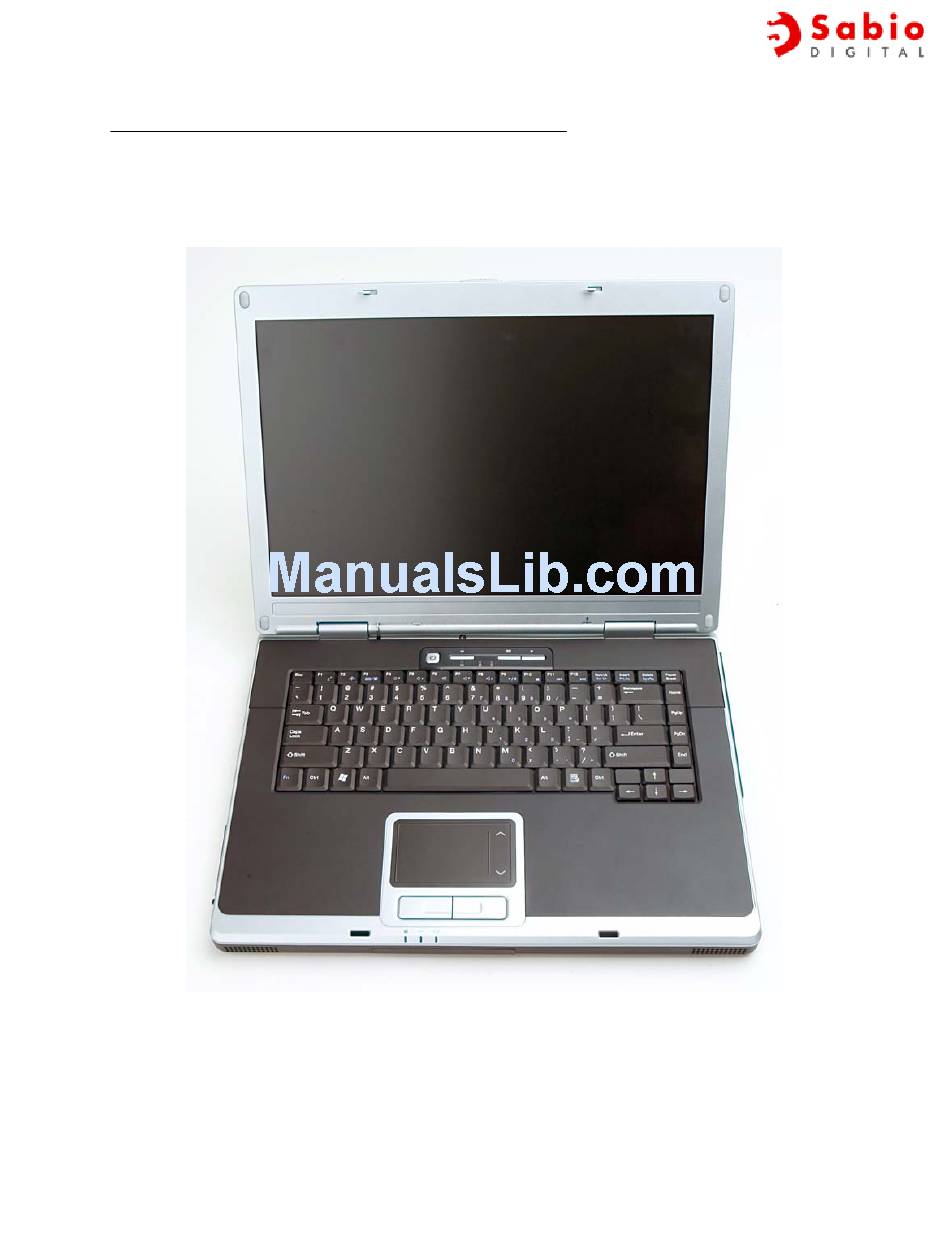

- Page 1 Rev. 1.4 Sabio Digital SD-KN1 Notebook Assembly Guide Rev. 1.4 Sabio Digital KN1 Assembly Guide 1 of 11 www.sabioproducts.com...
-
Page 2: Table Of Contents
Section 9.0 - Installing the Optical Disk Drive........11 Section 10.0 - Wireless LAN Module Installation ........11 Section 11.0 - Battery Pack Installation and Removal......11 Copyright 2005, Sabio Digital, Inc. 5125 Convoy Street, Suite 205 San Diego, CA 92111 Office 858-715-0070 –... -
Page 3: Section 1.0 - Overview
Section 3.0 - Barebones Package Contents Every Sabio Digital barebones system comes complete with the following system and system components: KN1 Barebones System*... -
Page 4: Section 3.1 - Screw Kit Contents
Rev. 1.4 Check package contents to ensure that all parts have been included. If any parts are missing, please contact Sabio Digital at 858-715-0070 or send an email to support@sabioproducts.com. In addition, drivers and a downloadable version of this manual are available at http://www.sabioproducts.com. -
Page 5: Section 4.0 - System Component Locator
Board Connector Optical Disk Drive Bluetooth Bay Wireless Battery Hard Disk Drive Illustration 4a – Bottom View Wireless LAN Antenna Optical Disk Drive Keyboard Keyboard Opening Illustration 4b – Top View Sabio Digital KN1 Assembly Guide 5 of 11 www.sabioproducts.com... -
Page 6: Section 5.0 - Cpu, Thermal Module, & Discrete Graphics Installation
NI Nylock) with a Phillips screwdriver. (#4, Illustration 5) Illustration 5 – CPU, Thermal Assembly, and Discrete Graphics 11. Install memory module(s) before replacing CPU thermal assembly cover. (See Section 6.0 – Memory Module Installation) Sabio Digital KN1 Assembly Guide 6 of 11 www.sabioproducts.com... -
Page 7: Section 6.0 - Memory Module Installation
Rev. 1.4 Section 6.0 - Memory Module Installation There are two memory expansion SODIMM slots on the SD-KN1 notebook, and the notebook comes standard with no memory installed. The memory capacity is upgradeable up to 2GB using two 1025MB memory modules. To install a memory module follow these basic steps: 1. -
Page 8: Section 7.0 - Keyboard Installation
4. With the keyboard lying on top of the palm rest, insert the keyboard cable into the keyboard connector on the motherboard. (#2, Illustration 7b) 5. Lock keyboard connector on each end by hand or with a small flathead screwdriver. (#1 & #3, Illustration 7b) Sabio Digital KN1 Assembly Guide 8 of 11 www.sabioproducts.com... - Page 9 10. Re-fasten two screws (M2.5x4.0) to the back (port side) of each hinge to secure the keyboard cover as shown in Illustration 7e. Illustration 7d – Keyboard Screws Illustration 7e– Location of Keyboard Hinge Screws Sabio Digital KN1 Assembly Guide 9 of 11 www.sabioproducts.com...
-
Page 10: Section 8.0 - Hard Disk Drive Installation
3. Using a small Phillips screwdriver, secure the hard drive by re-fastening two screws (M2.5x6.0-I) to the hard drive door. (Illustration 8c) llustration 8c – Cover Screws Screws Sabio Digital KN1 Assembly Guide 10 of 11 www.sabioproducts.com... -
Page 11: Section 9.0 - Installing The Optical Disk Drive
2. To remove the battery pack, turn the notebook upside down and at the same time, slide the battery latch open and then lift out the battery pack. Sabio Digital KN1 Assembly Guide 11 of 11 www.sabioproducts.com...
