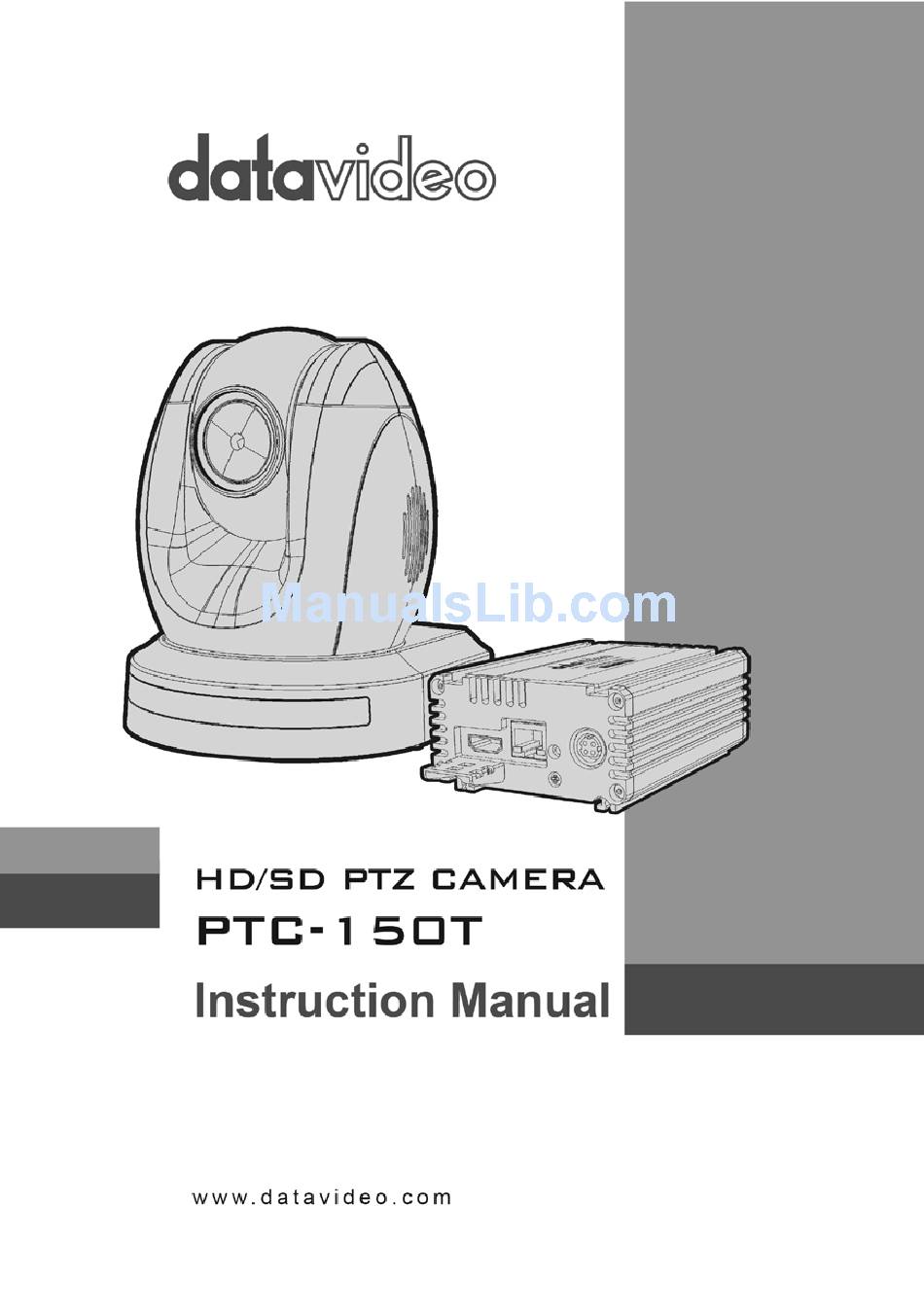

Data Video PTC-150T Instruction Manual

Hide thumbs Also See for PTC-150T:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTC-150T and is the answer not in the manual?

Questions and answers

Related Manuals for Data Video PTC-150T

Summary of Contents for Data Video PTC-150T

  • Page 2: Table Of Contents

    Table of Contents WARNINGS AND PRECAUTIONS ............4 WARRANTY ....................5 ..................5 TANDARD ARRANTY ..................5 ARRANTY DISPOSAL ....................5 1. PRODUCT OVERVIEW ................. 6 2. FEATURES ..................... 6 3. LOCATION AND FUNCTION OF PARTS ..........7 4. CONNECTIONS ..................8 4.1 C ...............
  • Page 3 9.1 DVIP S ....................28 ETUP 9.2 DVIP C ..............31 ONTROL PERATION UIDE 10. RS-422 CONTROL PROTOCOL ............42 10.1 RS-422 PIN D ................ 42 ESCRIPTIONS 10.2 RS-422 C ............42 ONTROL PERATION UIDE 10.2.1 Overview of VISCA ................. 42 10.2.2 VISCA Communication Specifications ..........

  • Page 4: Warnings And Precautions

    Warnings and Precautions Read all of these warnings and save them for later reference. Follow all warnings and instructions marked on this unit. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Do not use this unit in or near water.

  • Page 5: Warranty

    Warranty Standard Warranty • Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty. •...

  • Page 6: Product Overview

    1. Product Overview The PTC-150T HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or a tabletop. The camera is equipped with HDBaseT Technology for remote control purpose, video image conveyance, power transmission and Ethernet connection. The camera captures HD video at 1920 x 1080 resolution, and features wide dynamic range with backlight compensation.

  • Page 7: Location And Function Of Parts

    3. Location and Function of Parts Front of Camera Lens Built-in 1/2.8” 2.14M Pixel CMOS HD color camera with white balance control, backlight compensation settings, automatic gain settings and etc. Tally LED Tally lamp lights up when tally signal has been transmitted to the tally signal box.

  • Page 8: Connections

    DC In plug to the socket. HDMI OUT Connection to Monitor Display DVIP Communication Port Warning: Please do not plug the 48V power adapter into the PTC-150T Camera DC-IN Socket.

  • Page 9: System Diagram

    5. System Diagram...

  • Page 10: Remote Control And On-Screen Menu

    6. Remote Control and On-Screen Menu 6.1 Remote Control Functions Item Description Press RESET button to Reset return the camera lens to the front. Use the No. bottom & the group bottom to select the group scan. Group Press any of the No. buttons 1~8 and then press GROUP button.
  • Page 11 GROUP button. Return Camera Lens back to Front Press number 0 and then press PRESET button. Focus Setup Manually focus camera lens on a subject Press either (F) FAR button or (N) NEAR button to manually focus the camera lens onto the subject. Automatically focus camera lens on a subject Press A/ FOCUS button.
  • Page 12 Change camera direction Press arrow buttons to change the direction of the camera head Stop Preset Point Auto Scan mode Press any of the DIRECTION buttons Direction Arrows Select Menu Option Press UP or DOWN button to select the menu option Adjust P/T Speed Press UP or DOWN button to adjust the PAN/TILT Speed Enter Sub-Menu Option...

  • Page 13: On-Screen Menu

    6.2 On-Screen Menu On-Screen Menu allows the user to change various camera settings such as shooting conditions and the system setup. Press [Menu] on the remote control to enter the on-screen menu as shown below. On-Screen MENU 1: Camera Set (Normal) 2: Memory 3: Video Output 4: Remote Control...
  • Page 14 Details of all options in the on-screen menu are listed in the table below. First Level Second Level Third Level Fourth Level Sub-Option Main Options Sub-Options Parameters Parameters Descriptions NAME DISPLAY SW ON/OFF 1. Camera Name LOWER LEFT POSITION UPPER RIGHT ESCAPE 2.
  • Page 15 12 dB 15 dB 18 dB 21 dB 24 dB 27 dB 30 dB 33 dB 36 dB 39 dB ESCAPE DNR (AT AGC ON) DNR LEVEL ESCAPE ESCAPE 7. Escape 1-50 1. Preset Position ESCAPE PRESET NO. 1~50 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18...
  • Page 16 GROUP – 4 GROUP – 5 GROUP – 6 GROUP – 7 GROUP – 8 ESCAPE 17. ESCAPE PRESET NO. 1~50 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18 WAITING TIME 0~180 NEXT TIME RETURN GROUP – 1 GROUP – 2 1-16 GROUP –...
  • Page 17 ESCAPE 17. ESCAPE PRESET NO. 1~50 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18 WAITING TIME 0~180 NEXT TIME RETURN GROUP – 1 GROUP – 2 1-16 GROUP – 3 7. Group – 6 NEXT POSITION GROUP – 4 GROUP – 5 GROUP –...
  • Page 18 10. Escape BY MENU 1. Selection Way BY SWITCH 1080i60 1080i50 720p60 720p50 2. Video Mode 1080p30 3. Video 1080p25 Output 1080p60 1080p50 16:9 3. CV Mode 4. Pattern COLOR BAR 5. Escape 1. PAN/TILT Reverse RS-422, SW 2. Remote (Configurable using Source bottom DIP switch ONLY)
  • Page 19 PWR ON CAM TEST ON/OFF ESCAPE PAN torque ADJ +1~+5 TILT torque ADJ +1~+5 +5.4 +4.5 +3.6 +2.7 +1.8 +0.9 PAN offset ADJ -0.9 -1.8 -2.7 -3.6 -4.5 -5.4 2. Set Motor +6.3 +5.4 +4.5 +3.6 +2.7 +1.8 +0.9 TILT offset ADJ -0.9 -1.8 -2.7...
  • Page 20 2. Mirror AWB (AUTO) AWC (ONE PUSH) MWB (MANUAL) MODE 3200K (INDOOR) 6500K (OUTDOOR) 4200K (FLUO) 3. White SMART ATW Balance (Enabled in AWB (AUTO) SMART1~3 mode) MWB RED COMPONENT 0~128~255 MWB BLUE COMPONENT 0~128~255 ESCAPE AUTO FOCUS MODE MANUAL AF SENSITIVITY NORMAL 4.
  • Page 21 33 dB 36 dB 39 dB ESCAPE DNR(AT AGC ON) DNR LEVEL ESCAPE FOG CORRECTION OFF/ON 7. Fog Correction ESCAPE 8. Aperture 0~15 9. Vivid Effect 0~14 10. Pedestal 0~14 Effect OFF/ON 11. Backlight (This option is enabled Correction after AGC is turned on) 12.

  • Page 22: Instruction For Installation

    7. Instruction for installation 7.1 Step 1 – DIP Switch Setting Set the Mirror option to H+V mode. 7.2 Step 2 – One End of Mounting Wire Attach the mounting wire to the junction box mounted on the ceiling by screwing one end of the mounting wire into a screw hole in the junction box with a screw (not supplied) as shown in the diagram below.

  • Page 23: Step 4 - Ceiling Bracket (A) And Camera

    7.4 Step 4 – Ceiling Bracket (A) and Camera Screw ceiling bracket (A) into the bottom of the camera using three screws. • Position the screws as shown in the diagram below • • Align the screw holes on the bottom of the camera with those in the ceiling bracket.

  • Page 25: Step 5 - Mount Camera To Ceiling

    7.5 Step 5 – Mount Camera to Ceiling...

  • Page 26: Step 6 - Screw To Secure Camera

    7.6 Step 6 – Screw to Secure Camera Secure the camera by screwing three screws into the corresponding screw holes as shown in the diagram below. 7.7 Step 7 – Cable Connection Connect the cables to the connectors located on the rear of the camera.

  • Page 27: Dip Switch Settings

    8. DIP Switch Settings 8.1 RS-422 Setting VISCA ID (1,2,3) = (ON,OFF,OFF) VISCA-ID 1 (1,2,3) = (OFF,ON ,OFF) VISCA-ID 2 (1,2,3) = (ON ,ON ,OFF) VISCA-ID 3 (1,2,3) = (OFF,OFF,ON) VISCA-ID 4 (1,2,3) = (ON ,OFF,ON) VISCA-ID 5 (1,2,3) = (OFF,ON ,ON) VISCA-ID 6 (1,2,3) = (ON ,ON ,ON) VISCA-ID 7...

  • Page 28: Dvip Control Protocol

    9. DVIP Control Protocol 9.1 DVIP Setup DVIP is a user interface that allows the user to control multiple PTC-150 cameras remotely. The DVIP setup procedure is outlined as follows: Locate the DIP switch at the bottom of the PTC-150 camera Set DIP Switch positions 1 and 4 to ON Plug in the power cord into the PTC-150 and connect it to a monitor via the HDMI interface.
  • Page 29 Set the DVIP baud rate to to 115200 [SET DVIP] DVIP BAUDRATE: 115200 ESCAPE Connect your PC and the PTC-150 to an Ethernet router, which should automatically assign an IP to the PTC-150 On the PC, open the DVIP Configuration Tool by double clicking “DVIP_ConfigureTools.exe”. The DVIP Configuration Tool can be obtained from the Datavideo local distributors.
  • Page 30 10. On the DVIP Device List, you will then be able to see the Device Name, MAC address and IP address of the connected PTC-150. 11. After the network setting (True Static and DHCP) and the host name are configured, click the “Apply”...

  • Page 31: Dvip Control Operation Guide

    9.2 DVIP Control Operation Guide 9.2.1 Physical Layer Control Interface: Ethernet • • Communication Speed: 10/100Mbps • Control Protocol: TCP/IP 9.2.2 General Connection Information • By default, the DVIP is configured to operate in DHCP mode. User is allowed to re- configure to static IP address.
  • Page 32 Command Return from DVIP device Length Descriptions 1 Byte Data Length High Byte 1 Byte Data Length Low Byte 1 Byte 0x80 1 Byte 0x00 1 Byte DHCP; 0: Disable; 1: Enable 16 Bytes DHCP Host name (15 bytes max) + Null (0x00) terminated 6 Bytes MAC Address 4 Bytes...
  • Page 33 Broadcast Command List – Set DHCP Mode Command Issue to DVIP device Set DHCP Mode Command 0x02 Parameter 1 DVIP MAC address [0] Parameter 2 DVIP MAC address [1] Parameter 3 DVIP MAC address [2] Parameter 4 DVIP MAC address [3] Parameter 5 DVIP MAC address [4] Parameter 6...
  • Page 34 Parameter 14 0x44 Parameter 15 0x52 Parameter 16 IP_Address [0] Parameter 17 IP_Address [1] Parameter 18 IP_Address [2] Parameter 19 IP_Address [3] Parameter 20 Gateway [0] Parameter 21 Gateway [1] Parameter 22 Gateway [2] Parameter 23 Gateway [3] Command Return from DVIP device Length Descriptions 1 Byte...
  • Page 35 Parameter 3 DVIP MAC address [2] Parameter 4 DVIP MAC address [3] Parameter 5 DVIP MAC address [4] Parameter 6 DVIP MAC address [5] Parameter 7 0x47 Parameter 8 0x45 Parameter 9 0x54 Parameter 10 0x5F Parameter 11 0x4D Parameter 12 0x4F Parameter 13 0x44...
  • Page 36 Parameter 6 0x45 Parameter 7 0x51 Command Return from DVIP device Length Descriptions 1 Byte Data Length High Byte 1 Byte Data Length Low Byte 1 Byte 0x80 1 Byte 0x00 1 Byte DHCP; 0: Disable; 1: Enable 16 Bytes DHCP Host name (15 bytes max) + Null (0x00) terminated 6 Bytes MAC Address...
  • Page 37 Parameter 4 0x5F Parameter 5 0x44 Parameter 6 0x48 Parameter 7 0x43 Parameter 8 0x50 Parameter 9 0x4D Parameter 10 0x4F Parameter 11 0x44 Parameter 12 0x45 Parameter 13 0x00: Disable; 0x01: Enable Command Return from DVIP device Length Descriptions 1 Byte 0x00 (Data Length High Byte) 1 Byte...
  • Page 38 UDP Command List – Reset to Factory Default Command Issue to DVIP device Reset to Factory Default Command 0x04 Parameter 1 0x52 Parameter 2 0x45 Parameter 3 0x53 Parameter 4 0x45 Parameter 5 0x54 Command Return from DVIP device Length Descriptions 1 Byte 0x00 (Data Length High Byte)
  • Page 39 UDP Command List – Set Netmask Command Issue to DVIP device Set Netmask Command 0x0B Parameter 1 0x53 Parameter 2 0x45 Parameter 3 0x54 Parameter 4 0x5F Parameter 5 0x4E Parameter 6 0x45 Parameter 7 0x54 Parameter 8 0x4D Parameter 9 0x41 Parameter 10 0x53...
  • Page 40 Command Return from DVIP device Length Descriptions 1 Byte 0x00 (Data Length High Byte) 1 Byte 0x05 (Data Length Low Byte) 1 Byte 0x81 1 Byte 0x0C 1 Byte 0x06 (ACK) or 0x15 (NACK) UDP Command List – Set Primary DNS Address Command Issue to DVIP device Set Gateway Address Command...
  • Page 41 Parameter 11 Secondary_DNS_IP [0] Parameter 12 Secondary _DNS_IP [1] Parameter 13 Secondary _DNS_IP [2] Parameter 14 Secondary _DNS_IP [3] Command Return from DVIP device Length Descriptions 1 Byte 0x00 (Data Length High Byte) 1 Byte 0x05 (Data Length Low Byte) 1 Byte 0x81 1 Byte...

  • Page 42: Rs-422 Control Protocol

    10. RS-422 Control Protocol 10.1 RS-422 PIN Descriptions Camera Controller 10.2 RS-422 Control Operation Guide 10.2.1 Overview of VISCA In VISCA, the side outputting commands, for example, a computer is called the controller, while the side receiving the commands, such as a PTC-150, is called the peripheral device. The PTC-150 serves as a peripheral device in VISCA.

  • Page 43: Visca Communication Specifications

    When the address of the controller is fixed at 0 The addresses of the peripheral devices are 1, 2, 3… in order, starting from the one nearest the controller. The address of the peripheral device is set by sending address commands during the initialization of the network.

  • Page 44: Timing Chart

    Fig. 2 Packet structure Note Fig. 2 shows the packet structure, while Fig. 3 shows the actual waveform. Data flow will take place with the LSB first. Fig. 3 Actual waveform for 1 byte 10.2.2.2 Timing Chart As VISCA Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned.
  • Page 45 From this point, if 2 or more commands in a row are to be sent, wait for the first command (for normal commands, an ACK or an error message, for query commands, an Inquiry Packet) to be carried out before sending the next one. 10.2.2.3 Command and inquiry Command •...

  • Page 46: Visca Device Setting Command

    10.2.2.5 Socket number When command messages are sent to the PTC-150, it is normal to send the next command message after waiting for the completion message or error message to return. As the completion message or error message also has a socket number, it indicates which command has ended.

  • Page 47: Visca Camera-Issued Messages

    81 09 05 38 FF 90 60 02 FF Accepted an (Example) (Syntax Error) incompatible command. Address Set 88 30 01 FF 88 30 02 FF Returned the device address to +1.* IF_Clear 88 01 00 01 FF 88 01 00 01 FF Returned the same (Broadcast) command.

  • Page 48: Ptc-150 Commands

    10.2.6 PTC-150 Commands 10.2.6.1 PTC-150 Command List Command Set Command Command Packet Comments AddressSet Broadcast 88 30 01 FF Address Set IF_Clear Broadcast 88 01 00 01 FF I/F Clear CAM_Power 8x 01 04 00 02 FF Power On/Off 8x 01 04 00 03 FF CAM_ZOOM Stop 8x 01 04 07 00 FF...
  • Page 49 mode Shutter Priority 8x 01 04 39 0A FF Shutter priority automatic exposure mode Iris Priority 8x 01 04 39 0B FF Iris priority automatic exposure mode Bright 8x 01 04 39 0D FF Bright mode (Manual) CAM_Shutter Reset 8x 01 04 0A 00 FF Default Shutter setting 8x 01 04 0A 02 FF...
  • Page 50 Home 8x 01 06 04 FF Reset 8x 01 06 05 FF CAM_ImgFlip 8x 01 04 66 02 FF 8x 01 04 66 03 FF Cam_PanReverse 8x 01 7E 01 06 00 01 FF 8x 01 7E 01 06 00 00 FF Cam_TiltReverse 8x 01 7E 01 09 00 01 FF 8x 01 7E 01 09 00 00 FF...
  • Page 51 rstu: ROM version vw: Socket Number (02) CAM_ImgFlipInq 8x 09 04 66 FF y0 50 02 FF y0 50 03 FF CAM_PanReverseInq 8x 09 7E 01 06 y0 50 01 FF y0 50 00 FF CAM_TiltReverseInq 8x 09 7E 01 09 y0 50 01 FF y0 50 00 FF PanTilt_Status...

  • Page 52: Firmware Update

    11. Firmware Update Copy three image files, p150mcpu.bin, P150FPGA.bin and p150mctl.bin, into the root directory of a USB hard drive (<16 GB) and insert it into the USB port of PTC-150 (You may also use USB extension cord). Open the operation menu of IR remote controller (select from CAM 1-4; default is CAM1) Main Menu =>...

  • Page 53: Dimensions

    12. Dimensions Unit: mm...

  • Page 55: Specifications

    13. Specifications Video Image Pickup Element 1/2.8” type progressive scan CMOS sensor Effective Picture Elements Approx. 2.14 Mega pixels Resolution HD / FHD / SD (CVBS only) HDMI & SDI: 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p, 1080/50p, 1080/50i, 1080/25p, 720/50p Signal System CVBS: 480i, 576i S/N Ratio 50 dB...
  • Page 56 Video Output HDMI (V1.3) x 1 HD-SD-SDI x 1 Video Output CVBS x 1 HDBaseT x 1 to PTC-150T Receiver Box Video Format Output 1 Vp-p / 75 Ohms Control Protocol VISCA / HDbaseT Remote Control RS-422 & HDBaseT by RJ-45 interface F/W Update USB 2.0...

  • Page 57: Service And Support

    14. Service and Support...
