User Guide / Guía del Usuario

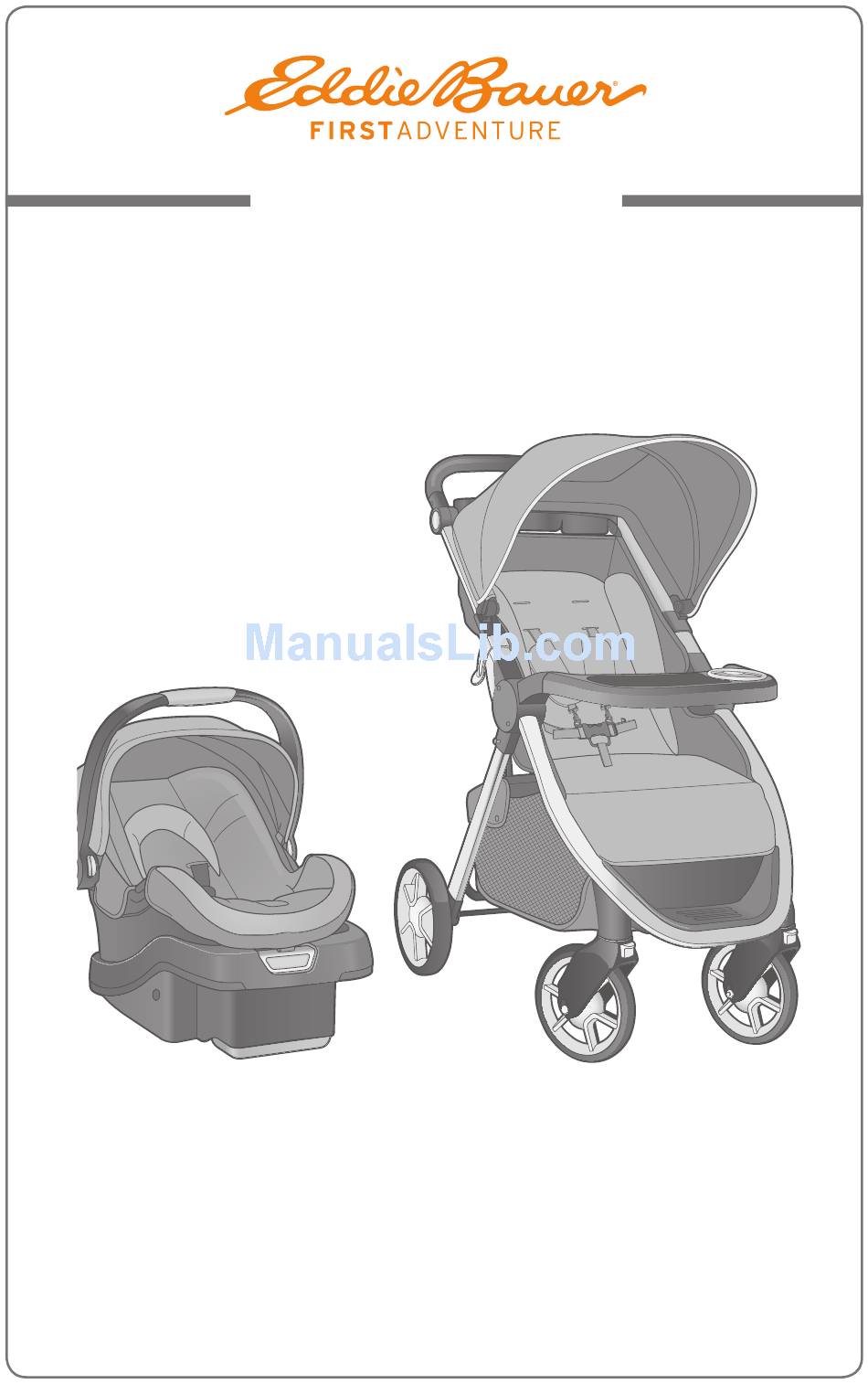

Alpine 4 Travel System
Weight: up to 50 lbs (22.7 kg)
Sistema de viaje "Alpine 4"
Peso: hasta 50 libras (22.7 kg)
Dorel Juvenile Group, Inc. is an authorized licensee of Eddie Bauer Licensing
Services LLC. Eddie Bauer® and the Eddie Bauer logos are the registered
trademarks of Eddie Bauer Licensing Services LLC.
©2015 Dorel Juvenile.
www.djgusa.com (800) 544-1108 www.ebbaby.com
Made in CHINA. Hecho en CHINA.
Styles and colors may vary. Los estilos y los colores pueden variar.
Distributed by (distribuido por) Dorel Juvenile Group, Inc.,
2525 State St., Columbus, IN 47201-7494
Dorel Juvenile Canada, 873 Hodge, St. Laurent, QC H4N 2B1
TR330
03/24/15 4358-6749A
Advertisement
Table of Contents
Summary of Contents for Eddie Bauer Alpine 4 Travel System
- Page 1 Sistema de viaje “Alpine 4” Peso: hasta 50 libras (22.7 kg) Dorel Juvenile Group, Inc. is an authorized licensee of Eddie Bauer Licensing Services LLC. Eddie Bauer® and the Eddie Bauer logos are the registered trademarks of Eddie Bauer Licensing Services LLC.
- Page 2 WARNING: FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE. • Adult assembly required. CAUTION: Keep small parts away from children during assembly. • N EVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller. • AVOID SERIOUS INJURY from falling or sliding out. ALWAYS use seat belt. Check frequently to make sure it is secure. •...
- Page 3 ADVERTENCIA: POR LA SEGURIDAD DE SU HIJO, POR FAVOR LEA LAS SIGUIENTES ADVERTENCIAS E INSTRUCCIONES DE ENSAMBLE, Y GUÁRDELAS PARA CONSULTA FUTURA. • El armado debe ser realizado por un adulto. PRECAUCIÓN: Durante el armado, mantenga las piezas pequeñas fuera del alcance de los niños. • NUNCA DEJE AL NIÑO SIN SUPERVISIÓN. SIEMPRE mantenga al niño a la vista cuando esté en la carriola. •...
- Page 4 Parts / Lista de piezas car seat (not shown) parent tray autoasiento (no se muestra) charola para los padres canopy capota child tray charola para el niño 1 rear axle 1 eje trasero 2 rear wheels 2 ruedas traseras 2 cotter pins 2 pasadores de chaveta 2 plastic washers (1 for...
- Page 5 Assembly / Armado Unfold Stroller Use one hand to release latch (Figure 1) and the other hand to pull up on handlebar (Figure 1a). Stroller will click when complete- ly open and locked. Abra la carriola Utilice una mano para abrir la cubierta (Figura 1) y la otra mano para levantar el manillar (Figura 1a).
- Page 6 Assembly / Armado NOTE: Hardware for rear wheel assembly is located on axle. Rear Wheels Helpful Hint: For ease of removal and assembly of cotter pin use needle nose pliers. Remove cotter pin and one metal washer from axle leaving one plastic washer on the axle.
- Page 7 Assembly / Armado Parent’s Tray Align posts with holes on par- ent tray. Snap parent’s tray onto handlebar tubes (Figure 4). Charola para los padres Alinee los puntales con los orificios en la charola para los padres. Encaje la charola para los padres en los tubos del asa del manubrio (Figura 4).
- Page 8 To Use / Para Uso Brakes Lock Brakes: Step down onto brake levers on both rear wheels (Figure 1). To park stroller, BOTH BRAKES MUST BE LOCKED. Unlock Brakes: Lift up levers to unlock brakes. Engage Front Swivel Lock Slide lever up with your hand to keep dual wheel from swiveling.
- Page 9 To Use / Para Uso WARNING • For proper installation of the restraint system, make sure both anchors lay flat against the back board. • NEVER use stroller without BOTH restraint and crotch straps. ADVERTENCIA • Para la instalación correcta del sistema de correas, asegúrese de que ambos anclajes queden planos contra la tablilla del respaldo.
- Page 10 To Use / Para Uso Restraint System Place your child in the stroller, with the crotch strap between the child’s legs. Fasten both buckles (Fig- ure 5). Tighten waist and shoulder straps snugly around your child (Figure 5a). Shoulder straps: To tighten, loosen strap at (A) and slide buckle up (Figure 5b).
-
Page 11: To Fold Stroller
To Use / Para Uso To Fold Stroller Lock rear brakes. Remove your baby. Find LIFT TO FOLD handle under pocket on seat (Figure 6). Lift up on the fold handle and the stroller will col- lapse to folding position (Figures 6 and 6a). - Page 12 To Use / Para Uso To Install Infant Car Seat Para instalar los autoasientos de bebé WARNING To avoid serious injury: • Use ONLY IC178, IC229, IC210, IC220, IC219, IC226, IC181, IC228, IC211, IC217, IC218, IC224, IC244, IC234, IC230, IC231, IC206, IC207, IC208, IC233, 22056, IC201, IC203, IC205, IC240, 22326, 22036, IC250, IC251, IC252 infant car seats with this stroller.
- Page 13 To Use / Para Uso continued / continuación When properly installed, car seat will come Una vez instalado correctamente, el autoasiento descansará sobre charola para el to rest on child tray and stroller frame (Figure 7c). niño y el armazón de la carriola (Figura 7c). Tire del autoasiento hacia arriba para Pull up on car seat to make sure it is se- asegurarse de que esté...
-
Page 14: Replaceable Parts
To Use / Para Uso Replaceable Parts • Single front wheels • Single rear wheels • Child’s tray • Parent’s tray • Canopy • To order parts call (800) 544-1108. • Include the model number and manufacture date (found on the stroller) and a brief description of the part. - Page 15 Stroller Care and Maintenance • To clean stroller fabric and seat pad, use a sponge or damp cloth with cold water and mild soap. Air dry only. Do not use harsh household cleaners or bleach to clean stroller. • Restraint and crotch straps should be surface washed and air dried only. Do not place in washing machine or dryer.
