Summary of Contents for Millenium SLS300

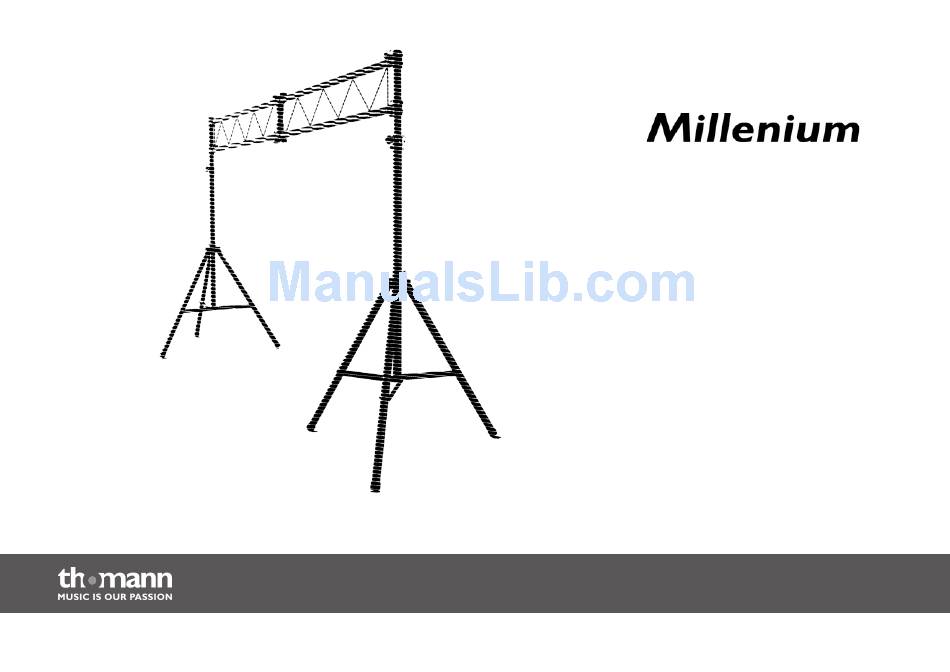

- Page 1 SLS300 lighting stand user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.05.2014, ID: 180075...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features ................................. 9 Operating..............................10 Technical specifications........................26 Protecting the environment......................27 SLS300... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the product. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this product. If you sell the product to another user, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. SLS300...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This light stand is intended to be used for the stable mounting and height-adjustable posi‐ tioning of spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Never let children play unattended with the product. CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. SLS300...
- Page 8 Safety instructions CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 9: Features
Features Features Special features: Quick and easy assembly 3 m wide crossbar, optionally expandable to max. 4.5 m Support height up to 3 m Maximum weight-bearing capacity of the system: 25 kg Maximum weight-bearing capacity per tripod: 18 kg SLS300... -
Page 10: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage. Never exceed the maximum load capacity specified for the stand. SLS300...
- Page 12 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Operating Scope of delivery Before you set up your light stand, check the completeness of the delivery according to the following list: Truss section A (2 ×) T-piece B without bolt (2 ×) SLS300...
- Page 14 Operating Pipe C without screw joint (1 ×) Pipe D with screw joints (2 ×) lighting stand...
- Page 15 Operating T-piece E with bolt (4 ×) SLS300...
- Page 16 Operating Stand F (2 ×) lighting stand...
- Page 17 Operating Allen key SLS300...
- Page 18 Operating Assembly Basically you can carry out the following steps on your own. But with the assistance of a second person the assembly will be much easier. Remove the rubber caps from the ends of the truss sections (A). lighting stand...
- Page 19 Attach the two T-pieces (B) to the ends of the tube (C). Plug the combination of (B) and (C) on the open side of a truss section (A). Then slide the tubes (D) through the T-pieces (B) into truss section (A) and screw the tubes (D). SLS300...
- Page 20 Operating Plug the second truss section on the open end and screw it. lighting stand...
- Page 21 Operating Insert the T-pieces (E) on the outer ends of the two truss sections (A). SLS300...
- Page 22 Operating Secure the T-pieces (E) with the safety pin. lighting stand...
- Page 23 Pull out the extension tube to the desired height and insert the safety pin through the appropriate grid holes. Then slide the safety cotter through the hole of the safety bolt. Fix the position of the extension tube with the safety screw on the extension tube. SLS300...
- Page 24 Operating Plug the truss with the T-pieces on the extension tube of the stands and attach the truss with the hex screws of the T-pieces (E). Install the spotlight(s) if necessary with adapters on the truss. Observe the instructions of the respective manufacturer.
- Page 25 Loosen the screw on the carriage to which the three feet are attached. Fold up the legs of the tripod. Pack all parts of the system in their original package, as possible, and store the package in a dry place protected from moisture. SLS300...
-
Page 26: Technical Specifications
Technical specifications Technical specifications Crossbar 3 m wide, consisting of two truss parts, each 1.50 m, optionally expandable to max. 4.50 m Maximum weight-bearing capacity of the 25 kg system Maximum weight-bearing capacity per tripod 18 kg Maximum support height Total weight of the system 12 kg Colour... -
Page 27: Protecting The Environment
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging. SLS300... - Page 28 Notes lighting stand...
- Page 29 Notes SLS300...
- Page 30 Notes lighting stand...
- Page 32 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
