Summary of Contents for Bergeon 8003-STD
-

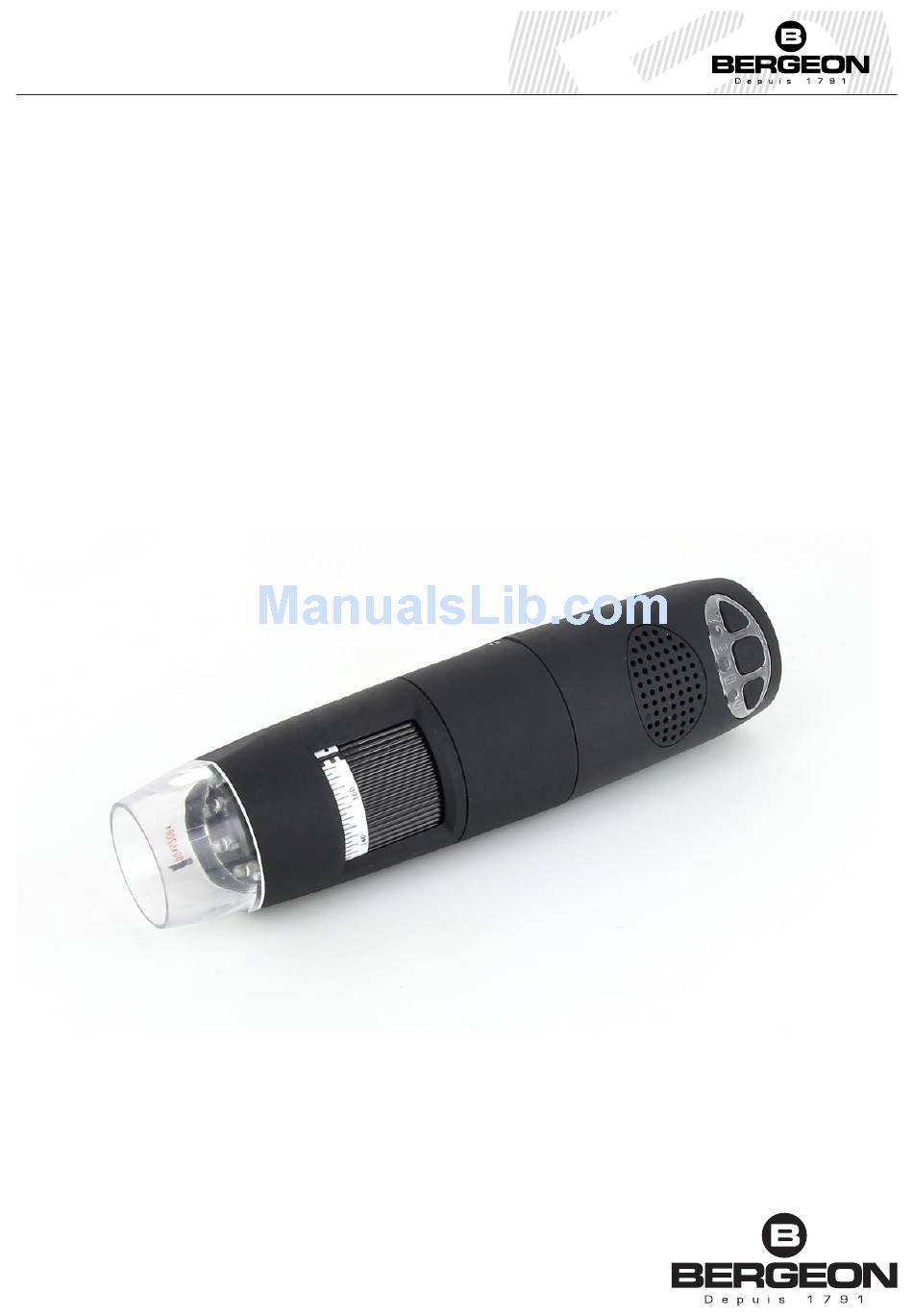

Page 1: User Manual
Bergeon SA Tél. +41 32 933 60 00 www.bergeon.ch 2400 Le Locle / Suisse Fax +41 32 933 60 01 info@bergeon.ch Wi-Fi DIGITAL MICROSCOPE USER’S MANUAL DIGITAL Wi-Fi MICROSCOPE N° 8003-STD USER MANUAL... -
Page 2: Table Of Contents
Mic-Fi User’s Manual SUMMARY SOMMARIO Welcome ....................................2 Safety Cautions .................................. 3 Package Contents ................................3 Use of the microscope ................................ 4 3.1 Charging Instructions ................................4 Working at Wi-Fi Mode ..............................5 4.1 Setting for Internet and Microscope’s Wi-Fi Connection at the same time ................5 4.2 Wi-Fi Security Setup ................................ -
Page 3: Welcome
Mic-Fi User’s Manual Welcome The Wi-Fi digital microscope is an exciting new device that let's you view clear many micro- objects with it, and has a wide scope of applications, such as, Industrial Inspection Computer Parts inspection Telecom module inspection ... -
Page 4: Use Of The Microscope
Mic-Fi User’s Manual 3. Use of the microscope WARNING : LACK OF IMAGE OR SLOW VIDEO ARE THE RESULT OF A LOW BATTERY. BEFORE THE FIRST USE OF THE MICROSCOPE, PLEASE MAKE A CHARGE OF AT LEAST 12 HOURS. Wi-Fi: Press for 2 seconds;... -
Page 5: Working At Wi-Fi Mode
Mic-Fi User’s Manual 4. Working at Wi-Fi Mode Before start the app, please make sure the Wi-Fi microscope has already connect to your display device by Wi-Fi. Install: iPad and iPhone: Search “Mic-Fi” in App Store to download and install it. Smart-Phone Tablet Android: Search “Mic-Fi”... -
Page 6: Wi-Fi Security Setup
Mic-Fi User’s Manual Wi-Fi Security Setup To change the Wi-Fi access password: Open an internet browser, input http://10.10.1.1 and click “enter”. A pop-up window will require you to enter a username and password, please enter: admin and admin, and then this window should appear: Click in the window to pop-up the screen:... -
Page 7: Calibration On Iphone / Ipad
Mic-Fi User’s Manual Calibration on iPhone / iPad To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. Use the enclosed calibration ruler as to-be-observed object. Bring the image into focus by turning the “Focus & Magnification adjustment wheel”;... -
Page 8: Measurement On Iphone / Ipad
Mic-Fi User’s Manual Measurement on iPhone / iPad Line Allows you to measure the linear distance between two points. Simply click and drag to the desired length, and click again to finish. Angle Allows the measurement of an angle. Start at the pivot point and extend out to start measuring an angle. Circle Allows the measurement of the circumference, area, and radius of a circle. -
Page 9: Calibration On Android Table / Phone
Mic-Fi User’s Manual Calibration on Android Table / Phone To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. Use the enclosed calibration ruler as to-be-observed object. Bring photo into focus by turning the “Focus & Magnification wheel”;... -
Page 10: Wi-Fi Microscope On Windows Computer
Mic-Fi User’s Manual 7. Wi-Fi Microscope on Windows Computer After the installation of the software the icon will appear. Click on the icon to run it. Click “Preview” icon and the main screen will display video as below: (it waits about 5 seconds to display video; if the live video is black or slow, please click “Preview”... -
Page 11: Setting Menu
Mic-Fi User’s Manual 7.1.2 Setting Menu Video Setting Setting When you change the resolution, please wait until the illumination LED is off and lights up again before clicking OK - it takes about 5seconds. Change language: The language selection allows you to select the interface language. 7.1.3 Capture Menu Take Picture: Capture a photo... -
Page 12: Help
Mic-Fi User’s Manual Recorder Setting Capture Setting Frame rate: is the number of frames per second that are displayed. The number range is 1~30 Timer limit: is the time of video recording to avoid video file size exceeding the disk space. The number range is 1~99999 ... -
Page 13: Calibration On Windows Systems
Mic-Fi User’s Manual Calibration on Windows Systems To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. 1. To calibrate, select a known measurement standard, such as a ruler, as to-be-observed object. 2. Bring the image of the selected ruler into focus by turning the “Focus &... -
Page 14: Measurement On Windows Systems
Mic-Fi User’s Manual Measurement on Windows Systems Allows you to measure the linear distance between two points. Simply Line measurement click and drag to the desired length, and click again to finish. Allows measurement of a line 90 degree from a certain line. Simply create a line to represent the base by clicking once to start, drag, and Point to Line Measurement then click again to set the endpoint. -
Page 15: Wi-Fi Microscope On Mac Computer
Mic-Fi User’s Manual 8. Wi-Fi microscope on Mac Computer Installation on Mac Computer Installing the software in the OS X 10.8 or later version, the system will pop-up the message as below window You need to set your computer as below: Click Apple icon to pop-up the window on the right, click “System Preference”... -
Page 16: Images On Mac
Mic-Fi User’s Manual Input “Name” and “password” of your system, and click “Unlock” to show the following window: Select “Anywhere” to finish the setting. Now you can install the Software. Double-click the software icon after completing installation. Click “Preview” and then the main screen will display video (it waits about 5 seconds to display the live video;... -
Page 17: Calibration On Mac Computer
Mic-Fi User’s Manual Calibration on Mac Computer To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. 1. To calibrate, select a known measurement standard, such as a ruler, as to-be-observed object. 2. Bring the image of the selected ruler into focus by turning the “Focus &... -
Page 18: Measurement On Mac Computer
Mic-Fi User’s Manual Measurement on MAC Computer To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. Click “Preview “ to resume the live video after finished operation of photo measurement. Allows you to measure the linear distance between two points. Measurement Line Simply click and drag to the desired length, and click again to finish. -
Page 19: Working At Wired Usbmode
Mic-Fi User’s Manual 9. Working at Wired USBMode Install the software for Windows OS or for Mac OS Connect to PC’s USB port with USB cable; the power LED indicator will light, as well as charge indicator LED (Battery is being charged) Launch the software. -
Page 20: File Menu
Mic-Fi User’s Manual 10.3.1 File Menu Select a photo or video in Photo or Video folder; click “File” on menu bar or right key of mouse to pup-up the drop-down menu for operating it. Open: Opens the selected picture or video to be viewed. ... - Page 21 Mic-Fi User’s Manual Video Setting Pen Setting Crosshair / Scale Line / Circle Grid: Add in Crosshair / Scale Line / Circle Grid on preview area: click “Crosshair / Scale Line / Circle Grid” on the drop-down menu as below. Snapshot Enable and Snapshot Disable: the default is enable snapshot.
-
Page 22: Capture Menu
Mic-Fi User’s Manual 10.3.3 Capture Menu Take picture : You can take image by clicking the snapshot Button or press the button on the USB DigitalMicroscope Take Video/Stop Video: 1. Frame Rate: it is the number of frames or images that are projected or displayed per second. -
Page 23: Help Menu
Mic-Fi User’s Manual 10.3.4 Help Menu About USB Microscope: you can check your present version 10.3.5 Video Process Tool Bar HorizontalMirror VerticalMirror Negative Binary Segmentation Monochrome display (Red) Monochrome display (Green) Monochrome display (Blue) Calibration 10.4 Calibration on Windows See chapter 7.3 10.5 Measurement on Windows The line measurement allows you to measure the linear distance between two points. -
Page 24: Usb Microscope On Mac Os
Mic-Fi User’s Manual 11. USB Microscope on MAC OS 11.1 System Requirements MAC OS X 10.6 or later QuickTime 7.0 or later 11.2 Running USB Microscope Install the software. Once the USB Microscope installation is completed, please plug the microscope into an available USB port on your Mac OSX PC, and turn the microscope on with the switch on the side. -
Page 25: Video Resolution Setting
Mic-Fi User’s Manual Video Resolution Setting 11.2.1 Click “Capture->Resolution” to select your desired resolution as below screen. The default resolution is Medium. If your app screen freezes on the image, it may be because USB Digital Microscope capture resolution has been set too high. -
Page 26: Measurement On Video
Mic-Fi User’s Manual 11.2.4 Measurement On Video To obtain the accurate measurement data for each magnification, please calibrate before any measurement function. Line Click the icon button; you will see one line on the video preview window. If you select the left of the line and drag the mouse, you can move the line. - Page 27 Mic-Fi User’s Manual Area Measurement On Video Clicking the icon, the rectangle will display in the video preview window. Selecting left region (region 1) of the rectangle and dragging the mouse, you can move the rectangle. Selecting right region (region 2) of the rectangle and dragging the mouse, you can change the area of the rectangle.
-
Page 28: Measurement On Image
Mic-Fi User’s Manual 11.2.5 Measurement On Image If these images were taken after you finished the Calibration on Video, please double-click an image in the image scroll list to obtain the below measurement screen. Save As: Rename the file and save in different path. Measurement Line: The line measurement allows you to measure the linear distance between two points. -
Page 29: Product Specifications
Mic-Fi User’s Manual 12. Product Specifications Operation system:Windows /Mac/IOS and Android Wi-Fi Spec: Photo and Video Resolution: 1.3MPixel-- 1280x1024(MJPG),640x480(MJPG), 320x240 Frame Rate：15fps@1280x1024,30fps@640x480, 320x240 IEEE 802.11 b/g/n standards compliant Wireless Transmission Distance: up to 5m Transmit Power: o 11n HT40 MCS7: +13 dBm o 11b CCK: +18 dBm... -
Page 30: Troubleshooting
Mic-Fi User’s Manual 13. Troubleshooting 13.1 Wi-Fi Mode There is no video display after changing the resolution to 1280 x 1024, but it works well at 640x480: Low battery, please charge your microscope. The microscope video stops after working for a long time: Check if low battery or the battery is exhausted. -
Page 31: Disposal
Mic-Fi User’s Manual 14. DISPOSAL The crossed waste bin indicates that the product at the end of its useful life has to be collected separately from other waste. It has to be disposed of in accordance with local WEEE regulations. 15.
