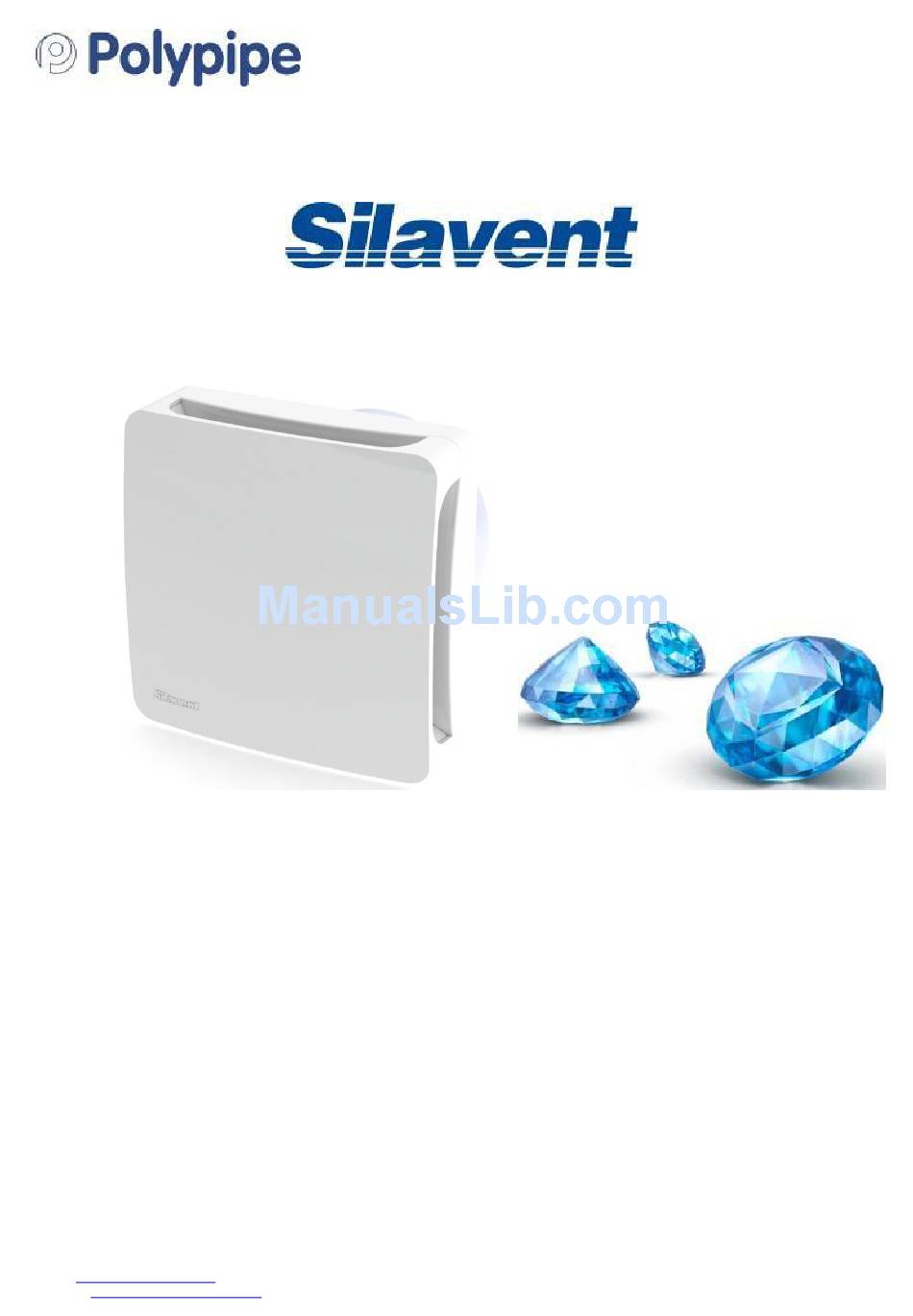

Page 1: Installation Instructions
Installation Instructions Silavent Sapphire Range GTF150 Energy Efficient Axial Wall Fans Email: vent.info@polypipe.com Website: www.polypipe.com/ventilation LAB1186R, Issue 4, May 2016... - Page 2 6. Unclip and remove the fan wall-mounting plate (Diagram 3) Diagram 4 7. Complete the wiring by following the relevant wiring diagram on the following page (for cable entry detail see Diagram 4) 8. Reassemble using these instructions in reverse Email: vent.info@polypipe.com Website: www.polypipe.com/ventilation LAB1186R, Issue 4, May 2016...
- Page 3 WARNING: ISOLATE ELECTRICITY SUPPLY BEFORE STARTING WORK IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN SL = 230 Vac Switched Live L = 230 Vac Permanent Live N = Neutral Diagram 5 GTF150-S GTF150-PC Diagram 6 GTF150-T GTF150-H Email: vent.info@polypipe.com Website: www.polypipe.com/ventilation...
- Page 4 Range: GTF150-S Standard GTF150-PC Pull-cord switch GTF150-T Overrun timer GTF150-H Humidistat and optional overrun timer Operation: Overrun timer adjustment – models fitted with overrun timers only Before making any adjustments, isolate the fan from the power supply. Remove the cover of the fan and adjust the timer accordingly.
