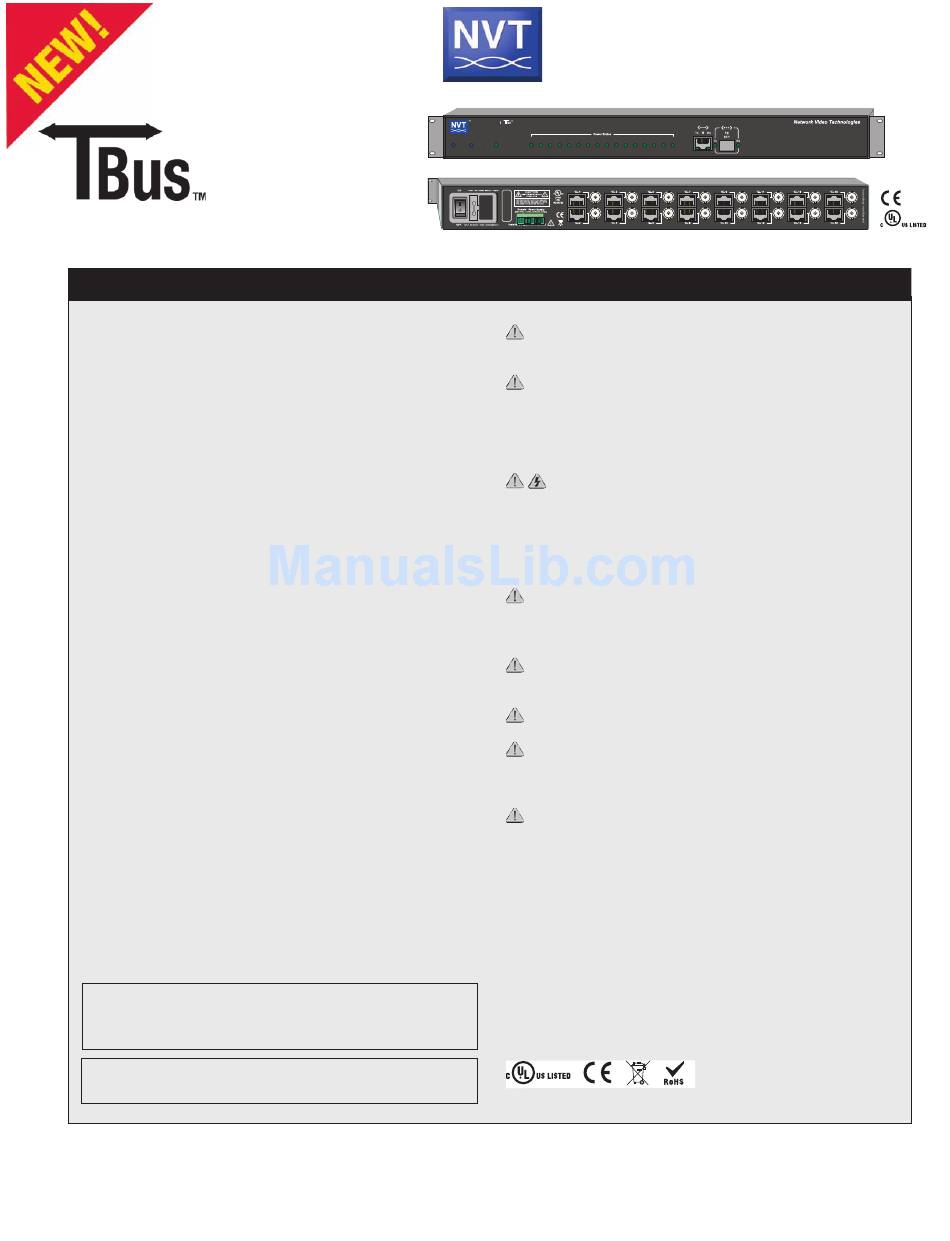

Sixteen Port PoE+ Receiver Hub
Model NV-ER1816i
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wider blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particu-
larly at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
a power supply cord or plug is damaged, liquid has been spilled, or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped. This installation should be made by a qualified service
person and should conform to all local codes.
13) Low Voltage Connections: The installation shall be in accordance
with the applicable provisions of the National Electrical Code
ANSI/NFPA 70, Article 800.90 and Canadian Electrical Code Part 1,
Section 60-504.
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
NV-ER1816
Power
Link
Join
Main
Auxiliary
IMPORTANT SAFETY INSTRUCTIONS
and should conform to all local codes.
operating ambient temperature exceeds 185° F (85° C). The ventila-
tion should not be impeded by covering the unit with items, such as
newspapers, table-cloths, curtains, etc. No naked flame sources,
such as lighted candles should be placed on the apparatus.
outputs. Never use more than two power supplies within a
TBus channel. Never use more than one 60 watt remote
power supply on each TBus channel. Do not connect additional
loads which would exceed the marked output current rating of the
power supply.
splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
mains) assemblies for location installed.
remain readily operable. Its socket-outlet must be installed near the
equipment and shall be easily accessible.
conduit as high-voltage wiring.
Each of the TBus outputs are 56VDC, class2 (SELV). Each are cur-
rent-limited to deliver not more than 1A.
The NV-ER1816i TBus Receiver Hub, and its NV-PS56-250W auxiliary
power supply when provided, are each in a 1U rackmount enclosure.
Each is provided with an IEC380-C14 power inlet and UL approved
type SPT-2, SVT, or SJT, 18/3 AWG Min. 300VAC, 60° C Max 6 ft (1.8
m) line-cord. One end with IEC380-C13 appliance coupler and the
other end with NEMA 1015P or equivalent for your country.
Input Voltage is 100 ~240 VAC 50-60 Hz.
UL Listed to IEC/UL 60950-1 Complies with FCC part 15A limits
Network Video Technologies
(+1) 650.462.8100 • +44 (0) 208 977-6614
nvt.com • info@nvt.com
Page 1 of 25
Complete Installation Guide
16-Port Ethernet Receiver
1
2
3
4
5
6
7
8
9
1
0
11
1
2
1
3
1
4
1
5
1
6
OUTPUTS: 56VDC
1AMP MAX. PER PORT, 4.5A MAX, TOTAL
This installation should be made by a qualified service person
WARNING - Do not install the unit in an environment where the
WARNING - Do not interconnect multiple power supply
WARNING - The apparatus shall not be exposed to dripping or
WARNING - Use only a Certified power cord and plug (coupler /
WARNING - Power cord is regarded as main disconnect.
WARNING - The appliance coupler (power cord/ mains) shall
WARNING - For safety, never put NVT signals in the same
10/100/1000
10/100/1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV-ER1816i and is the answer not in the manual?

Questions and answers

Summary of Contents for Tbus NV-ER1816i

  • Page 1 This installation should be made by a qualified service Each of the TBus outputs are 56VDC, class2 (SELV). Each are cur- person and should conform to all local codes.
  • Page 2: Product Overview

    Charts on page 8. Aggregate TBus bandwidth is dynamically allocated (shared based on traffic), and decreases with wire distance. See Wire Distance Chart on page 9. Multicast requires an IGMP Querier, either in a network switch, or in the NV-ER1816i Receiver Hub. High Network Video Technologies (+1) 650.462.8100 •...
  • Page 3: Configuration Instructions

    The Receiver may be the NV-ET1801, NV-ER1804, NV-ER1808i, or NV-ER1816i. Before functioning on the network, each NV-ER1816i must learn which other transceivers are to be part of that group. This simple process is called Joining. It is recommended that transceivers in each Network Group be configured prior to deployment using these...
  • Page 4: Rack Mount Instructions

    50°C (122°F). Reduced Air Flow - Installation of the NV-ER1816i in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
  • Page 5: Installation Instructions

    The blue “Power” LEDs will begin to blink on the NV-ER1816i as Disconnect all analog equipment from the cable before well as all transmitters, indicating initalization. After 10 seconds, installing the IP equipment.
  • Page 6: Bus Architecture

    The 150 Mbps bandwidth is dynamically allocated tance chart on page 8. amongst all devices on the TBus network, so care must be taken to not exceed the bandwidth capabilities of the NVT’s Class 2 current limiting ensures safety of the installation transmission path.
  • Page 7 Sometimes switches have been configured in a way that the network. assumes the TBus transceivers are edge devices (such as PCs or IP cameras). In the interest of saving bandwidth, they do not The TBus transceivers are not point-to-point devices. They join forward the IGMP control information.
  • Page 8 WIRE TYPE AND POWER DISTANCE The distance capability of wire is dependant on its ability to deliver DC power, and separately, to deliver high-frequency data signals. The graph below shows maximum power delivery when using a 56V power supply. If you are locally powering your camera (or other remote device), then this graph does not apply.
  • Page 9 DATA DISTANCE There are a wide variety of wire qualities, from copper-plated steel at the low end (CATV wire) to high performance low- loss pure copper. The graph below will help you to determine your data thoughput as a function of wire type and distance. A Distance Calculator can be found at www.nvt.com.
  • Page 10: Application Examples

    LAN / WAN IP Camera IP Camera IP Camera IP Camera Port IP Camera IP Camera ≤328ft IP Camera (≤100m) IP Camera NV-ER1816i Figure 5 - Sixteen Cameras Star Topology Cat5 Cat5 Cat5 Cat5 Switch Hybrid Cat5 ≤328ft Router or NVR (≤100m)
  • Page 11 Cat5 ≤328ft Router or NVR (≤100m) LAN / WAN Port NV-PS56-250W 250W Auxiliary Power Supply Eight NV-ER1816i NV-ET1801s Figure 8 - Forty Cameras Network Video Technologies (+1) 650.462.8100 • +44 (0) 208 977-6614 nvt.com • info@nvt.com Page 11 of 25...
  • Page 12 Coax Coax Cat5 Cat5 IP Camera ≤328ft ≤328ft UTP wire Router or NVR (≤100m) (≤100m) NV-ET1801 NV-ER1816i LAN / WAN Figure 9 - Mixed Media 50 Watt Switch Hybrid Cat5 Cat5 IP Camera ≤328ft any wire Router or NVR (≤100m)
  • Page 13 NVR Router Cat5 Cat5 ≤328ft IP Camera (≤100m) ≤328ft any wire (≤100m) NV-ET1801 Slot Laptop for diagnostics NV-ER1816i Figure 12 - Typical usage LAN / WAN Cat5 Hybrid Cat5 ≤328ft IP Camera (≤100m) ≤328ft any wire or NVR (≤100m) NV-ET1801...
  • Page 14: Alarm Outputs

    The 56VDC power from the NV-PS56-250W is delivered to the output contact closures. Solid-state relay contacts are closed when NV-ER1816i Hub via terminal blocks on the rear of both units. 56VDC is present. Terminals 5 & 6 report the power supply status of Augmented Power Under normal conditions, the load is shared the Internal power supply, while terminals 7 &...
  • Page 15 BROWSER-BASED GUI - LOGIN PAGE Although the NV-ER1816i TBus receiver hub does not require a PC-based user setup or configuration, many additional features are available through this Graphical User Interface (GUI). These features include: Remote transceiver Joining Per-port load monitoring (watts)
  • Page 16 To reset all configuration to factory conditions, use a paper-clip to press the JOIN button for 30 seconds. Figure 20 - Set Password Page Within five minutes, enter your new username and password. Then click Submit. The NV-ER1816i supports one username and password. Network Video Technologies (+1) 650.462.8100 • +44 (0) 208 977-6614 nvt.com •...
  • Page 17 Upon successful login, you will see the Joining page. This page allows the hub to enter Joining mode without having to depress the front- panel Joining button. This can be particularly useful if you are at a distant camera and need access to both ends to join a new TBus transmitter.
  • Page 18 Reset All Figure 22 - Power Page Clicking a Reset button will remove 56VDC power from that TBus channel for five seconds. This feature allows for remote reset of a locked-up camera. A shut-down TBus port’s power conumption bar graph will display as black.
  • Page 19: Device Monitor

    Click the Monitor button to read the status of the Uplink ports. This page also displays the detected MAC address of each remote device (camera) as well as its associated TBus Transmitter. Click EDIT to enter or update the text field associated with each remote TBus Transceiver. Network Video Technologies...
  • Page 20: Network Settings

    Backup or restore configuration Network Video Technologies Upgrade firmware Security Industry Leader Network Settings To change the IP address of the NV-ER1816i hub, enter its new ® TBus Sixteen Port Ethernet Receiver IP address, and subnet mask (typically 255.255.255.0), and click Submit.
  • Page 21 If your network has no IGMP Querier and you are unable or unwilling to perform this manual configu- ration, you may instruct the NV-ER1816i to generate its own IGMP Queries. Such Queries are outside the IGMP specification, may cause un-desired network operation, and are not recomended by NVT.
  • Page 22 NV-ER1808i 8-Port Ethernet Receiver ® 10/100/1000 10/100/1000 Power Link NV-ER1808i Eight port receiver hub Join Main Auxiliary NV-ER1816i ® 16-Port Ethernet Receiver 10/100/1000 10/100/1000 NV-ER1816i Sixteen port receiver hub Auxiliary NV-PS56-250W Auxiliary 56V 250W Single Power Supply NV-PS56-250W-2 Auxiliary 56V 250W...
  • Page 23 NV-PS56-60W 56V DC power supply, 60 watts with IEC line cord NV-PS56-90W 56V DC power supply, 90 watts with IEC line cord Do not use with NV-ER1816i NV-BNCT BNC “T” adaptor NV-EC4BNC 1:4 BNC splitter adaptor NV-BNCA BNC Screw terminal adaptor...
  • Page 24: Technical Specifications

    Fuse rating: 250V 5A T For safety, never use more than two power supplies within a TBus Use only the power cord provided with the unit or equivalent UL approved channel. Never use more than one 60 watt remote power supply type SPT-2, SVT, or SJT 18/3 AWG 100~240 VAC, 1 Amp 60°C max 15 ft...
  • Page 25: Troubleshooting

    TROUBLESHOOTING LIMITED LIFETIME WARRANTY Confirm that the NVT transceivers have been configured to com- municate with each other, per instructions on page 3. NVT warrants that the product conforms to NVT’s applicable pub- lished specifications and is free of defects for the life of the prod- If you are experiencing problems, attempt to simplify your setup.
