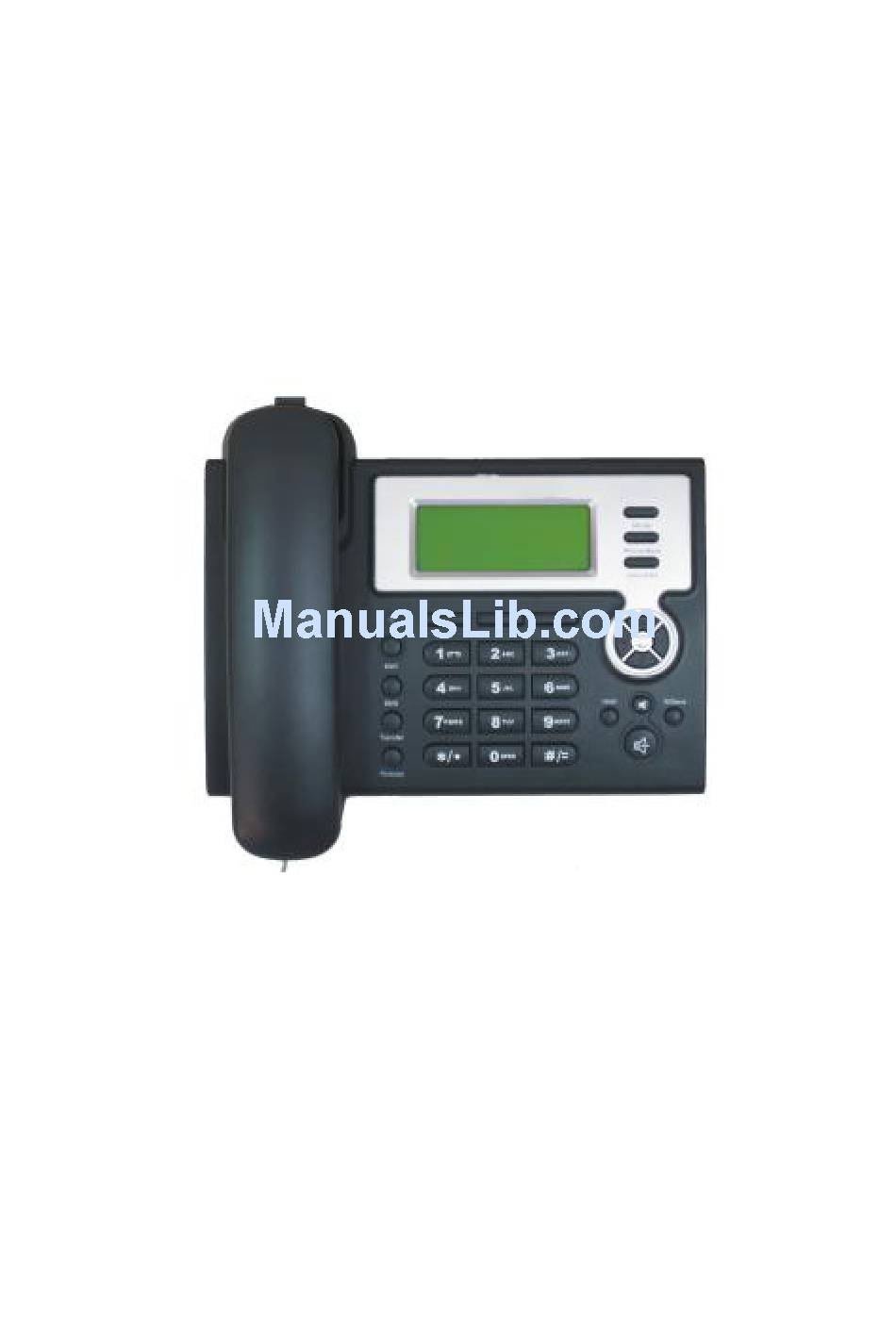

Model:IPcall-200

User Manual

For Modem Router User
Ref. IPcall-200-Modem Ver. 20110520

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ipcall-200 and is the answer not in the manual?

Questions and answers

Related Manuals for FREECALL ipcall-200

Summary of Contents for FREECALL ipcall-200

  • Page 1: User Manual

    Model:IPcall-200 User Manual For Modem Router User Ref. IPcall-200-Modem Ver. 20110520...

  • Page 2: Safety Notices

    Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Please use the attached external power supply in the package. Other power adapter may cause damage to the phone if it’s rating may out of the specification. Before using Power Adapter, please check with your local power voltage.

  • Page 3: Table Of Contents

    There is a pop up ALERT Warning before 30 days of the expired date to remind you. Please call your local agent whom you bought the IPcall-200 from paid for and tell him what your unique S/N which printed on the back of your device is.

  • Page 4: Introduction

    5.1.2. Voice Features..........................5.1.3. Network Features ........................5.2. D ....................IGIT CHARACTER MAP TABLE Introduction for IPcall-200 1.2. Packing Content The original packing contains the following parts: 1. Main unit x1 2. Handset x1 3. Handset cord x1 4. Power supply x1 5.
  • Page 5 Callers Press the Callers key to short cut for checking the Missed call log either at ON.OFF-HOOK modes. LED blinks to alert for a new Voicemail. SysInfo These three Soft keys below the LCD to realize the various Enter functions in either setup or dialing mode. You will see what Exit function will be in the bottom line of LCD when performing in difference modes.

  • Page 6: Port For Connecting

    In this manual, we assume you are using an ADSL /Cable Modem and prefer to connect with the IPcall-200 directly at office or home to access the internet as the Fig.1 below.

  • Page 7: Initial Setting

    You may check the following paragraph to compare the current setting. If you are sure that a DHCP router is not used and the IPcall-200 is connected to the ADSL / Cable Modem directly already, you can follow the next paragraph to complete the setting.

  • Page 8: Modem Mode

    5. Let your PC to share the internet in the same network. Connect the cable from PC to the LAN port on rear of IPcall-200. Now the phone works like a normal router in this network. So that you need to change the Network Setting from the control panel on PC.

  • Page 9: Dial Rules

    3.1.1 Dial rules: Call for a Mobile Phone： SEND ‘900’+Country code + Cellphone / Mobile number + Dial for a Fixed line Phone: SEND ‘900’+Country code + Area code + Tel No. + 3.1.2. Making a call Hand-free Quick-dialing SEND In On-Hook mode, push your desired number, and press button, phone will dial the call with hands-free mode immediately.

  • Page 10: Call Records

    3-way conference call in the internet if all parties are using IPcall-200. You can make another call to the third party who also is using an IPcall-200 during a Hold period. Then press Hold again to start conference.

  • Page 11: Setting

    countries: North America：USA / Canada Asia: China / Hong Kong / Singapore / Malaysia / Thailand / India / Philippine /Pakistan (If you had bought the phone that the plan specially for Philippine as well as Pakistan) ： Other countries and cities for PSTN Fixed line Phone in the World such as Asia: Taiwan, Japan, Korea, Australia, Euro: England (U.K.), France, New Zealand, Denmark, Germany, Spain, Sweden, Portugal, Russia, Romania, Kazakhstan, Austria, Irish, San Marino, Poland, Hungary,...

  • Page 12: Network Features

    1. The System Config in this phone is not allowed to access if you do not have permit. It is protected by the password. 2. Even you are allowed to access into user’s config menu, but if the Phone display correctly with the current time, that means there is no need to access the Menu which may occurred a problem by an improper operation.
  • Page 13 Support basic NAT and NAPT PPPoE for xDSL / Cable Modem VLAN compatible Support DHCP, getting IP on WAN port automatically Support DHCP distribute IP on LAN port 5.2. Digit-character map table Button Character Button Character 7 P Q R S p q r s 2 A B C a b c 8 T U V t u v 3 D E F d e f...
