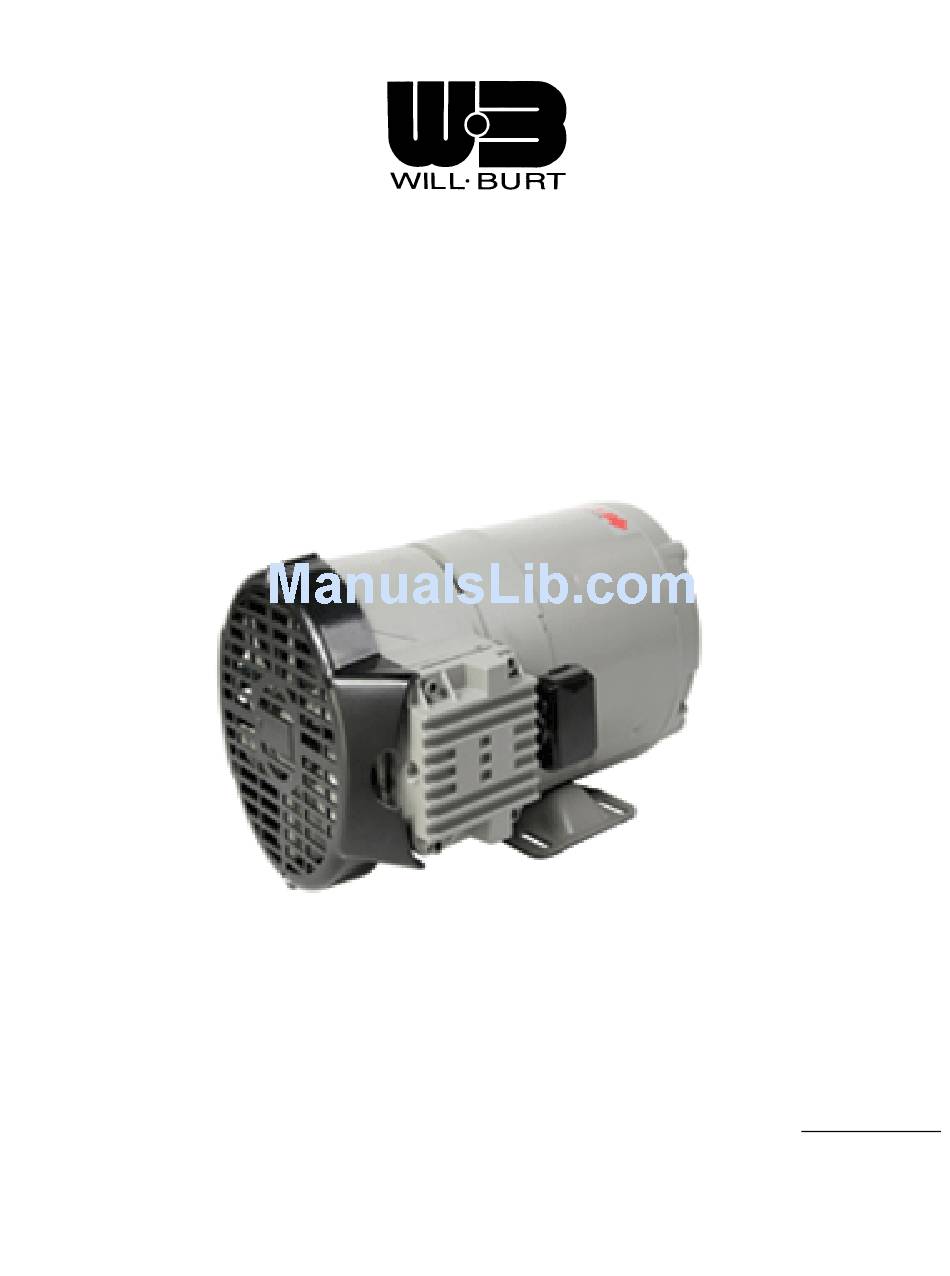

- Page 1 115/230 VAC ¾ HP Compressor (902404) and Pneumatic System Operator’s Manual The Will-Burt Company 169 S. Main Street Orrville, OH 44667 www.willburt.com TP-4945001-00 June 2013...
- Page 2 Compressor (902404) and Pneumatic System WARRANTY The Manufacturer warrants its products to be free from defects in material and workmanship for a period of one year from the date of shipment from the factory. The Manufacturer shall not be responsible for any damage resulting to or caused...
- Page 3 Compressor (902404) and Pneumatic System Document History Manual Version Date Remarks TP-4861201 June, 2012 First Release TP-4945001-00...
- Page 4 Compressor (902404) and Pneumatic System --- PAGE INTENTINALLY LEFT BLANK --- TP-4945001-00...
- Page 5 Compressor (902404) and Pneumatic System TABLE OF CONTENTS Chapter 1 Introduction Safety Precautions ......................... 1-1 Introduction ............................ 1-1 Compressor (902404) Description ....................1-1 Chapter 2 Operation Manual Operation........................... 2-4 Electric Operation........................... 2-4 Chapter 3 Maintenance Compressor Maintenance ......................3-6 Valve Maintenance ........................3-6...
- Page 6 Compressor (902404) and Pneumatic System LIST OF ILLUSTRATIONS Figure 1-1 Compressor (902404) Physical Dimensions ................. 1-2 Figure 1-2 Compressor (902404) Electrical Connections ................. 1-3 Figure 2-2 Pneumatic System Wiring Diagram ..................2-5 LIST OF TABLES Table 1-1 Compressor (902404) Ratings ....................1-1...
-
Page 7: Safety Summary
Compressor (902404) and Pneumatic System SAFETY SUMMARY SIGNAL WORD DEFINITION Per the ANSI Z535.4 standard, the following signal words and definitions are used to indicate hazardous situations: DANGER indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. - Page 8 Compressor (902404) and Pneumatic System Safety Instruction - Trained Personnel Only! Death or serious injury could result if proper inspection, installation, operation and maintenance procedures are not observed. Installation, operation and maintenance to be performed by trained and authorized personnel only. Proper eye protection should be worn when servicing the mast.
- Page 9 Compressor (902404) and Pneumatic System Mast Extension Hazard! Extending mast into obstructions could result in death or serious injury and could render the mast inoperable and partially extended. Before applying power and operating the mast, be certain there is sufficient clearance above and to all sides of the expected location of the fully extended mast and payload.
- Page 10 Compressor (902404) and Pneumatic System Safety Instruction-Operation! Lamps are extremely hot and should not come into contact with people or combustible and/or explosive materials. Do not operate if breakage occurs or unit is knocked over. Safety Instruction – Installation! At all times while using pipe and hose during installation, recognize that: 1.) Pipe and hose should be routed, mounted and restrained to protect from damage;...
-
Page 11: Safety Precautions
Compressor (902404) Control Valve Kit (913882) Solenoid Valve Kit (904034) Compressor (902404) Description The Compressor (902404) has the ratings shown in Table 1-1, Parameter Value Compressor Type Articulated Piston Compressor Pressure Flow Rate 5.2 cfm Maximum Pressure... - Page 12 Compressor (902404) and Pneumatic System Figure 1-1 Compressor (902404) Physical Dimensions TP-4945001-00...
- Page 13 Compressor (902404) and Pneumatic System Figure 1-2 Compressor (902404) Electrical Connections TP-4945001-00...
- Page 14 Compressor (902404) and Pneumatic System Chapter 2 Operation Manual Operation Assemble control valve kit, WB part number 913882 by cutting the hose to length and assembling per drawing B-3818, figure 2-1. Attach control valve kit to compressor assembly by attaching the male ¼”...
- Page 15 Compressor (902404) and Pneumatic System Figure 2-1 Control Valve Kit (913882) ¼” NPT Figure 2-1 Pneumatic System Wiring Diagram TP-4945001-00...
- Page 16 This is typically done with a filter regulator lubricator module similar to Will-Burt part number 900484. The filter bowl should be drained regularly. The lubricator should be adjusted to put a fine mist into the air line in direct proportion to the rate of flow.
