Summary of Contents for Alert J5

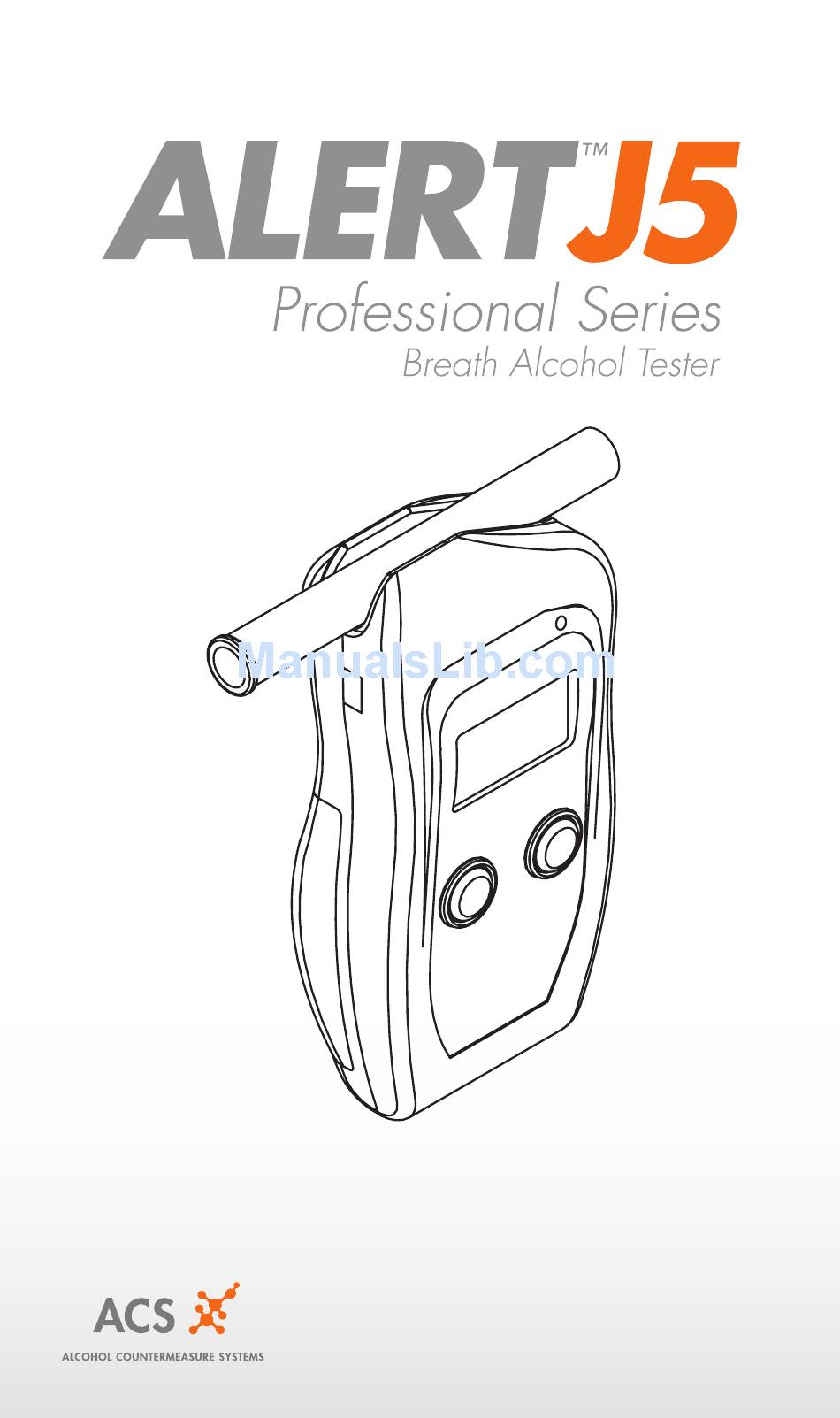

- Page 1 Instruction Manual...
- Page 3 Toronto, Ontario M9W 6J2 CANADA ALERT, Alcohol Countermeasure Systems, and the Molly are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. © Alcohol Countermeasure Systems Corp 2011 The information disclosed in this document is the valuable property of Alcohol Countermeasure Systems Corp and all copyright and other proprietary rights to this document are reserved.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .............. v SAFETY AND PRECAUTIONS ........v WARRANTY ..............vi MAINTENANCE .............. vi CONTACT INFORMATION ..........vi GETTING STARTED ............1 Buttons and Menus ..........2 BAC/BrAC Format............ 3 Power On/Shut Down ..........3 Activating ..............4 Battery.............. -
Page 5: Introduction
BAT to minimize RF interference • If you spill any liquid on the ALERT J5, remove all excess fluid with a cloth and allow the device to dry thoroughly before attempting to power on. Do not... -
Page 6: Warranty
MAINTENANCE ALERT J5 requires periodic maintenance and calibration. After testing and calibrating at the factory, ALERT J5 is deactivated so it can be stored without losing any clock time from the calibration period. You need to activate it to start using it (see the “Activating”... -
Page 7: Getting Started
GETTING STARTED The ALERT J5 is a professional series breath alcohol tester (BAT) that is accurate and easy to use. It measures breath alcohol concentration (BrAC), which is directly proportional to blood alcohol concentration (BAC). This section familiarizes you with the basic features, such as the menus, buttons, and batteries of the device. -
Page 8: Buttons And Menus
Buttons and Menus The ALERT J5 has an interface similar to a cellular phone, which allows you to navigate all menus using the two buttons. Either button powers on the device. To navigate using the two buttons: • Use the right button to scroll down to your selection (scrolling up is not possible) •... -
Page 9: Bac/Brac Format
- Shutdown timer: Set the time for auto shut off. This time can be between 30 seconds and 900 seconds (15 minutes) • Language: Set the display language using the right button. Scroll through to view available options • Shut down: Use this menu to manually shut down the device without waiting for automatic shut off. -
Page 10: Activating
NOTE: This feature is displayed on the Main Menu, only if your ALERT J5 has been previously calibrated. It is not possible for you to deactivate the device. To activate: 1. -
Page 11: Testing
20 minutes before taking a test. 1. Take a new mouthpiece and insert it on top of the ALERT J5 device. With the display facing you, connect the mouthpiece to the device by... - Page 12 If the breath test is being done outdoors in colder weather, the time to analyze may increase by a few seconds. 7. ALERT J5 analyzes and displays the 0.020 results. % BAC PRINT...
-
Page 13: Recalling A Breath Test
8. You can: • Print the displayed result by pressing the left button. Refer to the “Printing” section for details • Start a new test by pressing the right button Recalling a Breath Test You can recall any of the 100 most recent tests to either view on screen or print. -
Page 14: Printing
PRINTING An optional battery operated printer can be purchased to print the BAC results on site. This rechargeable printer connects to ALERT J5 using a serial communication cable. The printer kit includes: Line Feed • Rechargeable battery pack Button •... - Page 15 NOTE: To print a recalled test, refer to the “Recalling a Breath Test” section for details. 4. You will see Port: RS-232 message displayed to indicate serial printing. Port: RS-232 Print Back 5. Press the right button to start printing. This displays a Wait...
-
Page 16: Inserting/Charging The Printer Battery
4. When the battery is fully charged both red lights turn off. Unplug the power to the case. NOTE: To prolong the battery life, remove the battery when the printer is not in use, and let the battery drain fully before recharging. p. 10/13 ALERT... -
Page 17: Loading The Paper Roll
Loading the Paper Roll 1. Open the printer top cover by pushing up on either side of the printer. 2. Pull the tab to the right and insert the paper roll, so that the paper dispenses under. Release the tab to align the paper roll. -
Page 18: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING Troubleshooting Table IF THE ALERT J5 THEN Does not power on Change the batteries Displays Not Activated Press the left button • Check that the printer is on Cannot print serially (using • Check the cable connection communication cable) •... -
Page 19: Index
Maintenance, vi Safety, v Format, 3 Mouthpiece, v, 1, Settings, 2, 3 Limits, 6 5, 12 Basic Features, 1 Battery ALERT J5, 4 Printer, 8 Troubleshooting, Printer, 10 BrAC, 3 Format, 3 Results, 6 Limits, 6 Warranty, vi RS-232, 8, 9... - Page 20 IRM-ENG-60-000032-F Copyright © 2011...
