Summary of Contents for ARTRAY ARTCAM-HD2 Series

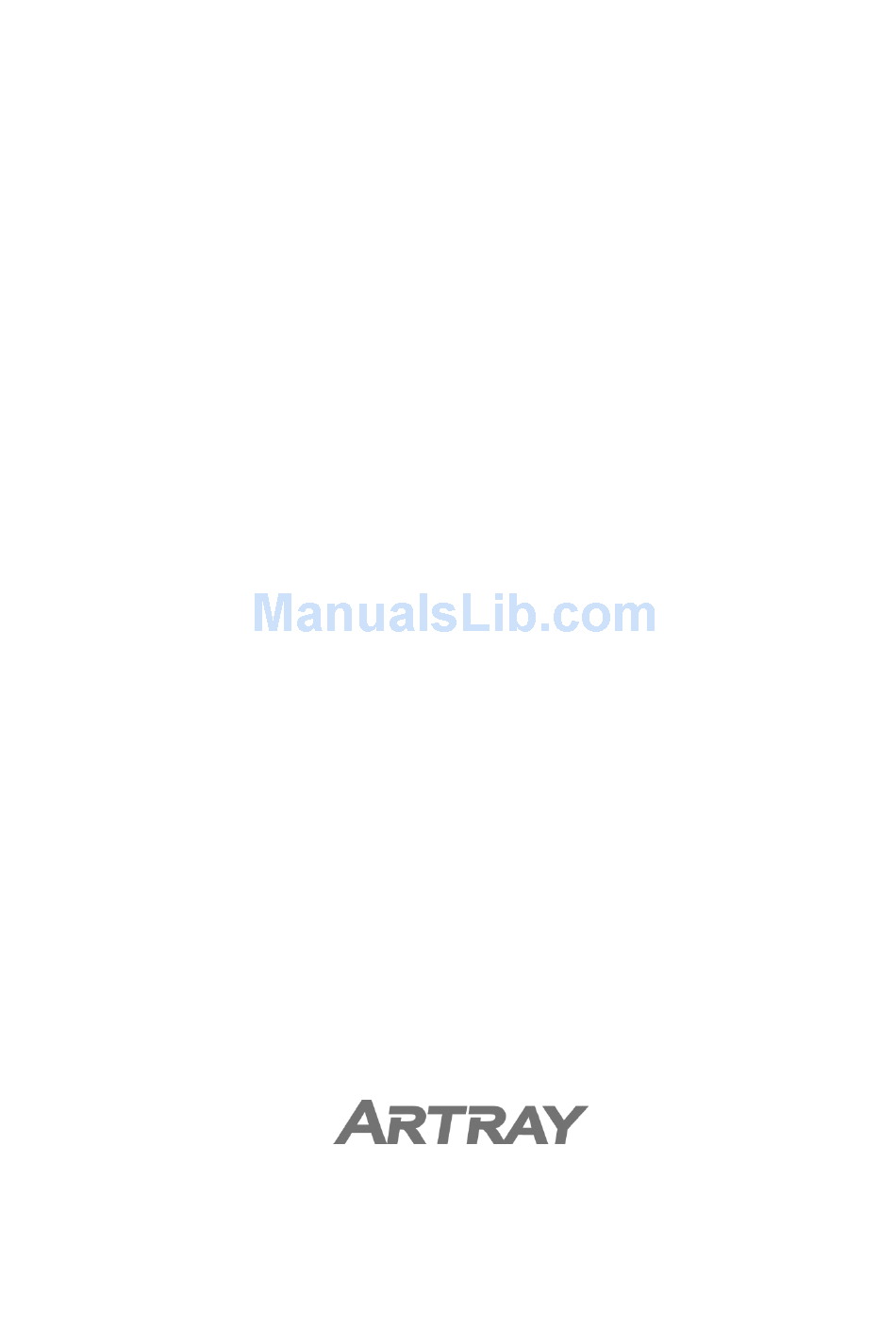

- Page 1 June 28, 2012 Ver1.10 USB2.0 Camera with HDMI Monitor Output ARTCAM-HD2 Series INSTRUCTION BOOKLET 1.3M pixels CMOS ARTCAM-130MI-HD2 Series 10.0M pixels CMOS ARTCAM-1000MI-HD2 Series 1.25M pixels CCD ARTCAM-445KY2-HD2 Series 1.5M pixels CCD ARTCAM-150P5-HD2 Series ARTRAY CO., LTD.
-
Page 2: Table Of Contents
Contents 1. Attention ··············································· 3 2. Introduction ··········································· 6 3. Main Features ······································· 6 4. The Product ·········································· 7 5. Connect the Camera ······························ 8 6. Specifications ········································ 15 7. External Dimensions ······························ 17 8. Recommended PC ································ 18 - 2 -... -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
- Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below : Hardware Warranty : http://www.artray.us/download/artray_warranty.pdf - 5 -...
-
Page 6: Introduction
2. Introduction ARTCAM-HD2 Series is HDMI / USB2.0 output cameras for industrial use. This series adopts USB2.0 interface, so the data can be delivered to PC directly without a capture board. Also, the HDMI (High Definition Multimedia Interface) output function is enable direct delivery of images to a digital monitor without a PC. -
Page 7: The Product
4. The Product 1) Camera 2) USB Cable (A-miniB) 2m 3) AC adapter (DC 5V) 4) Instruction Booklet 5) Viewer software/Device Driver CD <Options> 1) HDMI cable(1.5m/3m/5m)・HDMI-DVI connector・HDMI-DVI cable 2) C Mount lens 3) 2 Measurement & Filing Software [ART-MEASURE] 4) Recording Software [ART-REC] 5) Software Development Kit [ARTCCM-SDK] 6) 5m extension cable with USB2.0 repeater... -
Page 8: Connect The Camera
5. Connect the Camera 5-1-1 How to connect a camera [PC / Monitor] 5-1-2 How to connect a camera [Monitor] The image settings, such as white balance and gain can be accessed from parameter when camera is Attention * connects to PC by USB cable. *In the case of connecting to a PC, installations of device driver and viewer software are necessary. - Page 9 5-2 Shutter Speed Shutter speed can be changed on the standard viewer software ART-Viewer. The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure time. Model Method Range : 1~16383(Exposure Time : 1/17992~1sec) 130MI-HD2 Series Exposure Time=((Shutter Valuex x 1514) - 180) x 0.0417 [μsec] *1280 x 1024, 24MHz...
- Page 10 Image sensor output range and pixel Effective pixel of image sensor and output range will vary when using either USB2.0 or HDMI output. Please find information of output resolution for different cameras as below. 5-3-1 ARTCAM-130MI-HD2 Series In case of HDMI setting of 1280 1024 output USB Output (Acquired Image from PC) HDMI Output (Displayed image on monitor)
- Page 11 5-3-2 ARTCAM-1000MI-HD2 Series In case of full resolution setting of 3664 x 2748 output USB Output (Acquired Image from PC) HDMI Output (Displayed image on monitor) Effective pixel 3856 x 2764 Effective pixel 3856 x 2764 Read-only area 3664 x 2748 Read-only area 3664 x 2748 Output resolution...
- Page 12 In case of HDMI setting of 720P output USB Output (Acquired Image from PC) HDMI Output (Displayed image on monitor) Effective pixel 3856 x 2764 Effective pixel 3856 x 2764 Read-only area 2560 x 1440 Read-only area 2560 x 1440 Output resolution 1280 x 720 Output resolution...
- Page 13 5-3-3 ARTCAM-445KY2-HD2 Series In case of HDMI setting of 720P output USB Output (Acquired Image from PC) HDMI Output (Displayed image on monitor) Effective pixel 1296 x 966 Effective pixel 1296 x 966 Read-only area 1296 x 966 Read-only area 1296 x 966 Output resolution 1280 x 960...
- Page 14 5-3-4 ARTCAM-150P5-HD2 Series In case of HDMI setting of 1280 x 1024 output USB Output (Acquired Image from PC) HDMI Output (Displayed image on monitor) Effective pixel 1392 x 1040 Effective pixel 1392 x 1040 Read-only area 1392 x 1040 Read-only area 1392 x 1040 Output resolution...
-
Page 15: Specifications
6. Specifications 6-1 Color Model(1) ARTCAM-130MI-HD2 ARTCAM-1000MI-HD2 ARTCAM-445KY2-HD2 ARTCAM-150P5-HD2 Sensor Type CMOS Color Image Sensor CCD Color Image Sensor Active Pixels 1280(H) x 1024(V) 3856(H) x 2764(V) 1296(H) x 966(V) 1392(H) x 1040(V) Active Imager 6.66(H) x 5.32(V)mm 6.41(H) x 4.59(V)mm 4.86(H) x 3.62(V)mm 6.47(H) x 4.83(V)mm Size... - Page 16 Color Model (2) ARTCAM-130MI-BW-HD2 ARTCAM-445KY2-BW-HD2 ARTCAM-150P5-BW-HD2 Sensor Type CMOS Monochrome Image Sensor CCD Monochrome Image Sensor Active Pixels 1280(H) x 1024(V) 1296(H) x 966(V) 1392(H) x 1040(V) Active Imager 6.66(H) x 5.32(V)mm 4.86(H) x 3.62(V)mm 6.47(H) x 4.83(V)mm Size 1/2” 1/3”...
-
Page 17: External Dimensions
7. External Dimensions - 17 -... -
Page 18: Recommended Pc
Especially if the PC adopts a Cypress control chip, it may not recognize the later connected bulk transfer device if the device is connected when the Artray camera is in function. This issue is hard to be solved because the problem is on the lower firmware of the control chip and the PC bios.
