Summary of Contents for Ignite Skyus DS

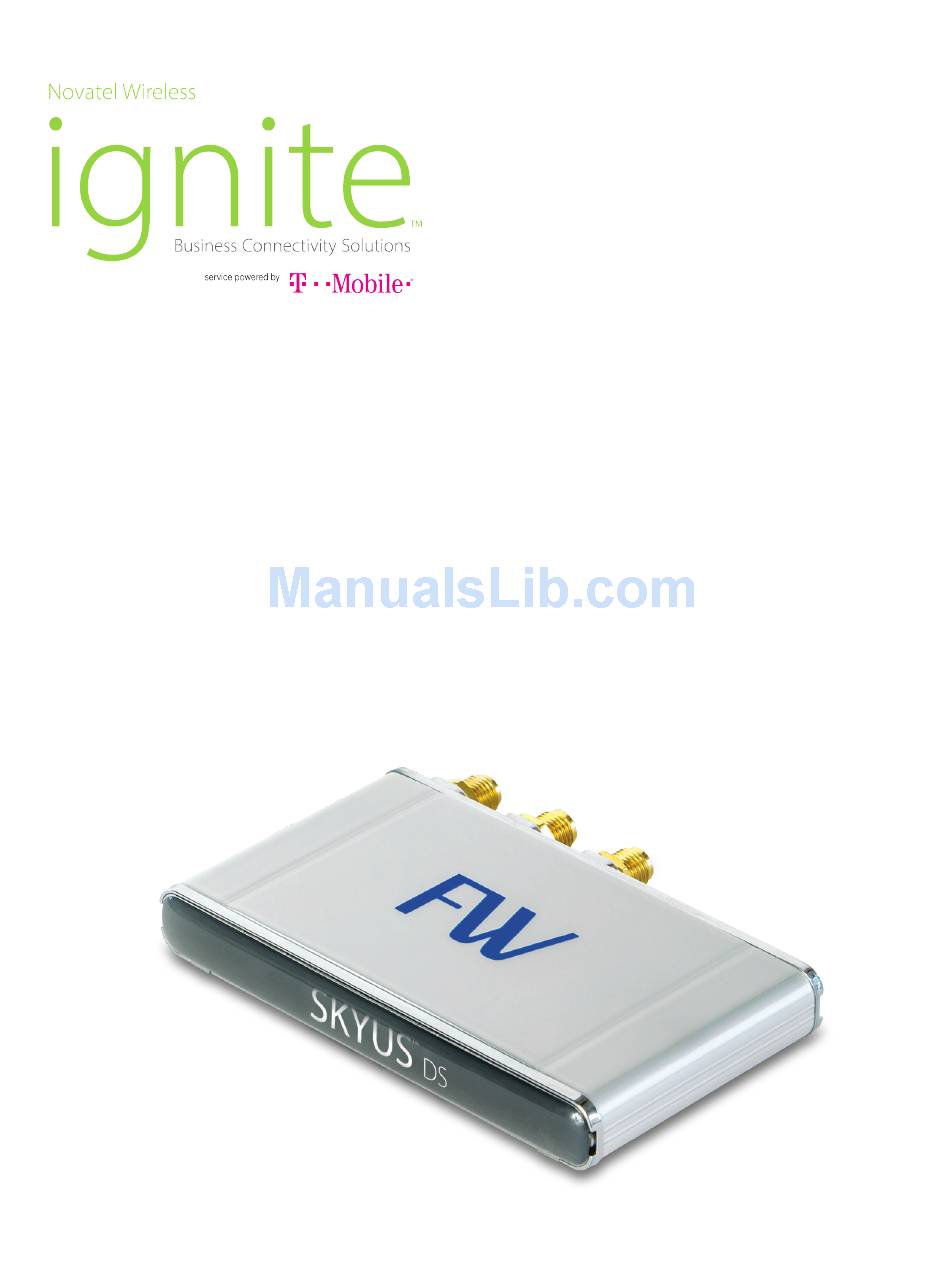

- Page 1 Skyus DS Installation Guide...
-
Page 2: Intended Use
(electronic, mechanical, photocopying, recording or otherwise), or for any purpose without the express written permission of Novatel Wireless, Inc. Novatel Wireless and Ignite are trademarks or registered trademarks of Novatel Wireless, Inc. in the United States. Disclaimer The information in this document is subject to change without notice. -
Page 3: Table Of Contents
Specifications ......................................... 4 Installation ............................................ 5 Installation Summary ......................................5 Package Contents ........................................ 5 Installing the Skyus DS Driver ..................................5 Installing the Mounting Bracket ..................................7 Connecting Antennas ......................................7 Connecting to a Computer or Router................................8 Activation ..........................................8 Installing the Connection Manager ................................ -
Page 4: Overview
Figure 2: Skyus DS Ports Intended Audience This document is intended for users responsible for the initial setup of the Skyus DS and assumes the user has a basic working knowledge of computer networking, wireless routing, and network administration. Scope... -
Page 5: Specifications
Chipset MC7354 – North America Bands See the Skyus DS Specification Sheet for carrier-specific information Data Rates Peak download speeds of up to 100 Mbps and peak upload speeds of up to 50 Mbps (actual speeds depend on carrier network implementation) Regulatory Approvals FCC Part 15, Class B;... -
Page 6: Installation
If you are working on the device you intend to use the Skyus DS with, proceed with installation on the local drive. If you are working on a separate device from the one you intend to use the Skyus DS with, save the file to a portable media device and use it to install the drivers on the separate device. - Page 7 Ignite Skyus DS Installation Guide Figure 3: Sierra Wireless Driver Installation A successful installation initialization should show a progress bar in the dialog box and display a message just above the system tray. Figure 4: Sierra Wireless Driver Install Initialization Figure 5: Sierra Wireless Installing - System Tray Follow the necessary steps to finish the installation until the screenshot matches the image shown in Figure 6.
-
Page 8: Installing The Mounting Bracket
The Skyus DS attaches easily to the mounting bracket. The figure below shows the dimensions and mounting hole locations of the plate. The hardware used to secure the bracket depends on the mounting surface. The Skyus DS slides into the bracket and is held in place by retention clips. -
Page 9: Connecting To A Computer Or Router
Skyus DS through an SMA extension cable for proper operation. Note: It is not necessary to connect a GPS antenna if the GPS function of the Skyus DS is not being used. The cellular functions of the Skyus DS operate as designed without a GPS antenna attached. -
Page 10: Windows Mobile Broadband
Ignite Skyus DS Installation Guide Skyus Watcher is available after signing an End User Licensing Agreement (EULA). Skyus Watcher can be downloaded from the Ignite downloads page. For information on the installation of the Skyus Watcher application, please reference the Skyus Watcher User Guide. -
Page 11: Fcc Compliance
Ignite Skyus DS Installation Guide FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.
