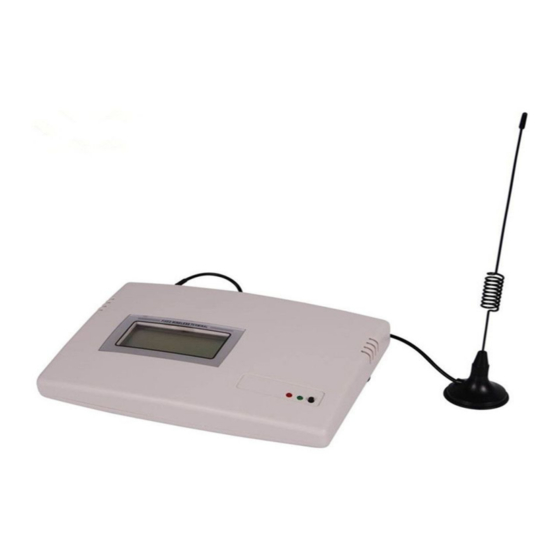

- Page 1 Fixed Wireless Terminal GSM Fixed Wireless Terminal User’s Manual Model: B115 Model: B116 Model: B168 Model:B190 Model: B198 COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD...
-
Page 2: General Description
10) The RJ-11 socket which connect the phone or billing system for metering purpose; 11) Antenna socket (SMA); 12) Working status and Signal Strength by LED indicator; 13) IMEI Change (optional). 14) Supports modem mode. COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD... -
Page 3: Technical Specifications
12) AC-Adapter type: EU,US,AU,British can be optional Stand by hours: 24 Hours Talk time: 2 Hours Charging time: 6 hours Power consumption: Static≤25MA emission≤500MA Peak power consumption: 0.25W/0.5W Receive sensitivity: -104db Antenna increment: All directions: 5.0db Certain/Selection: 12db COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD... -
Page 4: Packing List
4. On end of the telephone line connects to the “Phone” port of the terminal, the other end connects to telephone. 5. “Power” port connects to power adapter that is connected to 110-220V AC power supply. 1) The Installation for Connecting to Ordinary Telephone COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD... - Page 5 The sketch for connecting to Billing device or Computer charging system 3) The installation for connecting to PBX for call extensions If users want to connect small PBX to this terminal, connect terminal’s “Phone port” to the PBX. COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD...
- Page 6 5) The installation for connecting to alarm system for Security The GSM FWT can substitute the PSTN for connecting to alarm system for security purpose when PSTN failure or not available. The sketch for connecting to alarm system COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD...
-
Page 7: Function Setting
3. Input " *00#081#" ,all calls are allowed again. Incoming number Block (Optional Setting) 1 .Take up the phone or press the " Hand free " key. Input " *00#051#" , block all of the incoming calls. COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD... -
Page 8: Troubleshooting
6. check line or replace 'INUSE "light, no board bad, telephone flicker; Telephone bad 7. Replace new integrated Telephone dial-up circuit board. no reaction Equipment Factory default anomaly Hand free Input *00#000# COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD... -
Page 9: Warranty Card
Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment User’s name Contact with: Contact Tel.no. Address Date of Ex-works Date of Maintenance Damage Management Maintainer Sales Agent Purchasing Date (Stamp) COPYRIGHT@ SHENZHEN DOBRY TECHOLOGY CO., LTD...
