Summary of Contents for Miranda CPU-ETH2

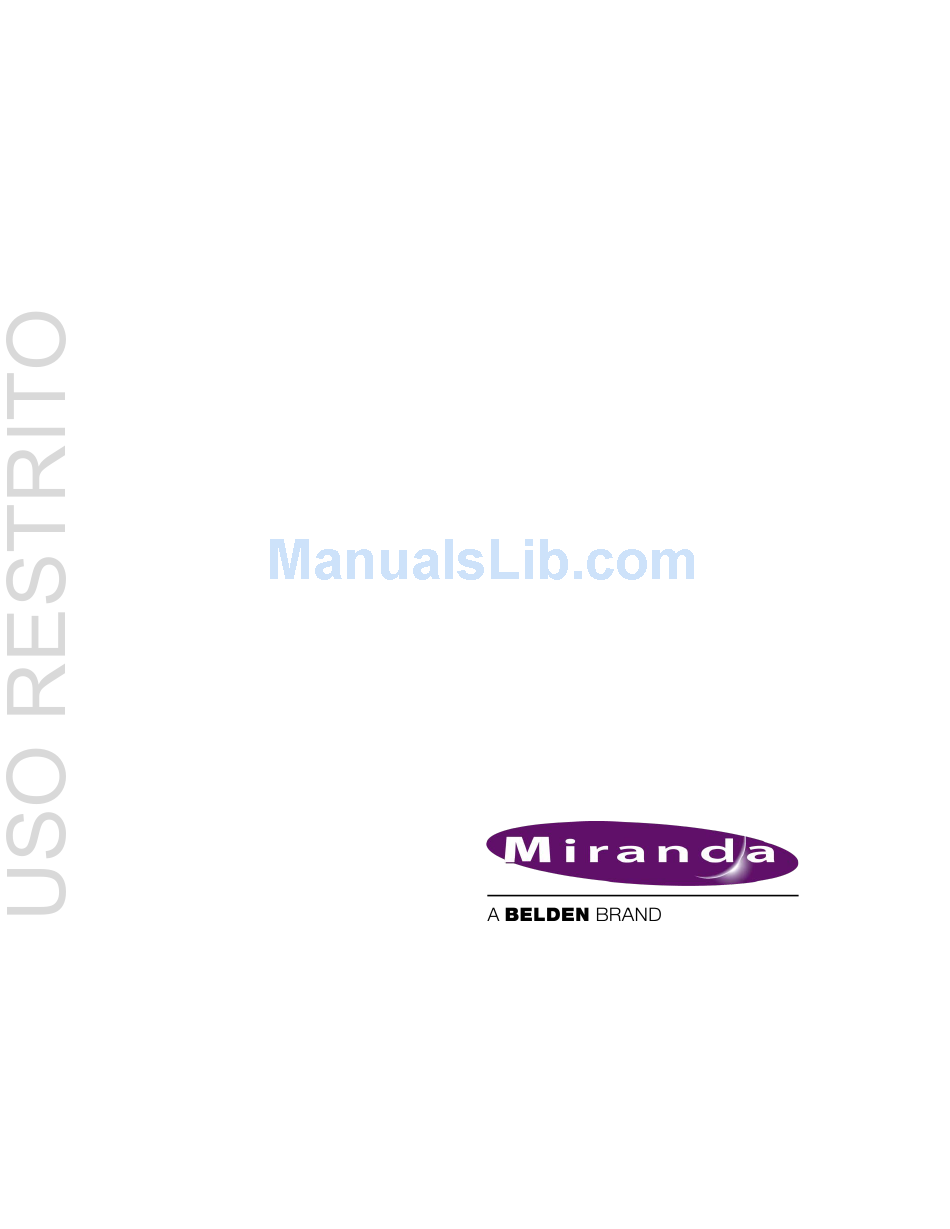

- Page 1 DENSITÉ series CPU-ETH2 Enhanced Ethernet Controller Card Guide to Installation and Operation M659-9900-101 3 May 2013 Miranda Technologies 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 2C6 Tel. 514-333-1772 Fax. 514-333-9828 www.miranda.com © 2013 Miranda Technologies...
-
Page 2: Electromagnetic Compatibility
• EN 61000-4-5 Surge immunity • EN 61000-4-11 Voltage dips, short interruptions and voltage variations immunity How to contact us: For technical assistance, please contact the Miranda Technical support centre nearest you: Americas Asia Europe, Middle East, Africa, UK Telephone:... -
Page 3: Table Of Contents
GUIDE TO INSTALLATION AND OPERATION Table of Contents CPU-ETH2 Enhanced Ethernet Controller Card ..............1 Introduction ............................1 Features .............................. 1 Card Layout ............................1 Operation ..........................2 Overview ............................. 2 The Local Control Panel ........................2 Status LED ............................3 Preliminary Configuration ....................... - Page 4 GUIDE TO INSTALLATION AND OPERATION CPU-ETH2...
-
Page 5: Cpu-Eth2 Enhanced Ethernet Controller Card
The DENSITÉ-CPU-ETH2 Controller supports all on-frame communication between cards, and incorporates a front control panel for local control and adjustment of the frame and installed cards. The CPU-ETH2 Controller serves as the communications port for control and alarm information entering and leaving the frame. In addition to all the features of the basic controller, the CPU-ETH2 controller features an Ethernet port for system-wide monitoring and control of DENSITÉ... -
Page 6: Operation
2.2 The Local Control Panel The local control panel is fastened to the front of the CPU-ETH2 controller card, and when installed is located in the front center of the frame, positioned in front of the power supplies. The panel consists of a display unit capable of displaying two lines of text, each 16 characters in length, and five pushbuttons. -
Page 7: Status Led
3 Preliminary Configuration The first step in setting up a new Densité frame and its associated CPU-ETH2 controller to operate in your network is to configure its IP address to fit into your network structure. This is most easily done by using the onboard menu and local control panel. -
Page 8: Local Control Operation
The web page is the only point of access for upgrading the CPU-ETH2 firmware – this function is not supported under iControl, or via the local control panel. -
Page 9: Feature Management
GUIDE TO INSTALLATION AND OPERATION 5.3 Feature Management This section introduces the operating features of the CPU-ETH2 controller, and describes how to access and control them using: • The iControl interface • The local control panel and menu. The following topics are covered: Identification .......... -
Page 10: Topic - Status Monitoring
Select the Frame tab to see a report on the status of the frame’s CPU, fans and power supplies. The CPU-ETH2 card can be installed in Densité 2 and Densité 3 frames (including Densité 3 mini and Densité 3+ FRI), and the frame type is indicated here. - Page 11 Densité frame. For a more detailed report on the status of a specific card, open that card’s control panel in iControl. 4. CPU-ETH2 Card Resource Usage. Select the Advanced tab to view a report on the usage of the card’s resources:...
-
Page 12: Topic - Network Configuration
GUIDE TO INSTALLATION AND OPERATION 5.3.3 Topic – Network Configuration The CPU-ETH2 controller’s two Ethernet ports can be configured using the iControl interface, or through the card- front menu. Open the NETWORK panel and select the ETH tab to configure them through iControl. -
Page 13: Topic - Snmp Functionality
The local control panel menu can also be used to enter these values: Hint: the first time you set up the CPU-ETH2 card, get the Network details from your IT manager and install them on the card using the menu. The card will then be easy to find using iControl applications. -
Page 14: Topic - Data Restoration
5.3.5 Topic – Data Restoration Many of the Densité-series cards that can be installed in the frame with the CPU-ETH2 controller are complex and have a lot of data stored on-board related to their configuration and parameter values. The CPU-ETH2 controller provides a backup of this data, which can be restored to the card when needed. -
Page 15: Topic - Factory Alignment
The default values are shown underlined in the menu listing beginning on page 16. 5.3.7 Topic – Time management. The CPU-ETH2 controller is time-aware, and its internal clock can be updated via several mechanisms. Open the iControl Time panel. Time (UTC) The data boxes in this section display the time and date currently held in the card. -
Page 16: Topic - Alarms
The panel is organized in columns. Status/Name This contains an expandable tree listing all the alarms reported by this CPU-ETH2 controller. • Each alarm name includes an icon that shows its current status The Overall alarm and GSM contribution columns contain pulldown lists that allow the level of contribution of each individual alarm to the alarm named in the column heading to be set. - Page 17 At the bottom of the window are several other controls Copy to other cards Click this button to open a panel that allows the alarm configuration set for this card to be copied into other CPU-ETH2 controllers in other frames. •...
-
Page 18: Topic - Options
Access the Alarm Report menu item, and scroll through the list of available alarms, setting each to OFF or to report through GPI. 5.3.9 Topic - Options Only one option is available for the CPU-ETH2 controller. The Ethernet Link Redundancy option uses channel bonding to achieve redundancy or increased throughput. TheCPU-ETH2 offers two bonding modes –... -
Page 19: Local Controller Operation
GUIDE TO INSTALLATION AND OPERATION 6 Local Controller Operation Push the CTRL button on the local control panel to access the CPU-ETH2 card’s menu structure shown below. Here is a summary of the top-level menu items and the content they access. -
Page 20: Densité Cpu-Eth2 Menu
GUIDE TO INSTALLATION AND OPERATION 6.1 DENSITÉ CPU-ETH2 MENU STATUS PS1 FAILURE PS2 FAILURE PS1 FAN FAILURE PS2 FAN FAILURE FAN1 FAILURE FAN2 FAILURE GPI ACTIVATED INTERNAL FAILURE CF CARD FAILURE RAM FAILURE FPGA LOAD FAIL ETH1 FAILURE ETH1 DOWN, ETH1 UP <SPEED> <DUPLEX>... -
Page 21: Options
BOOT-LOADER VER [LINK REDUN ON/OFF] * OPTIONS [RESTORE] FACTORY DEFAULT Sets all parameters shown above to their underlined default values. [REBOOT] CTRL EXECUTION * Values marked with an asterisk are displayed but cannot be modified through this menu. CPU-ETH2 | 17... -
Page 22: Upgrading The Cpu-Eth2
Unzip the file, and save the expanded file, which will be named 7659-0102-###.img. This .img file is the file you will need to upgrade the CPU-ETH2 card in step 5 below.. 2. Using a browser on your network, browse to the IP address of the CPU-ETH2 card. - Page 23 The current firmware version is shown at the top of the window 4. Click Browse. 5. In the Choose File to Upload window, browse to the upgrade file you obtained in Step 1 (named 7659-0102-###.img), select it and click Open. CPU-ETH2 | 19...
- Page 24 The window will show the status of the upgrade process. The CPU-ETH2 card will reboot once the upgrade is complete. 7. Click Log Out at the bottom left of the window to exit the CPU-ETH2 web page. 20 | CPU-ETH2...
