Summary of Contents for Prairie Labs Precision JDM-150

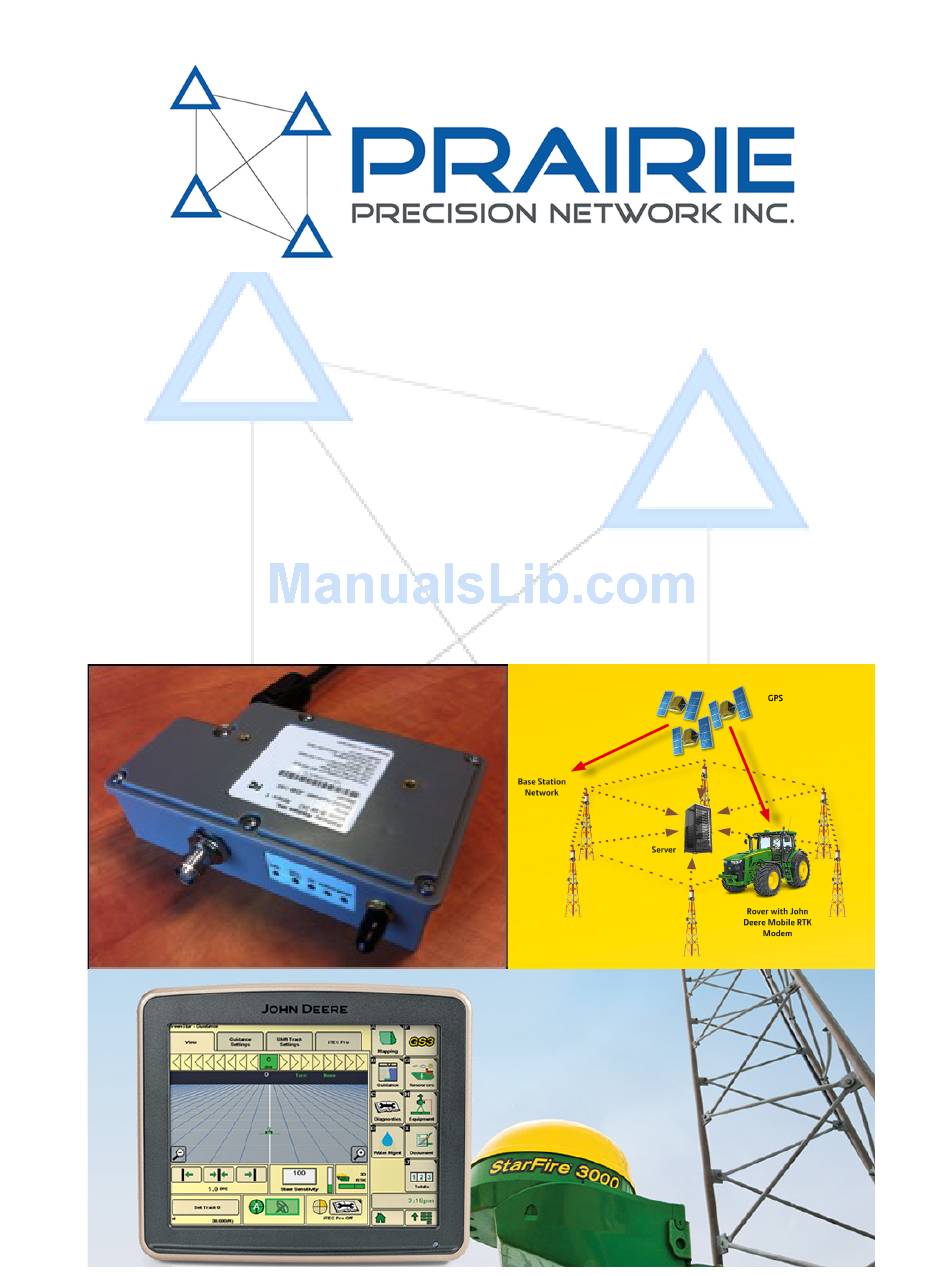

- Page 1 TECHNICAL REFERENCE MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
TECHNICAL REFERENCE MANUAL CONTENTS Introduction........................3 Key Features........................4 Unique Features......................5 Disclaimer........................6 Specifications......................7 Installation........................9 Antenna Location.......................9 GPS Antenna......................9 System Requirements....................10 SIM Card Installation and Data Usage..............10 SF3000 Connection....................11 Modem Mounting......................12 Display Setup........................13 RTK System Status....................14 RTK Diagnostics......................15 Appendix A – Status Indicators..................16 Appendix B –... -
Page 3: Introduction
TECHNICAL REFERENCE MANUAL INTRODUCTION Congratulations on the purchase of your Prairie Precision JDM-150 Modem. The JDM-150 RTK Modem represents the third generation of RTK Network communications devices allowing the John Deere SF3000 receiver to easily and reliably connect to any internet GPS/GNSS Corrections source all the while being managed remotely without any interaction required on the end-users part. -
Page 4: Key Features
TECHNICAL REFERENCE MANUAL KEY FEATURES Connects to NTRIP Casters to retrieve RTK corrections • Connects to direct TCP/IP port streams to retrieve RTK corrections • Supports NTRIP authentications • PRAIRIE PRECISION NETWORK TECHNICAL MANUAL 2016... -
Page 5: Unique Features
TECHNICAL REFERENCE MANUAL UNIQUE FEATURES Integrated 2G/3G Cellular Modem able to roam on any HSPA, GSM or CDMA • capable network Communications pecking order, which intelligently and automatically scans looking • for RTK Corrections from Cellular networks, Wi-Fi, and 900 MHz Remotely monitor and reconfigure while device is in operation through our online •... -
Page 6: Disclaimer
TECHNICAL REFERENCE MANUAL DISCLAIMER While every effort has been made to ensure the completeness and accuracy of the PPN RTK Modem Users Guide (this document), PPN assumes no responsibility for omission and errors. Nor is any liability assumed for losses or damages resulting for the user of the information contained herein. -
Page 7: Specifications
TECHNICAL REFERENCE MANUAL SPECIFICATIONS Size 35 mm x 79 mm x 140 mm (1” x 3” x 5.5”) Weight 450 g (1.0 lbs.) Voltage Range 9 – 25 VDC Max Power Consumption 1 amps at 12VDC when Wi-Fi & 900 MHz active Operating Temperature -30°C to +70°C (-40°F to +158°F) - Page 8 TECHNICAL REFERENCE MANUAL L1 GPS No Connector (Internal Antenna) Standalone Positioning and aGPS Indoor GPS utilizing OneXTRA Position caching for indoor operation with complete GPS blockage TTFF < 10 seconds Serial 3 Wire RS232 MOLEX – Numerous Connector Solutions Power Connector 2 Wire MOLEX –...
-
Page 9: Installation
TECHNICAL REFERENCE MANUAL INSTALLATION Modem Antenna Location: If you are operating in areas of questionable cellular coverage utilize the supplied external antenna mount and/or amplifier. Mount the cellular antenna as high as possible and as perpendicular to the surface as possible. Most high gain antennas require a “Ground Plane”... -
Page 10: Installation Instructions
TECHNICAL REFERENCE MANUAL INSTALLATION INSTRUCTIONS Requirements • John Deere GNSS Receiver • PPN RTK Modem (SF3000 or higher) • Standard SIM card with active data plan • RTK activation on Receiver • Brackets and high gain antenna • GS2 1800/2600, GS3 2630, GS4 •... - Page 11 TECHNICAL REFERENCE MANUAL 2. MODEM CONNECTION TO STARFIRE a. Open the receiver by removing the three screws underneath so that you can locate the 4 pin square connector (figure 4) b. Connect the PPN Modem harness to this connector through the back rubber grommet on receiver and close receiver.
- Page 12 TECHNICAL REFERENCE MANUAL 3. MOUNTING THE PPN MODEM a. You can choose to mount the PPN Modem either on the roof or inside the cab. Inside Cab Mount a. Order JDB-150CBK (figure 7) and JDB-150EXT (figure 8) b. Install JDB-150EXT into globe as described in step# 2 c.
- Page 13 TECHNICAL REFERENCE MANUAL Roof Mount a. Order JDB-150RMK (figure 10) b. Remove Plastic cover and mount modem to bracket (figure 11) c. Replace plastic cover by making sure to connect both wire leads in it to the corresponding connector on the modem (figure 11 & 12) d.
- Page 14 TECHNICAL REFERENCE MANUAL Display Example (Will vary based on the display and firmware version) a. Press b. Press then Press c. The SF3000 Main Info screen will display. d. Press to display the base station status and radio configuration screen. e.
-
Page 15: Rtk System Status
TECHNICAL REFERENCE MANUAL INSTALLATION NOTES RTK Status a. You can also press the to view more information on the RTK Status. b. If you are in a very sparse area of the VRS network the Deere receiver may take a bit longer to initialize to an RTK Solution c. -
Page 16: Rtk Diagnostics
TECHNICAL REFERENCE MANUAL Starfire Homepage (Starfire – F) The Main Starfire Page will show the current Position Mode as well as your Accuracy and GPS Signal %. These values may change depending on the day but should remain around 90-100% if you are within proper RTK Network coverage. -
Page 17: Appendix A - Status Indicators
TECHNICAL REFERENCE MANUAL APPENDIX A – STATUS INDICATORS This section describes the meaning of the five LED indicator lights on the top of the PPN RTK Modem and on the Information screen in the remote web setup tool. POWER This light is used to indicate the status of the modem power source and to signal remote updating of firmware or settings: Solid Unit is powered... - Page 18 TECHNICAL REFERENCE MANUAL This light indicates that the PPN RTK Modem is licensed to operate on a John Deere system and that it is actively communicating with the SF3000 receiver: Not connected to a Deere Receiver or Not Authorized Solid Communicating with a Deere Receiver and emulating the Deere 900 MHz Radio RADIO...
-
Page 19: Appendix B - Cellular Antennas And Amplifiers
TECHNICAL REFERENCE MANUAL APPENDIX B - CELLULAR ANTENNAS AND AMPLIFIERS Cellular Connection One of the main problems with a VRS Network RTK solution is the need to maintain a reliable and constant cellular connection. When considering an RTK VRS problem, make sure to FIRST check for cellular connection. - Page 20 TECHNICAL REFERENCE MANUAL PPN High Gain Antenna We carry a very good 5dBi high gain antenna that works very well at receiving even sparse cellular signal. It is a Magnet Mount Antenna with a 14" Mast, 3" Magnet Base and Enclosed Coils with FME Female Connector.
-
Page 21: Appendix C - Glossary
TECHNICAL REFERENCE MANUAL APPENDIX C – GLOSSARY APN (Access Point Name) Identifies an IP packet data network, that a wireless mobile data user communicate with. An APN may also be used to define the type of service and the priority of that service. For example a group of users may setup a special APN for their RTK data that insures high priority and low latency vs. - Page 22 TECHNICAL REFERENCE MANUAL GNSS Global Navigation Satellite System - Generic term for systems such as GPS and Galileo. GPRS General Packet Radio Service - a non-voice data service for the mobile telephone network. Global Positioning System - US owned positioning satellite constellation. Gives 10-20 m accuracy as standard.
- Page 23 TECHNICAL REFERENCE MANUAL NTRIPServer In practice, the NTRIPServer is software running on a conventional PC that sends correction data from a GNSS receiver (COM-port) to a third installation (from NTRIPSource to NTRIPCaster). As an example NTRIP could be used within a virtual reference network where the protocol is able to transport RTCM data.
