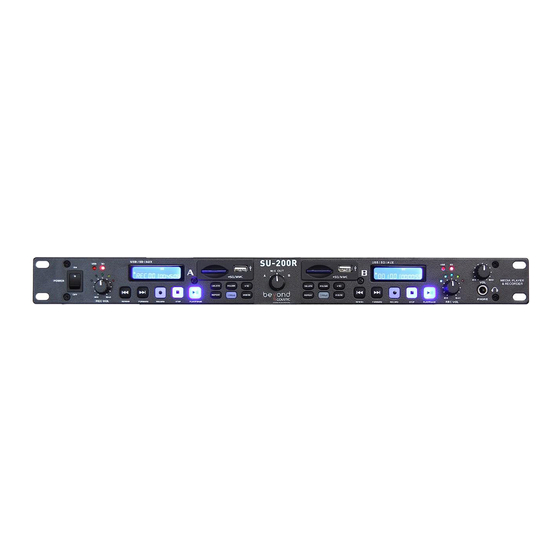

Solid state dual audio recorder

Advertisement

SU-200R
SOLID STATE DUAL AUDIO RECORDER
INSTRUCTION MANUAL
(Version 1.0)
Manufactured by: Beyond Music UK Limited
Web: www.beyondacoustic.co.uk
Email: info@beyondacoustic.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU-200R and is the answer not in the manual?

Questions and answers

Summary of Contents for Beyond Acoustic SU-200R

  • Page 1 SU-200R SOLID STATE DUAL AUDIO RECORDER INSTRUCTION MANUAL (Version 1.0) Manufactured by: Beyond Music UK Limited Web: www.beyondacoustic.co.uk Email: info@beyondacoustic.co.uk...
  • Page 2 3. Do not operate the unit upside-down. 11. Digital signals may cause interference to other equipment such as tuners or receivers. The SU-200R 4. Never open the cabinet. If a foreign object drops into the should be moved away from such equipment if unit, contact your dealer.
  • Page 3: Safety Instructions

    Safety Instructions 9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
  • Page 4: Before Getting Started

    SD cards and USB drives. Its user-friendly operation makes it an ideal recording platform for DJ mixes, band rehearsals, sermons, board meetings, and more. With a full set of playback controls, the SU-200R can also function as a dual SD/USB player with separate and mixed audio outputs. Its slim rack-mountable construction will fit neatly into standard rack cases.
  • Page 5: Getting Started

    Inputs The SU-200R can record any audio signal from a device with RCA outputs or balanced XLR outputs. Most commonly, users will be running the output from a mixing device. Other connections can include direct output from a computer or mp3 player, and even making a copy from the other side of the SU-200R.
  • Page 6 Connecting individual audio outputs: You can connect the audio output from each side independently to a mixer (such as a DJ mixer). This allows the SU-200R to be used as a dual USB/SD player used in conjunction with DJ-style mixers with a Cross-Fader.
  • Page 7: Front Panel

    The toggled output allows you to toggle between side A and side B audio from one set of jacks. The toggle on the front panel is used to select the output. 1) Using a stereo RCA to RCA cable, connect one end to the toggled audio output on the SU-200R. Connect the other end to an available input on your mixer or amplifier.
  • Page 8: Rear Panel

    Features (cont.) 9. SINGLE button – Use this button to enter single playback mode. (see Operations section for instructions on repeat playback mode) 10. USB/SD button – Use this button to toggle between the USB and SD inputs 11. A/B OUTPUT switch – Use this switch to toggle side A, side B, and MIXED output to the MAIN OUTPUT jacks 12.
  • Page 9: Lcd Window

    Features (cont.) 27. 28 XLR IN jacks (balanced) L & R - Connect the audio output from your audio source to these jacks using XLR-F/ XLR-M audio cables 29. 30. RCA IN jacks (unbalanced) R & L - Connect the audio output from your audio source to these jacks using RCA audio cables.
  • Page 10: Inserting An Sd Card

    3. Use the USB/SD button to select SD. Remove an SD card by pushing the card forward until it clicks and pushes out. NOTE: The SU-200R cannot accept cards larger than 32GB. Inserting a USB Flash Drive 1. Insert the USB drive or USB cable into the USB slot.
  • Page 11: Adjusting The Recording Level

    Operations (Cont.) Adjusting the recording level 1. Ensure that your source signal device is plugged into the input of the SU-200R. 2. With the source signal playing, increase the REC LEVEL KNOB until the yellow REC LED starts to blink.
  • Page 12 Operations (Cont.) Recording 1. Insert an SD card or USB drive to be recorded to. NOTE: It is recommended that recorded files are copied or 2. Press the USB/SD button to select the device. deleted using a computer as files deleted on the recorder 3.
  • Page 13: Troubleshooting

    Check the recording level (see Operations section) No audio output from the SU-200R Check the output connections on the back of the SU-200R and connected devices. (see Operations section) Check to make sure the output toggle selector is set correctly. (see Operations section) Files are not recording to SD card/USB drive Check the SD card or USB device on a computer to ensure it is working correctly.
