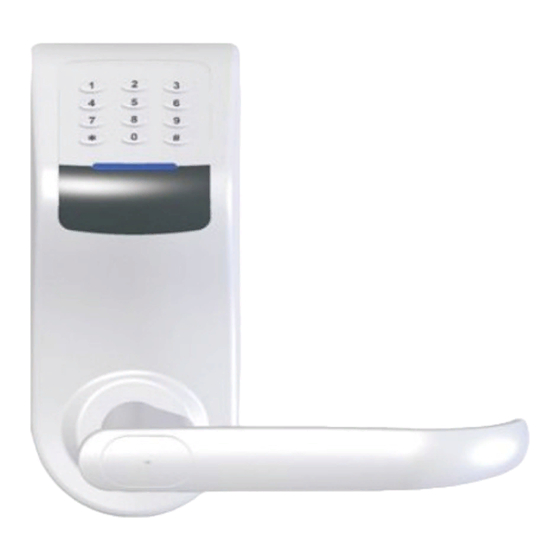

Summary of Contents for hune 6000RL-M
- Page 1 6000 SERIES KEYPAD LOCK USER MANUAL OPERATION INDEX 1. Keypad function “0~9”: ID code, password, setting parameters “#”: confirm and next step “*”: delete current input...
- Page 2 2. Operation diagram 3. Simple operation Add user: 【#】+〖master code〗+〖master password〗+【#】+〖new user code〗+〖new user password〗+【#】...
- Page 3 Modify password： 【#】+〖user code〗+〖password〗+【#】+〖user code〗+〖new user password〗 +【#】 Remarks: two times user code must be same. Unlock the door： 〖user code〗+〖password〗+【#】 4. Initialization Press【#】+【0】+【3】+【#】 Hear beep, press deadbolt button last for 3seconds. After one beep, release deadbolt button. Yellow light flash, after delete lock information successfully will have one long beep.
- Page 4 Modify user authority （0X32） 【#】+〖master code〗+〖master password〗+【#】+〖 “32” 〗+【#】+〖user code be modified〗+【#】+〖user authority〗+【#】 Modify unlock times（0X33） 【#】+〖master code〗+〖master password〗+【#】+〖 “33” 〗+【#】+〖user code be modified〗+【#】+〖unlock times〗+【#】 Modify valid time（0X35） 【#】+ 〖master code〗+〖master password〗+【#】+〖 “35” 〗+【#】+ 〖user code〗+【#】+〖valid time〗+【#】 Tips: a. Valid time: YY-MM-DD, must 6digital total. b.
- Page 5 Release deadbolt 3 ways: A) press deadbolt button again B) press down the handle on back side panel C) 【#】+【0】+【0】+【#】 Unlocked deadbolt door 1 ： press user code have authority for unlocked deadbolt-the password-【#】 2：release deadbolt then unlocked the door normally. CLOCK OPERATION Register clock（0X61）...
- Page 6 +【#】 (User must have authority for this operation.) Open scrambled password function（0X91） 【#】+【#】+〖user code〗+〖user password〗+【#】+〖 “91” 〗+【#】+〖 “03” 〗 +【#】 (User must have authority for this operation.) Close scrambled password function（0X91） 【#】+【#】+〖user code〗+〖user password〗+【#】+〖 “91” 〗+【#】+〖 “58” 〗 +【#】 (User must have authority for this operation.) Maximum explore times（0X92）...
