Summary of Contents for Avita DD1-10.2

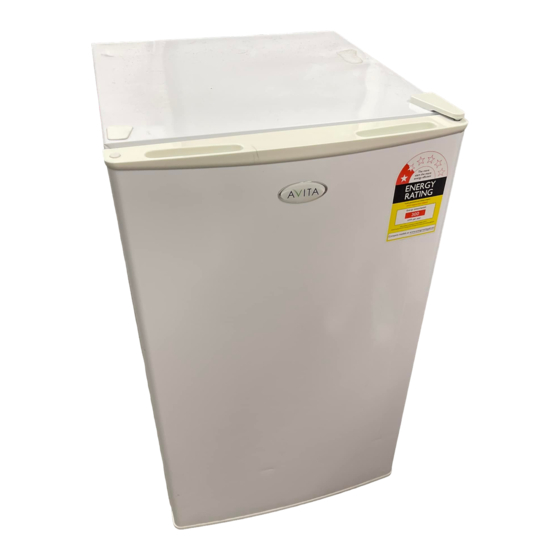

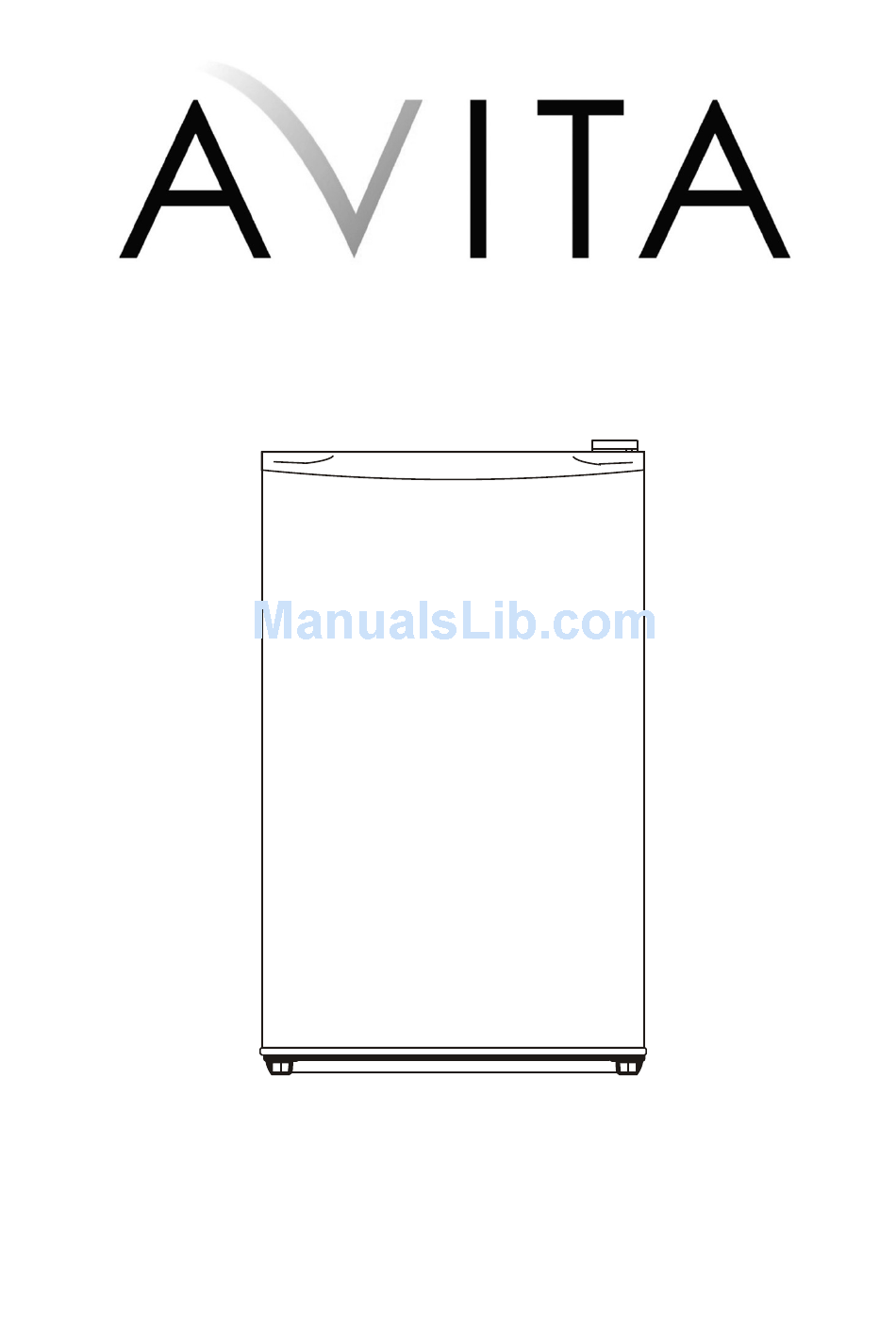

- Page 1 82L Freezer User Manual Model No.: DD1-10.2 Item No.: 900854 230-240V~ 50Hz Rev 5...
-
Page 2: Table Of Contents
Important Safeguards ............3 Component Diagram .............5 Before Use ................6 Installation ................6 Ventilation Requirements ..............7 Installation Steps ................7 How to Operate ..............8 Controlling the Temperature ............. 8 The Freezer Compartment ............9 Freezing Fresh Food ................. 9 Frozen Food Storage ..............10 Hints and Tips ................. -
Page 3: Important Safeguards
Important Safeguards When using electrical appliances, basic safety precautions should always be followed, including the following: • Carefully read this instruction manual before using appliance. • Keep appliance out of reach of young children. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. • Do not operate appliance underneath or near flammable or combustible materials (e.g. curtains). • Unplug this appliance before cleaning or storing or when unused for long periods of time. •...
-
Page 5: Component Diagram
Component Diagram Thermostat Control Page 5 of 18... -
Page 6: Before Use
Before Use Remove all securing tapes. Wash the inside of the appliance with lukewarm water with a little Bicarbonate of Soda added (10ml of Bicarbonate of Soda to 1 litre of water). Note: Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol, etc. -
Page 7: Ventilation Requirements
Ventilation Requirements For good ventilation keep enough space between the side walls and your Freezer. Its back needs to be at least 50mm away from the wall, its sides at least 25mm separately and the height from over its top is not less than 50mm. Gently push the Freezer into place, ensuring that the back of the freezer maintains a gap of 50mm from the wall. -
Page 8: How To Operate
Allow the appliance to stand for 2 hours after installation before plugging in. After 2 hours, plug in the Freezer and switch on at the mains supply. Turn the thermostat control to the required setting. A midway setting is usually suitable for normal operation (see Controlling the Temperature). -
Page 9: The Freezer Compartment
These are best assessed against a temperature reading on a thermometer buried in the frozen food. The reading must be taken quickly as the thermometer temperature will rise rapidly after removal. The Freezer Compartment Freezing Fresh Food A maximum of 4 kilograms of food can be frozen in 24 hours, using the "Max" setting on the Thermostat Control. -
Page 10: Frozen Food Storage
Frozen Food Storage The appliance has the following net storage volume: 85 litres. This is a standard measurement and the actual capacity depends upon the density and sizes of the food. The above figures are based on an average density of 0.32kg per litre. Pre packed commercially frozen food should be stored in accordance with the manufacturer’s instructions for a 4 star frozen food compartment and should be put in the freezer as soon as possible after purchase. -
Page 11: Normal Operating Sounds
Normal Operating Sounds You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing to the cooling plate/evaporator or the fixed freezer baskets at the rear. When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound or pulsating noise from the compressor. -
Page 12: In The Event Of A Power Failure
Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer. Thaw frozen food in the fridge. This will ensure safer defrosting of foods and reduce the work of the refrigeration unit. Try to avoid keeping the door open for long periods, or opening the door too frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often. -
Page 13: Cleaning
Cleaning Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. Internal Cleaning Wash the inside of the appliance with lukewarm water with a little Bicarbonate of Soda added (10ml of Bicarbonate of Soda to 1 litre of water). External Cleaning Wash the outer cabinet with warm soapy water. -
Page 14: Door Reversal
10 Door Reversal This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below: Remove the upper hinge cover ( 6 ) first. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame then take away the upper hinge (5). -
Page 15: Troubleshooting
11 Troubleshooting BEFORE contacting a service agent, check the following points: Symptom Solution Check that the fuse has not blown No power to the appliance Check that there is power at the socket. Check that the ambient temperature is within the freezer’s operating limits of 16°C to 32°C. -
Page 16: Technical Specifications
12 Technical Specifications Net Weight: 30kg Supply: 230 - 240V~ 50Hz Energy Consumption: 0.82kWh/24h Rated current: 0.7A Power Rating: 100W Protection class: Refrigerant: R600a(47g) Tropical Rating: Insulation blowing gas: Cyclopentane Specification are subject to change without prior notice Page 16 of 18... -
Page 17: R600A Refrigerant Warning
13 R600a Refrigerant Warning • This appliance contains a small quantity of R600a refrigerant which environmentally friendly, flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. • During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged. -
Page 18: Warranty Against Defect
14 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
