Summary of Contents for Sonic World THE BRICK

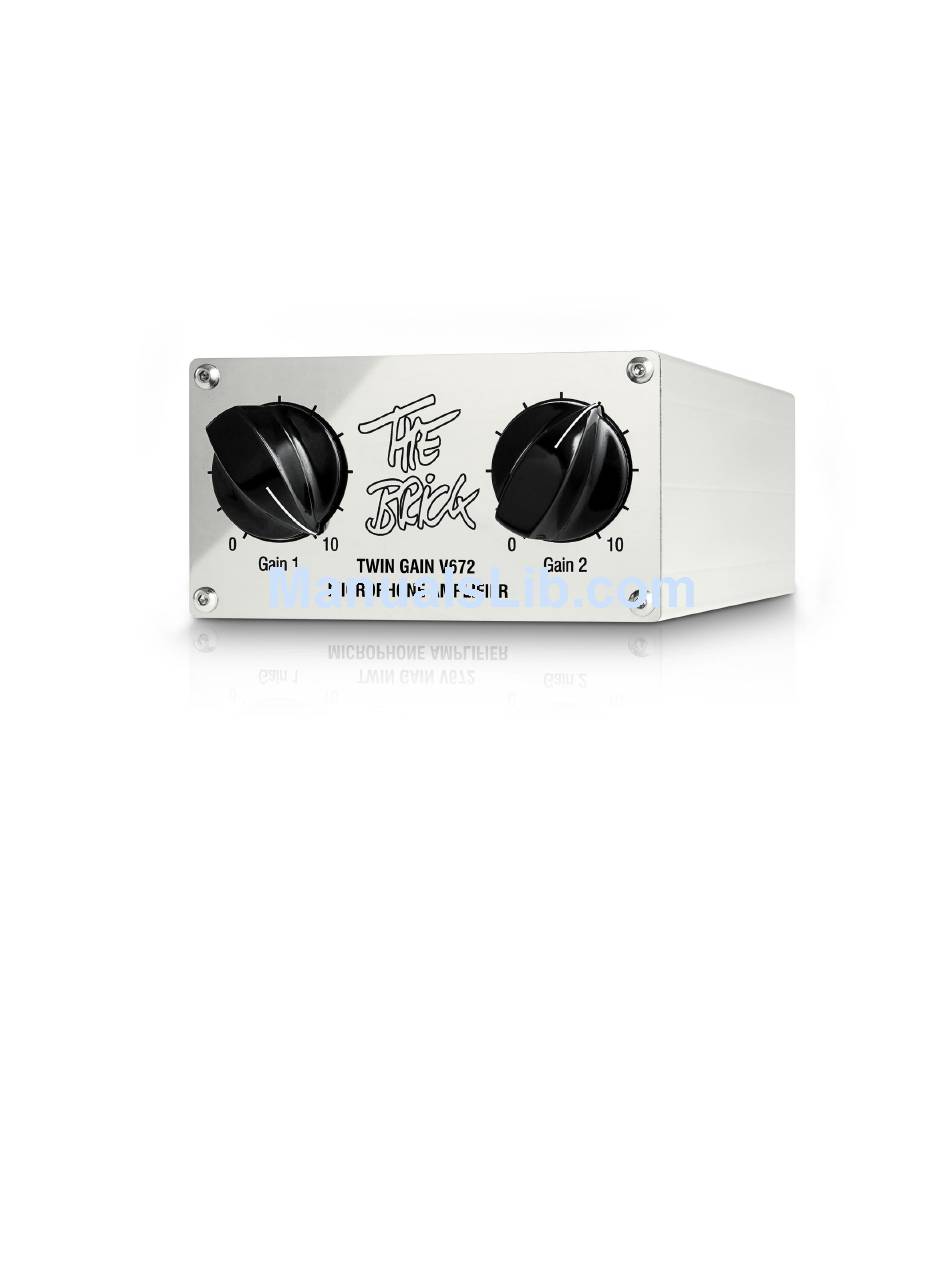

- Page 1 SonicWorld The Brick Twin Gain V672 Class-A Mic Preamp Quickstart Guide...
- Page 3 Our goal was to create an ultra-compact front end with astonishing performance to allow the amplification of any microphone or instrument with incredible headroom. "The Brick" is built on a modified vintage Telefunken V672 amplifier card from an age when the design of audio equipment was not determined by affordability.
-
Page 4: Back Panel Connectors
Back panel connectors Neutrik XLR and 1/4" input jacks Two completely separate outputs Output 1 (symmetrical 1/4” jack) and Output 2 (XLR) enable simultaneous recording to a DAW in addition to analog monitoring without any delay AC input jack for 24V power supply (included) Connectors for external 24 and 48V power supply.
