Kebo UPS-650D Operation Manual

Equipment Operation
Scope
1.0
This instruction installation, operation and troubleshooting of the Multistar D-series
uninterruptible power supply (UPS). covers replacement of an infrared lamp emitter
in an IR furnace chamber Applies to most RTC, GBT and LCI infrared furnaces.
Introduction
2.0
UPS-D series can instantly switch you computer to emergency backup power and
allows you to respond to brief power outages reducing possibility of data loss or
downtime. It continuously conditions the power coming into your computer and acts
as a power supply. This state-of-the-art UPS is specificatlly designed for PC users
and is also suitable for computer periherals. It is equipped with an LCD display for
the working status. The UPS has a microprocessor controller that renders the product
an intelligent UPS capable of self-protection and fault diagnosis. The built-in AVR
functions automatically to maintain a stable voltage supply as the supply power
varies. High-performance surge supression helps to protect the furnace computer
from electrical noise and damaging power surges.
Performance
3.0
Uninterruptible Power. Protects data by supplying batery backup when power fails.
Microprocessor Control. Provides diagnostics.
LCI Display and Audible Alarms. Actively informs when unit is on battry, if the battery is low, or if there is an
overload condition.
Battery. Sealed lead-acid maintenance-free battery.
Automatic Detection. When the UPS is powered ON, it immediately performs an inspection of the battery capacity.
Automatic Voltage Regulation. Corrects over and under voltage conditons without draining the battery. This
preserves battery resources and ensures optimum runtime during complete loss of power.
Surge Protection. Shields hardware from damage from line power surges.
Automatic Charge. The UPS charges its battery whenever it is connected to facilty power.
Installation
4.0
Location. Must be in a protected area with adequate airflow and free of excessive dust. Do not operate the
UPS where the temperature and humidity is outside the specified limits.
Charge battery. The battery in the UPS will lose some charge when the unit is offline, even when there is
no drain on the discharge side. The UPS will completely recharge after 8 hours of normal operation. Do
not expect full battery run time during an extended recharge.
UPS-D Series
Unintrerruptible Power
Supply
TEC-876
DOC NBR:
JMC 9/24/14
APRVD:
1 3
PAGE OF

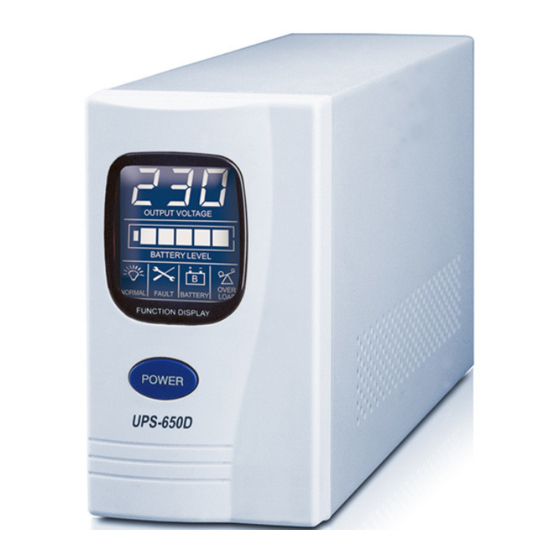

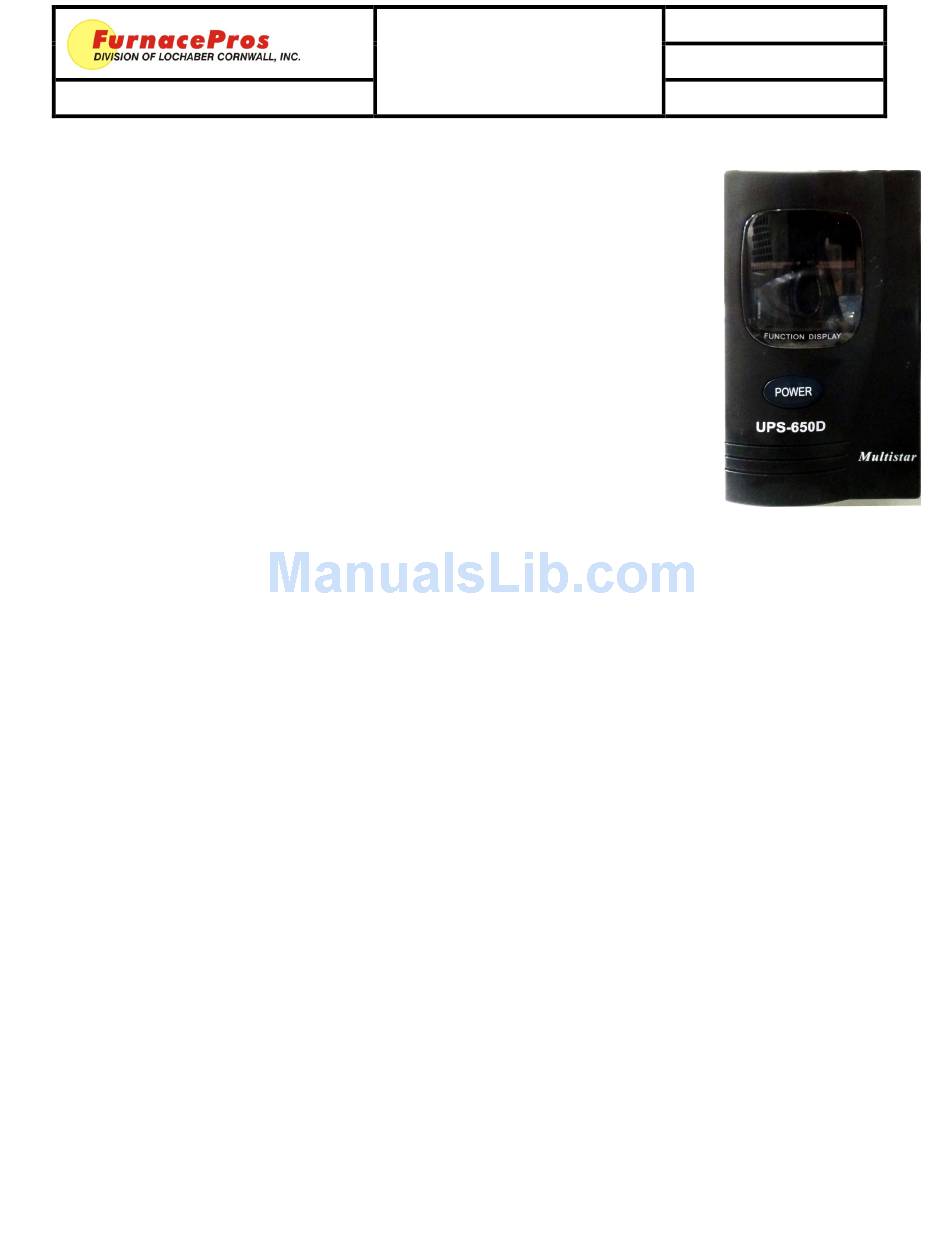

Figure 1-1 Multistar UPS-650D
