OWNER'S MANUAL
MODEL # TGL-500
HITCH LIFT
For Customer Service Call or Fax
1 (800) 87-LARIN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGL-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Larin TGL-500

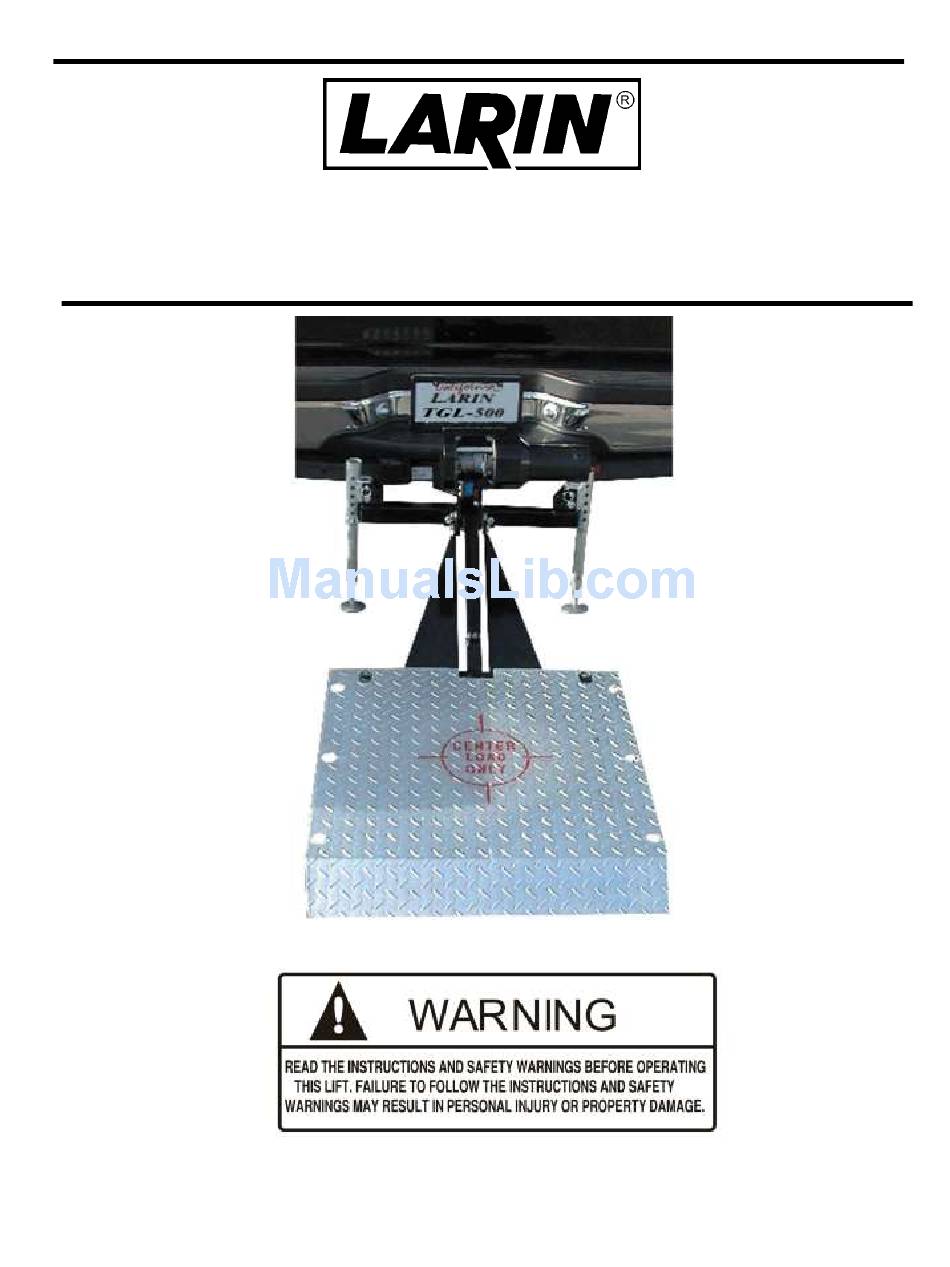

  • Page 1 OWNER’S MANUAL MODEL # TGL-500 HITCH LIFT For Customer Service Call or Fax 1 (800) 87-LARIN...
  • Page 2 SPECIFICATIONS…….. SPECIFICATIONS ARE SUBJECT TO CHANGE Max Capacity:…………….500 lbs. WITHOUT NOTICE Motor Power:…………… 12 VDC FIGURE 1 Contents of Carton Description Qty Part # Hitch Adapter Plate……1 Lifting Arm……………1 Guide Arms……………2 Pivot Tube……………..1 Platform Arms…………2 Outrigger Support …….1 Outrigger Assemblies….2 Not Shown on this page (See Parts Diagram): Hardware, CTN.
  • Page 3: Assembly Instructions

    If you encounter any problems or difficulties, contact the manufacturer’s toll free at 1-800-87-LARIN to reach customer service. WARNING! USE HOLD DOWN STRAPS TO SECURE THE LOAD TO THE DECK PLATE WHEN NECESSARY.
  • Page 4 ASSEMBLY INSTRUCTIONS 1 Attach the Outrigger Arm Attach outrigger support (F) to the hitch adapter (A) using two M12 x 75 bolts (#14) with M12 flat washers (#5) and M12 nylon lock nuts (#4). 2 Attach the Outriggers Attach the two outrigger assemblies to the far outside lower holes in the outrigger tube (F) as shown.
  • Page 5 ASSEMBLY INSTRUCTIONS 6 Position the Platform Arms onto the Pivot Tube Do not use any fasteners at this time, simply slide the Platform Arms (E) onto the ends of the Pivot Tube (D) The assembly should now look like this……………………………. 7 Install the Deck Plate onto the Platform Arms Begin by moving the outrigger assemblies into the down position.
  • Page 6: Installation Instructions

    ASSEMBLY INSTRUCTIONS 10 Install the Limit Switch Use a straight bladed screwdriver to remove the two screws and washers in the location shown by the arrows. The Limit Switch assembly is packed in a carton with the pistol-grip trigger, some cables and connectors. The Limit Switch has a round yellow connector on the end.
  • Page 7 INSTALLATION INSTRUCTIONS 12 Connect the 12 VDC Disconnect the vehicle battery positive terminal. You will be making power connections and it is not safe to work with the power connected. The Hitch Lift uses 12 Volts DC, and it will require 40 amps at full load. Most manufacturers will fuse this line at 35 or 40 amps, but if the cable is #6 or larger you may be able to install a larger fuse.
  • Page 8: Operating Instructions

    If you encounter any problems or difficulties, contact the manufacturer’s toll free at 1-800-87-LARIN to reach customer service. WARNING! USE HOLD DOWN STRAPS TO SECURE THE LOAD TO THE DECK PLATE WHEN NECESSARY.
  • Page 9 OPERATING INSTRUCTIONS To Raise the lift Lower the outrigger tubes so they are about 3 inches above the ground. Lower the vehicle tail gate. Place the load on the platform. Secure the load with hold down straps. Place the direction selector switch in the “UP” position Operate the trigger until the load is just beginning to come off the ground.
  • Page 10 OPERATING INSTRUCTIONS To Lower the lift Lower the outrigger tubes so they are about 3 inches above the ground. Plug in the pistol-grip trigger. Lower the vehicle tailgate. Remove the retaining clips and pull the quick release pins from the Deck Plate. (The Deck Plate will be free to rotate after the pins are pulled, make sure that you are not in a position to be struck by the Deck Plate.) Rotate the Deck Plate to the level operating position and replace the pins and clips.
  • Page 11: Important Considerations

    Because of potential hazards associated with misuse of the lift, NO ALTERATIONS SHALL BE MADE TO THIS PRODUCT.  Because of potential hazards associated with any other application, THE MOTORIZED CABLE MODULE SHALL NOT BE USED FOR ANY OTHER PURPOSE THAN TGL-500 LIFT.
  • Page 12: One Year Limited Warranty

    ONE YEAR LIMITED WARRANTY Larin Corporation warrants its products for a period of one year from the date of purchase against manufacturer or material defects. This warranty does not cover damage caused by accident, misuse, or tampering/altering of the product, and a charge will be made for such repairs.
