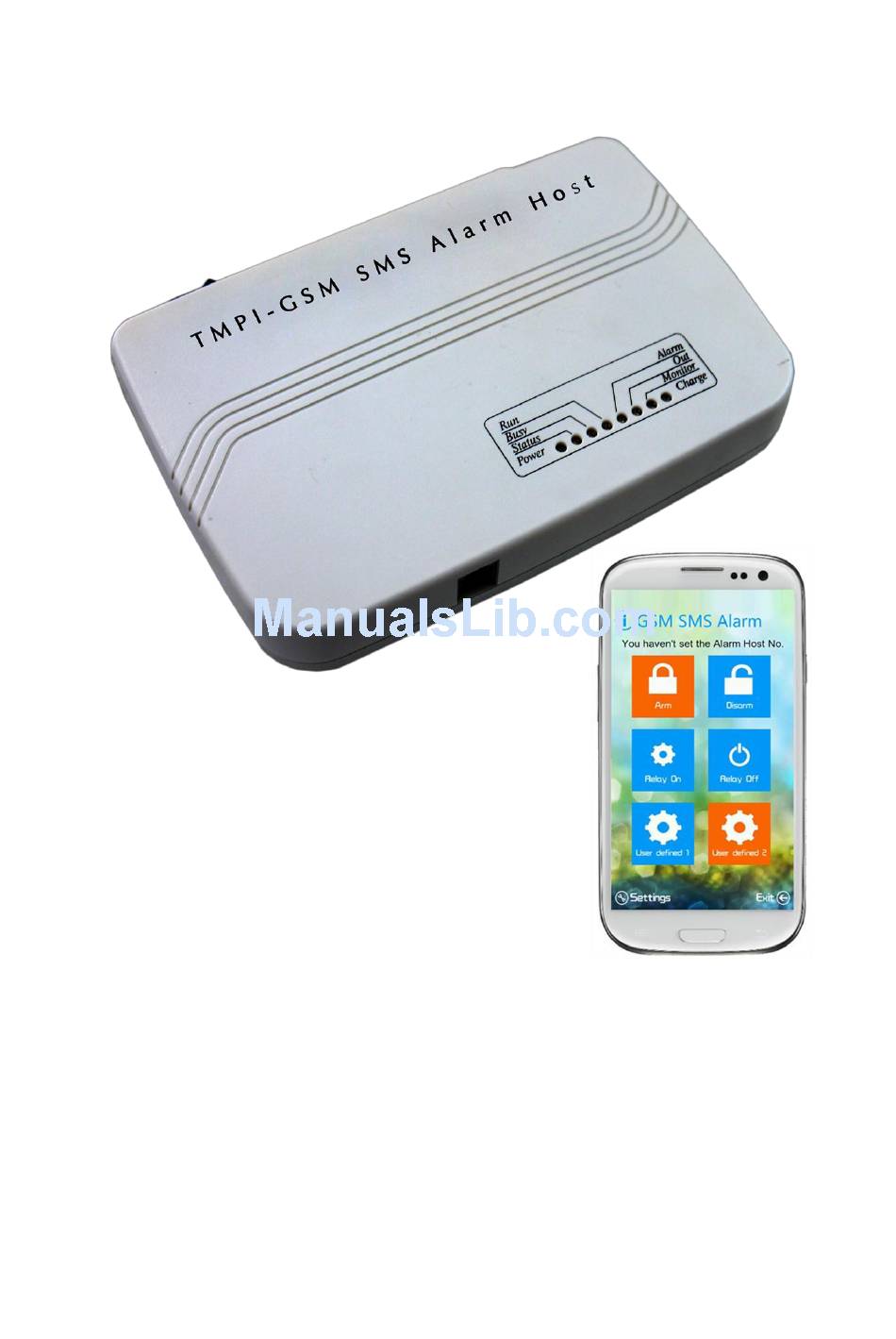

GSM SMS Alarm
TMPI
User Manual
Ver 1.1 Date Issued: 2012-10-08

Advertisement

loading
Need help?

Need help?

Do you have a question about the s3523 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honghui Electronic s3523

  • Page 1 GSM SMS Alarm TMPI User Manual Ver 1.1 Date Issued: 2012-10-08...
  • Page 2: Table Of Contents

    Table of contents 1. System Introduction ....................2 2. Features ........................2 3. Installation ......................3 4. System Setup ......................5 5. Use Method ......................10 6. System Configurations ..................11 7. Technical Specifications ..................11 8. Trouble Shooting ....................12 - 1 -...
  • Page 3: System Introduction

    Dear Client: Thank you for purchasing our GSM dual-frequency (four-frequency)alarm system.to enable you to use the product correctly and conveniently. Please read the operating instructions carefully before using the product. The product shall be subject to improve without any further notice, please consult agent for any question.
  • Page 4: Installation

    11) The system may arm/disarm the unit and set up the parameters of the host via message or phone call. 12) The system may add/reduce the quantity of controllers and detectors as required (8-channel wireless defense area and 2-channel wired defense area),can use all kinds of detectors such as smog, gas vibration and IR opposite-type detectors GSM platform.
  • Page 5 L12: Charging status indicator. Note: L5: Turn on in case of external power supply, turn off of no external power supply L6: It is means arming status if the green indicator blinks and means disarming status if always lighted. L7: Red indicator means the host is busy (alarming, sending message and calling) L8: Network signal indicator, at means it's in searching status if the indicator blinks with time interval of on a second.it means the network signal is normal if the indicator keeps on for one second and keeps off for three seconds.
  • Page 6: System Setup

    than 10mm. 3.6 Relay linkage interface It may be for connection to the lighting device or camcorder or other devices, when the host sets up the linkage output in three minutes, the lighting device or camcorder will be activated immediately alarm signal is received (relay touch closes for three minutes). 4.
  • Page 7 4.2 Code Hopping Method of the Wireless Detector Table I Type code 12(D3) 11(D2) 10(D1) 9(D0) 0xC0 Disarm 0x0C Emergency alarm 0x30 Wireless defense 1 0xCC Wireless defense 2 0xCF Wireless defense 3 0xF0 Wireless defense 4 0xF3 Wireless defense 5 0xFC Wireless defense 6 0xFF...
  • Page 8 Example 2: set up the eighth defense area of 12-pin wireless detector: Code on the back of the controller Setup the first defense area of 12-pin 4.3 Operation Code Table II Arm the host(default) Disarm the host Three minutes of linkage output Close the linkage output Give off alarm sound for three minutes The host stops the alarm sound...
  • Page 9 Set up the second auto dialing alarm Set up the third auto dialing alarm number number Set up the four auto dialing alarm Set up the fifth auto dialing alarm number number Inquire the alarm message contents of Set up the message contents of the wired defense area wired defense area 1,six characters at most, initial defaulted contents:...
  • Page 10 receiving, repeat the above operations or use one message to edit several orders to finish the setup of three alarm numbers. Note: if the first message alarm receiving number is not set up, it's unable to know whether the setup is correct or not, so it's advised to set up the first message alarm receiving number before setting up the host 4.4.2 Inquiry of message alarm receiving number...
  • Page 11: Use Method

    phone by message after receiving, Ex.: edit wired defense area1 as home alarm, edit and send 1234#71#home alarm# to the host, the host will reply the mobile phone by message after receiving. Seethe table of Operation Code for details. (2) Setup of the wireless defense area message (flexible edit): the message of the wireless defense area (eight) sent by the host to the alarm receiving mobile phone may be flexibly edited, the default is wireless defense 1 alarm and wireless defense area 2 alarm...wireless defense area 8alarm, edit and send 1234#8*message# (*means1-8,1 represents the first defense area) to the host, and the host...
  • Page 12: System Configurations

    5.2 Operate the host remotely All functions of the host may be conducted via message or phone call, dial the host number and then press 1234+operation code after hearing the alert from the host, a long beep sound means the successful operation, two beep sounds mean the operation is not completed and please repeat the operation.
  • Page 13: Trouble Shooting

    Maximum power: AC≤ 40W Wired defense area: two Wireless defense area: Eight 10) Working temperature: -30~+50 11) GSM module: Industrial communication module, working frequency: 900MHZ/1,800MHZ (optional: 850/1900) 12) Effective distance of the remote controller: 30M(open field) 8. Trouble Shooting The host fails to turn on the green indicator: No GSM SIM card is inserted or the antenna is not installed or the GSM SIM card is wrongly inserted.
