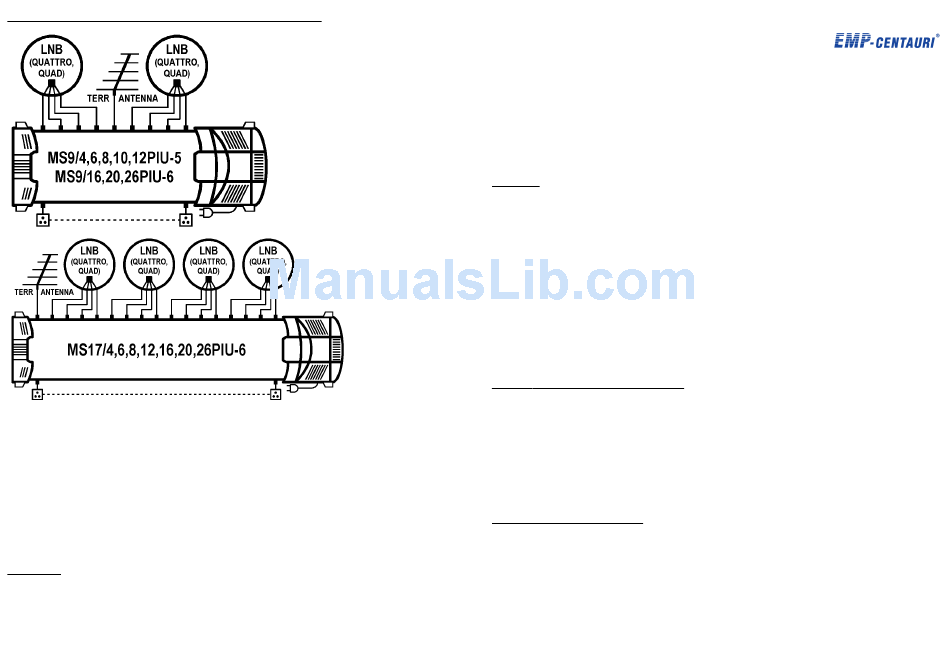

12 EMP-Centauri's PROFI CLASS Related Products
13 Contact
EMP-Centauri s.r.o.
5. kvetna 690
339 01 Klatovy 4
Czech Republic
tel: (+420) 376 314 852
fax: (+420) 376 314 367
info@emp-centauri.cz
www.emp-centauri.eu
8 z 8
Instruction Manual
MS13/4PIU-6
MS13/12PIU-6
V10
MS13/6PIU-6
MS13/16PIU-6
V10
MS13/8PIU-6
MS13/20PIU-6
V10
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its installation and putting
into operation, read carefully the entire operation manual. Keep the purchase and rework (if any)
records for future need.
Content
1 Field of Application, Warranty
2 Technical Specifications
12 EMP-Centauri Related Products
13 Contact
1 Field of Application, Warranty
The product is designed for the distribution of satellite (SAT), terrestrial (TERR); TV and radio
signals. We recommend the device to be installed and serviced by the qualified technician.
EMP-Centauri's PROFI CLASS products are covered under 6 (six) years warranty from the date
of purchase. The warranty shall not apply to the product used for other than the specified purpose.
The user will be responsible for injury or material damage which may arise in consequence of
any product use in contradiction with the manual. It is prohibited to dismantle the product and
make any interventions in it. Repairs or any interventions in the product may be performed only
by EMP-Centauri company, or other companies authorized by EMP-Centauri.
2 Technical Specifications
The products are standalone multiswitches for distribution of terrestrial and satellite signals from
3 satellite positions (12 polarities) to 4 (MS13/4PIU-6), 6 (MS13/6PIU-6), 8 (MS13/8PIU-6), 12
(MS13/12PIU-6), 16 (MS13/16PIU-6), 20 (MS13/20PIU-6) or 26 (MS13/26PIU-6) users.
Multiswitches are controlled by DiSEqC 2.0 commands from a satellite receiver. It is enabled to
switch on active or passive mode of terrestrial band. Multiswitches are compatible with quad
LNB, it is possible to switch on or off signal 22 kHz at inputs. Terrestrial input can supply
terrestrial antenna preamplifier with DC voltage, the supply is electronically protected against
short-circuit. Multiswitches are powered from internal power supply P3U27.
MS13/26PIU-6
V10
V10
V10
V10
1 z 8
1/003028 F
1
1
3
3
3
5
5
6
6
7
7
8
8
Advertisement
Table of Contents
Summary of Contents for EMP-Centauri MS13/4PIU-6 V10
- Page 1 We recommend the device to be installed and serviced by the qualified technician. EMP-Centauri's PROFI CLASS products are covered under 6 (six) years warranty from the date of purchase. The warranty shall not apply to the product used for other than the specified purpose.
- Page 2 10 S ymbols Explanation Specification MS13/4PIU-6 MS13/6PIU-6 MS13/8PIU-6 MS13/12PIU-6 Number of Inputs certificate of conformity Number of Outputs 4 international standard for digital satellite equipment control, number (1.0, 1.1, 1.2 Frequency Range TERR 5-862 MHz (pas), 40-862 MHz (act), SAT 950-2300 MHz or 2.0) determines DiSEqC version.
- Page 3 75 Ω loads for the impedance matching of unused outputs (2 pcs, others can be ordered • 9 Troubleshooting from EMP-Centauri, code 1000066) In the case of damage or missing accessories please contact your dealer. Always disconnect the product from the power grid before working on product, otherwise you risk the electric hazard.
- Page 4 Remove approx. 10 mm of the inner plastic insulation (approx. 5 mm of the insulation 6 Product Settings remains in a place). For all SAT inputs, it is possible to change level of signals by means of attenuators in 15 dB Carefully screw the F connector on the cable end until the plastic insulation levels with range.
