Summary of Contents for Elan MULTI-PARCAN-54x3W-RGBW

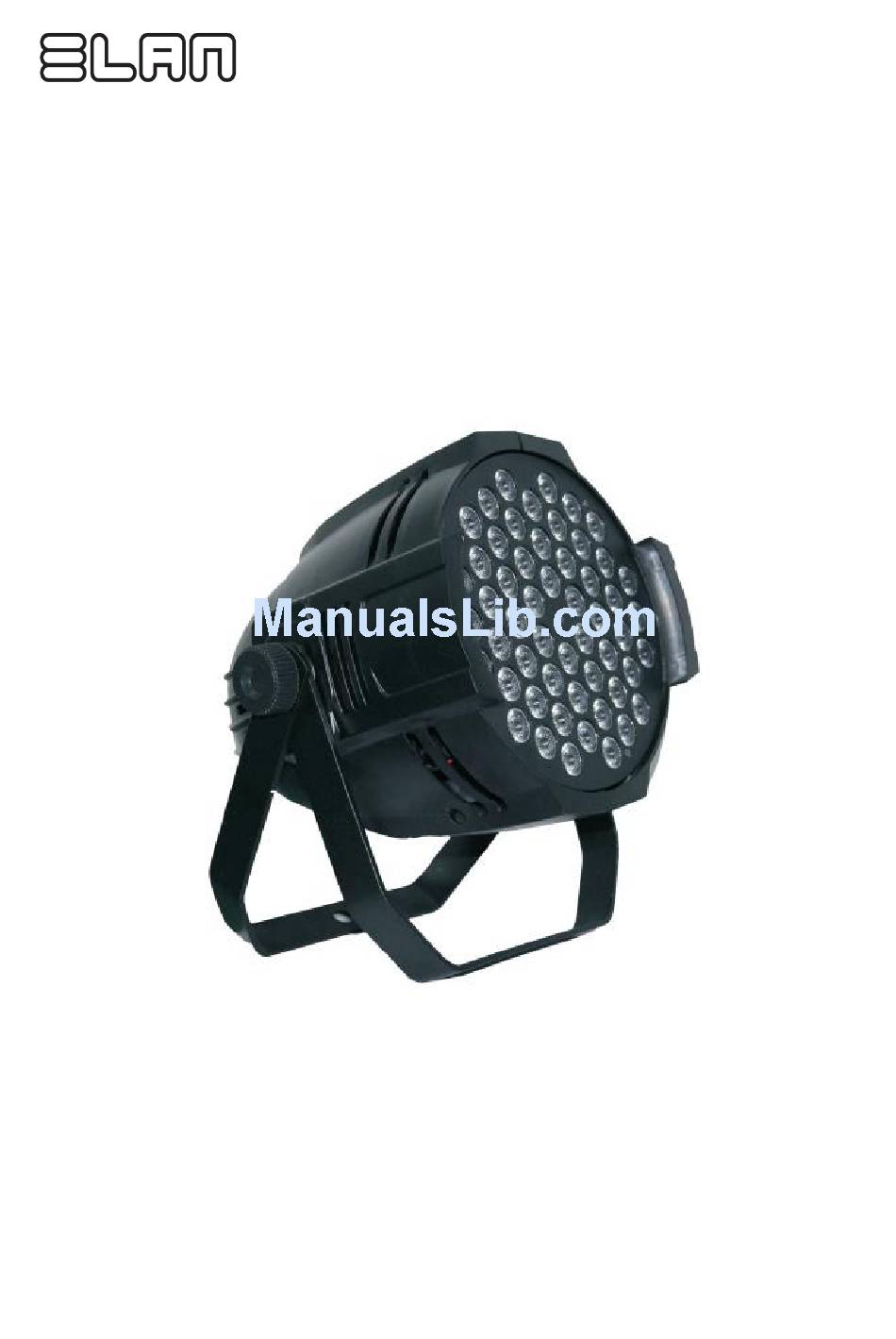

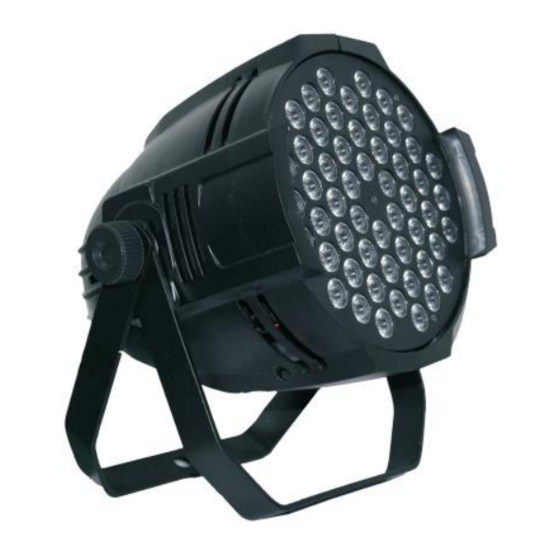

- Page 1 MULTI-PARCAN-54x3W-RGBW User’s Manual Thank you for using our LED PAR light 54x3W RGBW, for your safety, please read the user`s manual carefully before your operation. Note: This manual includes the important information of installation, operation,...
- Page 2 safety instruction. Please install and operate as requested in the manual, meanwhile, please keep the manual for any unexpected requirment I. Preface This Manual includes the important information of installation and operation. Please install and operate the light according to the instructions strictly. And it must be power off when open the light or before repair. ...
- Page 3 II. Technology Parameter Control Channels: 8 DMX Channels Beam Angel: 25° Control Mode: AUTO, Master/Slave, DMX512, Sound Active Working Environment: Indoor, -20℃-40℃ Mixing Color: RGBW mixing color IP Grade: IP20 Power Supply: AC 100-240V/50-60Hz ...
- Page 4 Mode Up Down Enter A. Button specifications 1>. Button “Mode”, change the operate mode 2>. Button “Up”, change the operate mode of submenu or add the value 3>. Button “Down”, change the operate mode of submenu or subtract the value 4>.
- Page 5 VII. DMX Channel Form...
- Page 6 DMX Channel DMX Value Functions 0-255 dimming (from darkness to brightness) 0-255 Green dimming (from darkness to brightness) 0-255 Blue dimming (from darkness to brightness) 0-255 White dimming (from darkness to brightness) 0-255 General dimming (from darkness to brightness) No function 4-255 Color changing (from slow to fast) No function...
- Page 7 Familiar Faulty Disposal 1. Check if the power cable is correctly connected No display when power is on 2. Check the power supplier is correctly connected 1. Check if DMX address code is correctly set Light is out of control 2.
