Orion NE-3228 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

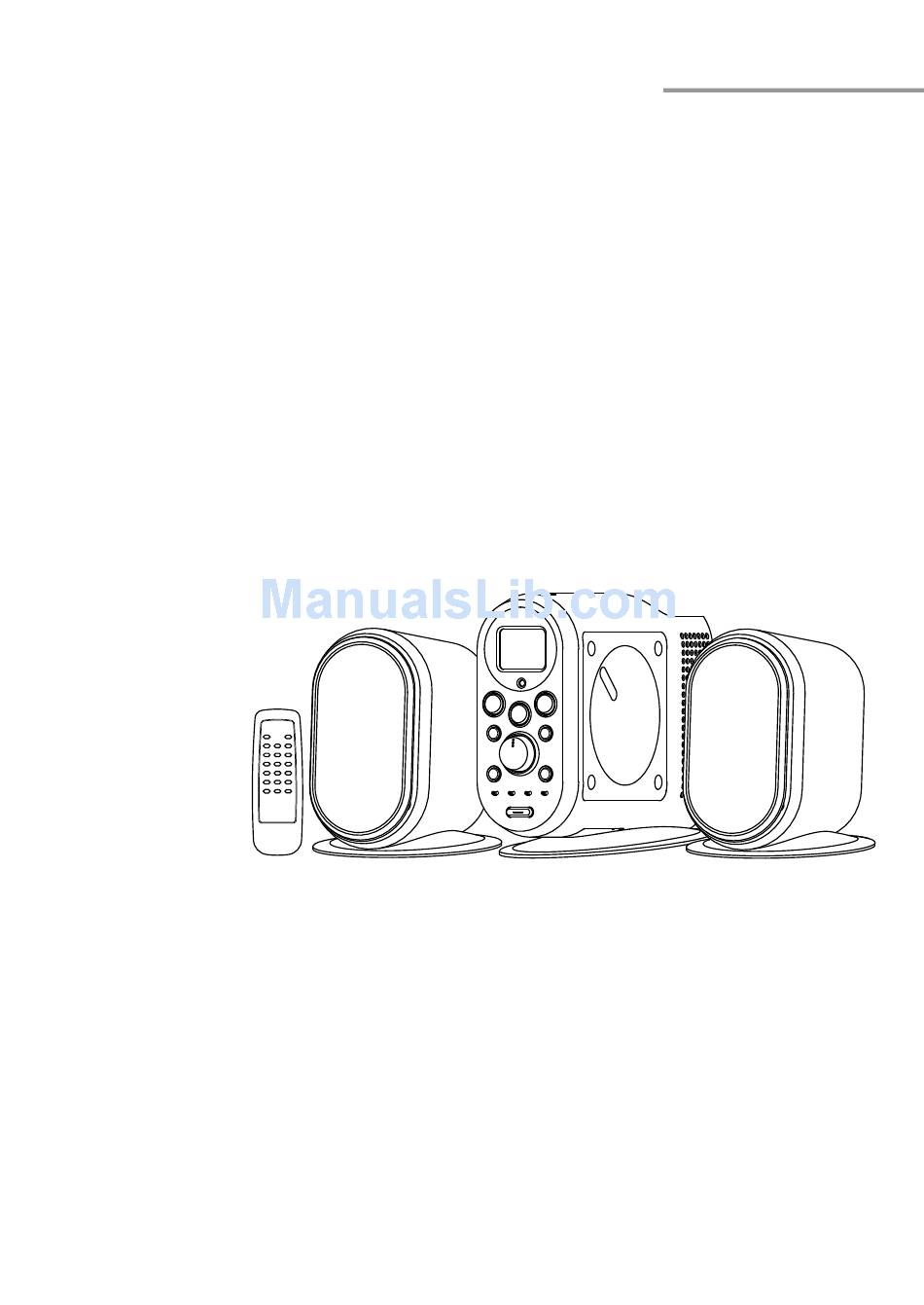

3228
S T E R E O C D R A D I O
INSTRUCTIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NE-3228 and is the answer not in the manual?

Questions and answers

Related Manuals for Orion NE-3228

Summary of Contents for Orion NE-3228

  • Page 1 3228 S T E R E O C D R A D I O INSTRUCTIONS MANUAL...

  • Page 2: Features And Controls

    FEATURES AND CONTROLS NE-3228...

  • Page 3: Dangerous Voltage

    To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate the unit , this will assure you years of faithful, trouble free performance and listening pleasure. Important Notes This safety and operating instruction should be retained for future reference.

  • Page 4: Putting The Batteries Into The Remote Control Unit

    FEATURES AND CONTROLS 1. SPEAKER BOX 17. MODE/REMAIN BUTTON 2. SPEAKER BASE 18. PROGRAM/C-ADJ BUTTON 3. LCD DISPLAY 19. STAND-BY INDICATOR 4. IR SENSOR 20. BATTERY DOOR 5. TUNER BUTTON 21. CD DOOR OPEN/CLOSE BUTTON 22. SPEAKER TERMINALS 6. STOP/BAND BUTTON 7.

  • Page 5: Installing The System

    INSTALLING THE SYSTEM Speakers Connection Extend the SPEAKER WIRES and connect them to the SPEAKER TERMINALS. Power Cord Connection Before using , connect the AC Power Cord to the AC outlet , then turn on the main switch of the unit. OPERATING THE UNIT When you first plug the unit into the AC outlet , the unit will be in standby mode , You can press the...

  • Page 6: Radio Operation

    SNOOZE SETTING (REMOTE CONTROL ONLY) Press the SNOOZE button in the TIME ON mode , the system will be switched to the STANDBY mode and " SNOOZE " appears on the display.(F.8) Five minutes later, the system will be switched on automatically to reach TIMER ON mode and start playing , then "TIMER "...
  • Page 7 Programming preset stations You can also preset stations of your choice and store up to 10 AM and 10 FM stations in its memory. To store your selected broadcasting stations: Press the STOP / BAND button to toggle between AM and FM to make your selection. Tune to the required station.
  • Page 8 LISTENING TO COMPACT DISC (CD) Press the CD button to select the CD operation.(F.13) Press the OPEN/CLOSE button to open the CD compartment(F.14), insert the disk with the printed face to the outside, again press the OPEN/CLOSE button to close the CD compartment. F.13 F.14 Playing The Entire CD...
  • Page 9 Stopping play Press STOP/BAND button if you wish to stop play. The disc and track number which can be played will now appear on the display.(F.22) Open the CD door on the unit to remove the CD . Programming the CD player By programming the CD player, you can play up to 20 tracks in any desired order.
  • Page 10 MUTE (REMOTE CONTROL ONLY) If you press the MUTE button, the "mute" indicator will be displayed & the audio output will be temporary terminated. Press MUTE button again, the "mute" indicator will be off & the audio output will be back to normal.

  • Page 11: Compact Disc

    COMPACT DISC Always use a compact discs bearing the mark as shown. Notes on handling discs Removing the disc from its storage case and loading it. * Do not touch the reflective recorded surface. * Do not stick paper or write anything on the surface. * Do not bend the disc.

  • Page 12: Multifunction Display

    MULTI FUNCTION DISPLAY A. TRACK NUMBER INDICATOR B. TUNER BAND INDICATOR C. FREQUENCY/TIME INDICATOR D. STEREO INDICATOR SPECIFICATION POWER SUPPLY : 230V~50Hz OUTPUT POWER : 5 Watts x 2 UNIT DIMENSION : 150 (L) x 288 (W) x 221 (H) mm SPEAKER BOX DIMENSION : 150 (L) x 232 (W) x 192 (H) mm RADIO SECTION...
