Summary of Contents for ArtFox Vista 16R Extreme
-

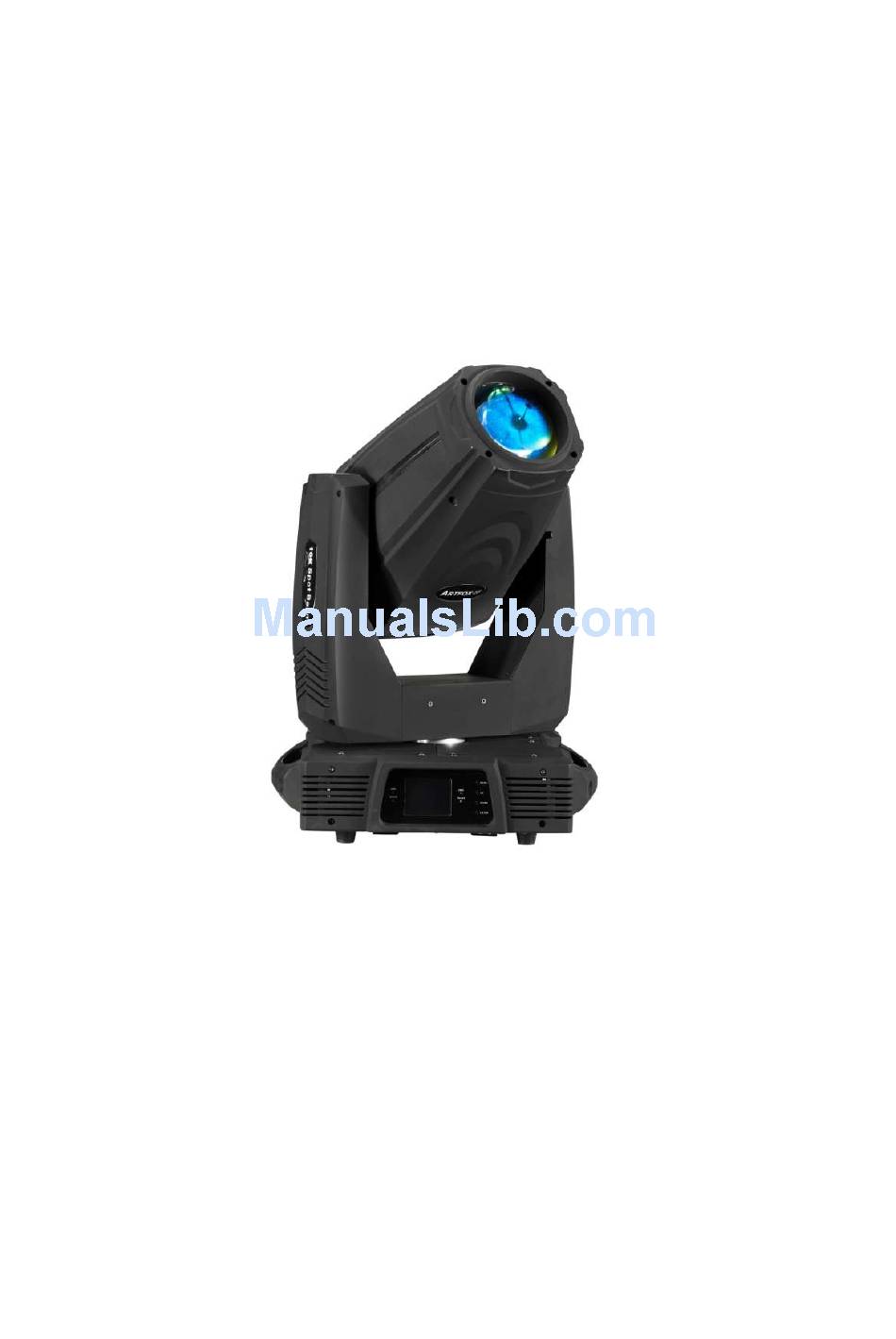

Page 1: User Manual
Vista 16R Extreme Hybrid beam spot wash, 3D effects User Manual... -
Page 2: Table Of Contents
CONTENTS Chapter 1 Installation and attention 1. Maintenance ..................... 1 2. Statement......................2 3. Safety Precaution ..................... 3 4. Product Instruction ................... 4 5. Cable connection（DMX） ................5 6. Rigging (Optional) ................... 6 Chapter 2 Panel operation 1. Brief ......................... 7 2. -
Page 3: Chapter 1 Installation And Attention
Chapter 1 Installation and attention Maintenance To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. Intermittently using will extend this item’s service life. Please clear the fan ,fan net , and optical lens in order to keep good work state. ... -
Page 4: Cable Connection（Dmx
Tilt scan：270° (16bit) Electric correction Amazing dot matix, four tact switch, 180° turning show Color wheel: one color wheel, 13 kinds of color chips in one color wheel Gobo: 13 static gobos, 9 rotation gobos; Effect Wheel: Rotation eight prism, effect move , frost 0-100% mechanical dimming, mechanical dimming and free dimming available. -
Page 5: Rigging (Optional)
Rigging (Optional) This equipment can be positioned and fixed by clamp in every direction of the stage. Locking system makes it easy to fasten to the bracket. Attention! Two clamps is needed to fix the equipment. Every clamp is locked by fastener of 1/4 kind. -
Page 6: Chapter 2 Panel Operation
Figure 2 Installation Chapter 2 Panel operation Chapter 2 Panel operation Brief The light panel diagram show as The light panel diagram show as Figure 3, Left area is TFT Displayer, support touch, , Left area is TFT Displayer, support touch, and right area is encoder button, both of touch and coder button can operate light and a is encoder button, both of touch and coder button can operate light and a is encoder button, both of touch and coder button can operate light and... -
Page 7: Operation
Figure 3Panel diagram Operation 1. Operate light with touch or encoder button The left area is TFT Displayer and touch, chick item or value with finger will to complete operation of set light setting(parameters) or view light state. The area on the right hand side is rotary encoder with button, As auxiliary input interface, if disable touch function,, the encoder can been choose to set or view the item, and then press the encoder button to confirm the selection, rotary encoder again set the parameter value, finally, Press encoder button one again to... -
Page 8: Sub Menu（Parameter
Figure 5 Dialog of confirm 4. Sub Menu（Parameter） Chick item of main menu, enter corresponding sub menu, shown in Figure 6, total 6 sub menu, includes class of parameter and status: ADDRESS：Set light DMX address. WORKMOD： Set light work mode, master or slave mode when in auto run mode. ... -
Page 9: Set Light Work Mode
Figure 7 page of DMX Address 2. Set Light work mode Enter the page of ‘WORK MOD’ as shown in Figure 8 and modify setting. Can set light work mode, control lamp and DMX channel mode.. Light includes 3 work mode: DMX MODE, AUTO RUN and SOUND MODE, Parameter definition as following: ... -
Page 10: Set Display
Set display Light support 2 language, rotation display，Enter page as shown in Figure9 to set parameter following: Language：Select display as simplified Chinese or English. Screen Saver：when panel is idle(these is no operation in 10 second), displayer will enter saver status. When set as ‘mode 1’，saver status is close display, as ‘mode 2’... -
Page 11: Set Light Run Parameter
Figure 10 page of Test Set light run parameter Enter the page as shown in Figure 10, set the parameter of light: Pan Invert: Reverse PAN move. Tilt Invert: Reverse TILT mover. Rectify enable：set as ‘OFF’, PAN or TILT will disable position rectify function. As ‘ON’, when PAN or TILT lose steps, light will rectify auto. -
Page 12: Chapter 3 Channel Description
View light current status, version； DMXClr: Click to clear all DMX data to ‘0’. SysRst：Click to reset light. Figure 12 page of status Chapter 3 Channel description Channel Function Light support 2 DMX mode: 20ch (Standard) and16ch (sample): Channel Channel Name... - Page 13 Color 1 10~14 Color 2 15~19 Color 3 20~24 Color 4 25~29 Color 5 30~34 Color 6 35~39 Color 7 40~44 Color 8 45~49 Color 9 50~54 Color 10 55~59 Color 11 60~64 Color 12 65~69 Color 13 70~189 Linear Color Wheel Forwards rainbow effect from fast 190~219 to slow...
-
Page 14: Color
120~127 Gobo 5 shake, Slow to fast 128~135 Gobo 6 shake, Slow to fast 136~143 Gobo 7 shake, Slow to fast 144~151 Gobo 8 shake, Slow to fast 152~167 Gobo 9 shake, Slow to fast 168~175 Gobo 10 shake, Slow to fast 176~183 Gobo 11 shake, Slow to fast 184~191 Gobo 12 shake, Slow to fast 192~199 Gobo 13 shake, Slow to fast... -
Page 15: Color
Backwards rainbow effect from 230~255 slow to fast 0~127 0~400 angle Forwards rainbow effect from fast 128~191 Rot. Gobo to slow Backwards rainbow effect from 192~255 slow to fast 0~127 Open position (hole) Prism 1 128~255 Insert prism1 0~127 Open position (hole) Prism 2 128~255 Insert prism2 0~127...
