TBK-4603E24IRV
D/N BULLET CAMERA
MANUAL
Features
1/3＂ high-resolution CCD.
•
More than
•
4.3mm Day&Night fixed lens built-in with IR Cut filter built-in.
•
21 IR LED＇s.
•
AGC, auto exposure, aperture correction and anti color rolling functions.
•
Vandal proof housing made of stiff zinc alloy, tested to resist attacks up to 500lbs efficiently.
•
Waterproof and IP66 certification.
•
3 axis adjustable mount with built-in keys mechanism for secure and firm lock.
•
NOVIEMBRE 2012
600 TV lines.

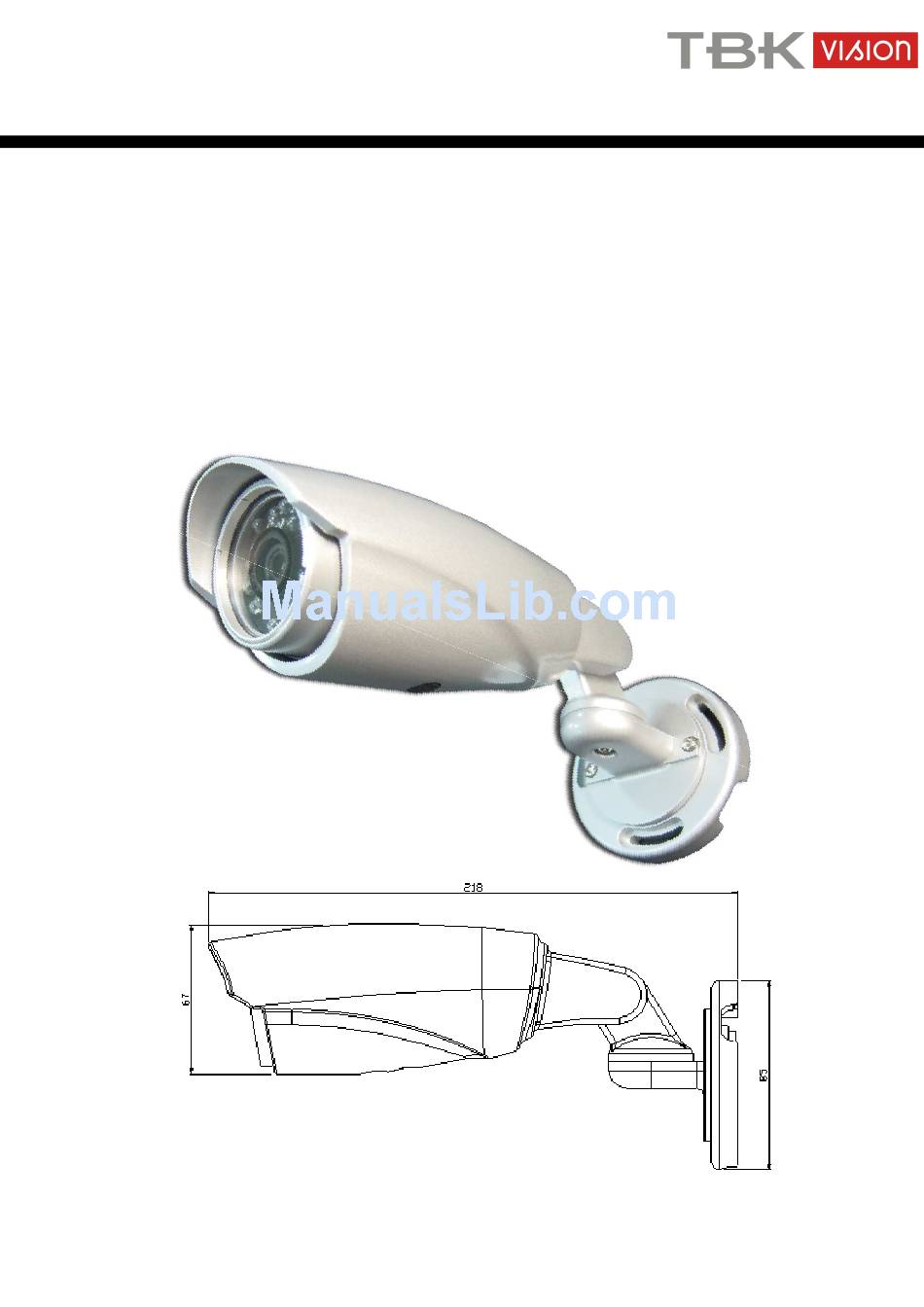

Measurements in mm
Advertisement
Table of Contents
Related Manuals for Hommax Sistemas TBK-4603E24IRV
Summary of Contents for Hommax Sistemas TBK-4603E24IRV
- Page 1 TBK-4603E24IRV D/N BULLET CAMERA MANUAL Features 1/3＂ high-resolution CCD. • 600 TV lines. More than • 4.3mm Day&Night fixed lens built-in with IR Cut filter built-in. • 21 IR LED＇s. • AGC, auto exposure, aperture correction and anti color rolling functions.
- Page 2 TBK-4 03E24IRV D/N BULLET CAMERA MANUAL Model No. TBK-4603E24IRV 1/3" Hi Resolution CCD Image Sensor Effective Pixels 752 (H) X 582 (V) Video System PAL TV System Scanning System 2:1 Interlace Electronic shutter Auto and up to 1/100.000 Sync System...
- Page 3 TBK-4603E24IRV D/N BULLET CAMERA Installation. Fix the camera to the mounting surface (wall or cell mounting). Use the three direction axis to aim the camera. Angle adjustment: step 1. Loose the screw on the base and adjust the camera rotationally. Fix it and tighten the screws.
- Page 4 TBK-4603E24IRV D/N BULLET CAMERA Step 2. Loose the screw on the bracket and adjust the camera body vertically. Each cog gears 18 degrees. Fix it and tighten the screws. During the steps 1 and 2 do not let the screw loose fully; loose it only to be able to do the adjustment. It is a little difficult to tight the screw again.
- Page 5 LENS SETUP MENU LENS ● DC ● MANUAL ● DC : Select Auto Iris Lens ● SHUTTER ● BRIGHTNESS ● AGC EXPOSURE Choose the lens type DC and Manual lens by using the selector joystick. ● D-WDR ● RETURN ● MANUAL : Select Manual Lens WHITE BALANCE ●...
- Page 6 ● B / W : ON / OFF Enter a title, move the cursor to “POS” and press This picture is always displayed in black and white. SET joystick. The entered title appears on the screen. - BURST : ON / OFF Select the position to displayed the title on the screen Burst signal is off when it’s under B/W mode.
