Installation Guide

Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-(845-4641)
or visit the Viking Web site at brigade.ca
Built-In Electric Cooktops
Built-In Induction Cooktops
F21276 EN
(083113)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVEC5304BSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brigade CVEC5304BSB

Summary of Contents for Brigade CVEC5304BSB

  • Page 1: Installation Guide

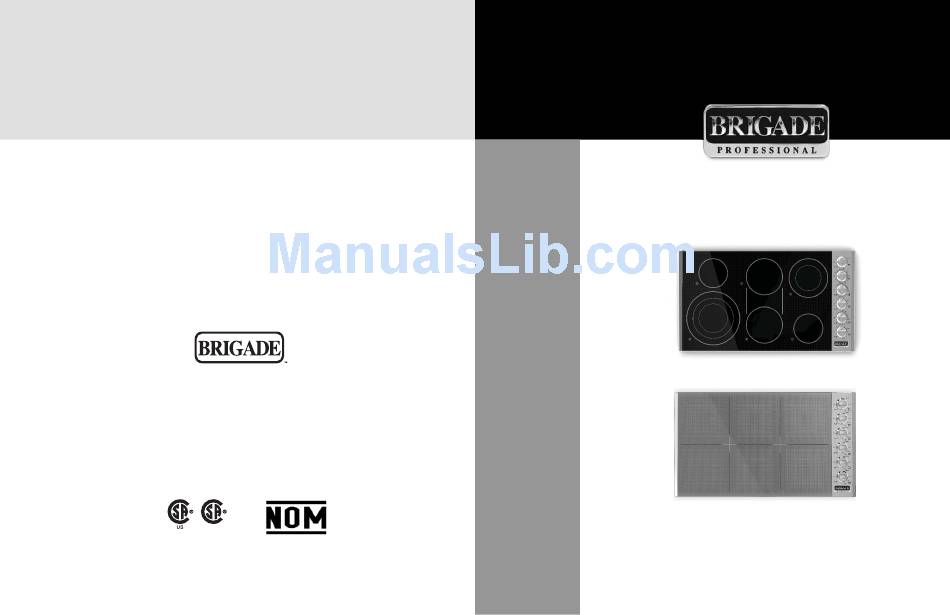

    Installation Guide Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit the Viking Web site at brigade.ca Built-In Electric Cooktops Built-In Induction Cooktops F21276 EN (083113)

  • Page 2: Table Of Contents

    Table of Contents IMPORTANT – Please Read and Follow! • Before beginning, please read these • DO NOT remove permanently affi xed Warnings & Important Safety Instructions ___________________________ 3 instructions completely and carefully. labels, warnings, or plates from product. Specifi cations (Electric Cooktops) __________________________________ 5 This may void the warranty.
  • Page 3 IMPORTANT – Specifications Please Read and Follow! (Electric Cooktops) WARNING CAUTION Electric Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide BURN HAZARD Be sure the electric power is off from the breaker box to the The use of cabinets for storage Overall width 30-3/4”...

  • Page 4: Dimensions

    Dimensions Specifications (Overall Height) (Induction Cooktops) Induction Cooktop Electric Cooktop Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Overall height from bottom To top of knobs 4” (10.2 cm) 1-1/4”...

  • Page 5: Cutout Dimensions

    Cutout Dimensions Cutout Dimensions 30” W. CUTOUT w/ DOWNDRAFT 7/8” (2.2 cm) 27” 7/8” (68.6 cm) (2.2 cm) 2-1/4” (5.7 cm) 20-1/4” (51.4 cm) 30”W. MODELS 36”W. MODELS 30”W. Models 36”W. Models 28-5/8” 34-5/8” (72.7 cm) min. to (87.9 cm) min. to 28-3/4”...

  • Page 6: Clearance Dimensions

    Clearance Dimensions Clearance Dimensions Optimum Design PROXIMITY TO SIDE CABINET INTERIOR CABINET CLEARANCES Minimum Clearances from Adjacent INSTALLATION INDUCTION COOKTOPS Combustible Construction Cool Air • The cooktop may be installed directly to • Above countertop 36” (91.4 cm) minimum Hot Air existing base cabinets.

  • Page 7: Electrical Requirements

    Electrical Requirements General Information READ AND FOLLOW ALL WARNING • When removing the cooktop for service WARNING WARNING AND CAUTION INFORMATION WHEN and/or cleaning, disconnect AC power INSTALLING THIS APPLIANCE. supply. BURN HAZARD The electrical power to the • Electrical requirements are listed in the unit must be shut off while line The use of cabinets for storage •...

  • Page 8: Installation

    Final Preparation Service & Registration • Some stainless steel parts may have plastic • If it is necessary to scrape stainless steel to protective wrap which must be peeled off. remove encrusted materials, soak with hot, • All stainless steel body parts should be wet cloths to loosen the material, then use Only authorized replacement parts may be used in performing service on the cooktop.
