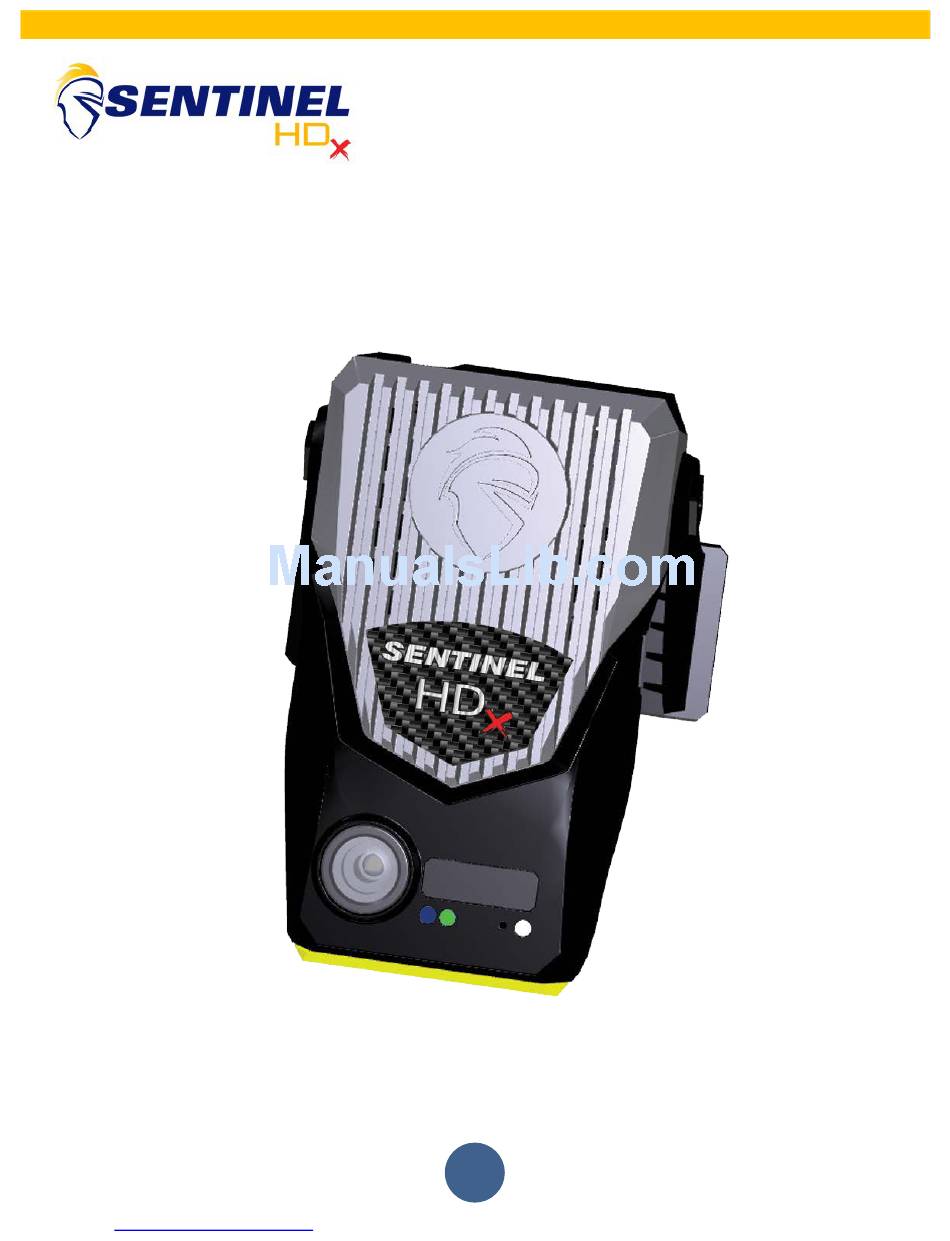

- Page 1 Quick Start Guide and Installation Manual Camera Vision Solutions 4616 West Howard Lane Bldg 5, Suite 550, Revision 3.0.7 Austin, Texas 78728 512-651-5277, Support@SentinelHDX.com...
-
Page 2: Quick Start Guide
If so, uninstall and reinstall 64bit version) • Connect provided wall mounted power supply to Sentinel HDx Camera o Power up camera by simply plugging it in (green status LED should light up) o Connect Camera via USB to desktop or notebook where AEGIS is 9installed. - Page 3 Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com Once you are logged into the software: • Select: Device Vehicle Management - Add Device – Vehicle a. Enter the minimum required fields shown below and any additional information requested optionally b. Vehicle name: Enter a name you would like for the vehicle, then click Save...
-
Page 4: Wifi Settings
Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com • WiFi Settings o Enter Server IP Address (If IP address is unknown: right click the Start button, select network connections, Select the current network connection, select Details, The IP address will be IPv4 Address.) o Enter SSID (Wireless Network Name) and password, Save •... - Page 5 • Disconnect USB • The link status LED should illuminate from green when sentinel HDx is connected to AEGIS via wireless interface. AEGIS dashboard will also display green wireless connection. This may take a...
-
Page 6: Installation Guide
The GPS module is located at the top of the HDx unit. This antenna receives signals from the Global Positioning Satellite system located in geosynchronous orbit around the earth. Optimum GPS positioning information relies upon communication with the greatest number of individual satellites on the horizon. -
Page 7: Installation Procedures
This equipment should be installed and operated with minimum distance 10 cm between the radiator and your body. The HDx Bluetooth module is the least sensitive of the 3 radios to unit placement. Following above considerations will accommodate the requirements of Bluetooth without further... - Page 8 The two most important factors involved in bracket installation are test fitting the camera unit and surface preparation of the windshield mating surface. The Sentinel HDx unit utilizes 3M’s VHB (Very High Bonding) adhesive mounting tape to ensure the best possible result in any installation.
- Page 9 Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com Important: Do not apply lateral pressure on the wings of the bracket. Firm pressure should be applied only to the center per the illustration. 6. Mount the camera to the bracket assembly using the provided screws. It is important to ensure the unit is positioned as perfectly vertical as possibly using the slotted location notches to ensure proper operation.
- Page 10 Electrical Harness Routing and Connection The Sentinel HDx unit is designed to operate directly off of your vehicle’s 12 volt electrical system via a (2) two wire installation. Most vehicles provide two basic types of 12 volt supply; switched on and off with the vehicle’s ignition and always on. The HDx should always be connected to the 12 volt always on power source.
- Page 11 Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com 4. Select an appropriate accessory fuse circuit in the panel with enough amperage to safely accommodate the camera’s load of 1 Amp. 5. Remove the ATC/ATO fuse from its socket. Using a voltmeter or 12V test lamp, determine which leg of the supply socket has 12 volt continuous supply.
- Page 12 Test Recording and Assessment The Sentinel HDx unit should now be physically mounted in the proper location on the vehicle’s windshield and powered by a 12 volt continuous fused power circuit. It is now time to run a test recording to confirm proper camera angles and vertical level adjustment.
- Page 13 Are both the driver and passenger torsos visible with reasonable centering left to right? Important: If the vehicle has a very curved or angled windshield, consider the use of the HDx optional adjustable windshield mount. Ask your Sentinel HDx sales representative for details.
- Page 14 Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com SKU Numbers and Production Variations G indicates External GPS Connector W indicates External WirelessAntennae I indicates External Input For Example: LF-SHDX-32-A = Standard ordering part number with 32 GB card and both antennas internal...
- Page 15 Phone 512-651-5277 www.sentinelhdx.com support@sentinelhdx.com Service and Repair Camera unit is not field serviceable. User should not tamper with seal on unit or attempt to open the unit for any reason. Only qualified personnel should service the camera or install the camera in a vehicle.
-
Page 16: Limits Of Liability
In no event will Sentinel HDX be liable for more than the amount of your purchase price, not to exceed the current list price of the product, and excluding tax, shipping and handling charges. Sentinel HDX disclaims any other warranties, express or implied. -
Page 17: Limited Warranty
(2) years from date of purchase by the first purchaser of the Product who puts it into service (the “Purchaser”), exclusive of Sentinel HDX, jobbers, and dealers. This Warranty extends only to the Purchaser and not to any subsequent purchasers or users of the Product. - Page 18 Sentinel. Purchaser shall be responsible for and must prepay any shipping expense for return of the Product to Sentinel. Sentinel will investigate and, in the event of a breach of warranty, will provide, as its sole option and within a reasonable period of time: Repair of any nonconforming Product or components;...
