TKP-2000 Installation
TKP-2000 Installation

Introduction

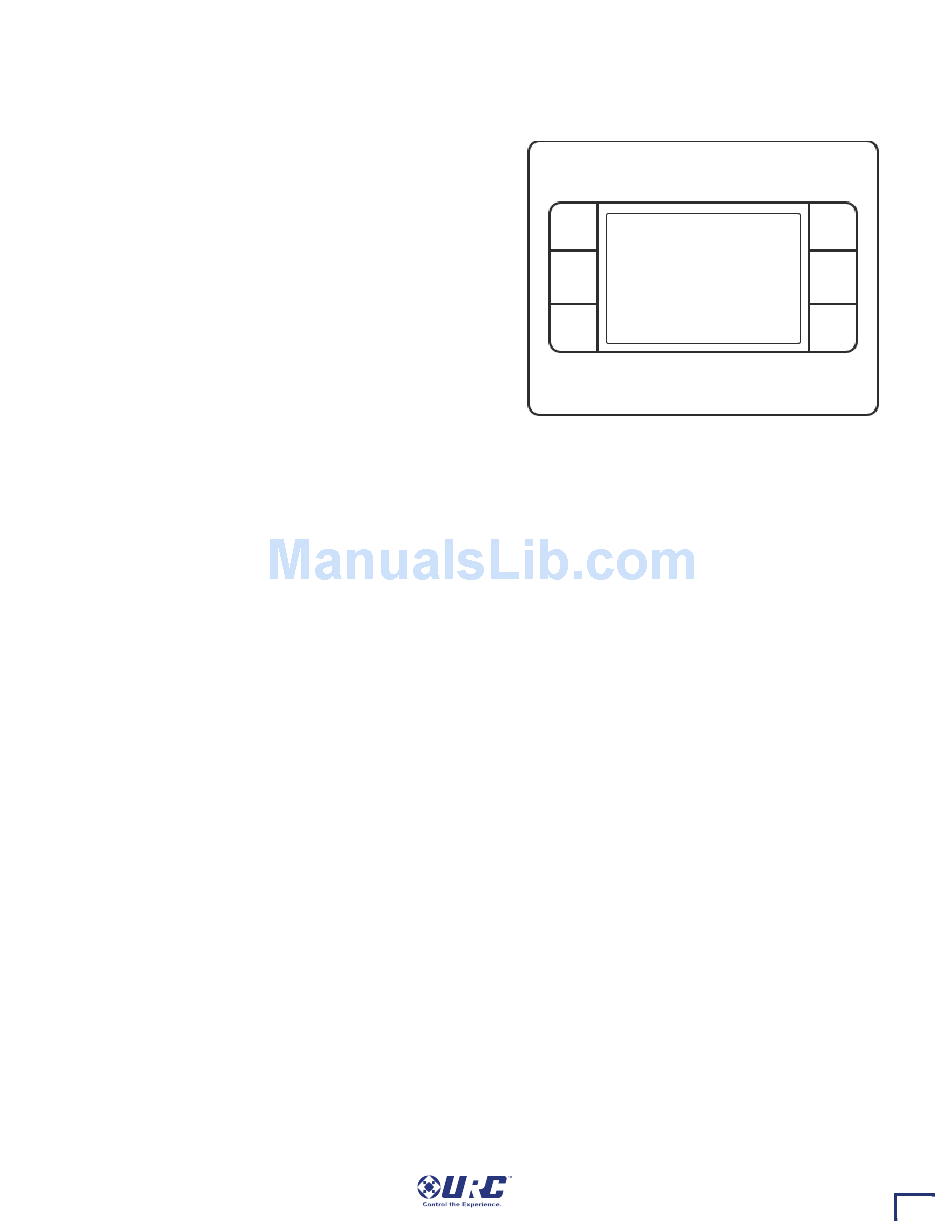

The TKP-2000 is a 2.5" color In-Wall Touch-Screen used to
operate System, Zone and Transport functions in a Total
Control system. It communicates with the MRX-10 Advanced
System Controller over the LAN to send commands that are
then relayed to the devices being controlled. Additionally, it
has the ability to receive on-screen feedback from audio
video components, energy management devices, the DMS
multi-zone system, PCs and iPods, IP cameras, and whole
house lighting. The TKP-2000 receives its 24V power over the
ethernet, using a POE enabled network switch or a POE
injector.

Features and Benefits

The TKP-2000 In-Wall Touch-Screen is installed in the wall using a standard 2-gang box. Once installed, the
cover bezel simply snaps on using magnets. It is available in White and Black. If another color is desired,
inquire with your sales represenative. It connects to the LAN using the standard RJ-45 Ethernet port on the
back. The TKP-2000 works in a Total Control system, and will not work as a stand-alone controller.
Using the LAN as the data pathway, the TKP-2000 allows System, Zone and Device control by issuing commands
to a URC MRX-10. This then sends the control codes to the proper equipment. These commands can be relayed
to the equipment using IR, RS-232 or IP signals. Lighting control can be provided by adding an RFTX-1 at the
RFTX-1 port on the MRX-10 or else in IR port 6 on an MRX-1.
Two-way control modules programmed in the system will deliver metadata feedback and cover-art to the
screen of the TKP-2000. 2-way modules are programmed by simple drag and drop within the URC Accelerator
software, and operate multi-zone receivers, internet feeds (News, Sports, Weather and Stocks), PC and i-Pod
control, streaming network content, and home automation.
The Total Control system allows the TKP-2000 to control up to 255 devices. Some custom graphics can be
added to allow the installer to personalize the unit for individual clients. The six hard buttons, three on either
side of the touch-screen, are pre-installed with customizable button caps. The default configuration requires
no additional programming for the 2-way modules. However, if the buttons are swapped, the file requires
custom programming to allow the proper commands to be routed to these buttons, and to ensure that those
buttons removed from the front have on-screen replacements.
144

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKP-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for URC TKP-2000

  • Page 1 The TKP-2000 works in a Total Control system, and will not work as a stand-alone controller. Using the LAN as the data pathway, the TKP-2000 allows System, Zone and Device control by issuing commands to a URC MRX-10. This then sends the control codes to the proper equipment. These commands can be relayed to the equipment using IR, RS-232 or IP signals.
  • Page 2 Parts Guide The TKP-2000 In-Wall Touch-Screen includes: 1 – TKP-2000 In-Wall Touch-Screen 1 – Magnetically attached cover plate 4 – 6/32 Device Mounting Screws Front and Rear Panel Descriptions Front Panel The front consists of a 2.5” color touch-screen and 6 laser-etched backlit buttons which can be programmed to either be off...
  • Page 3 Physical Installation of the TKP-2000 and Accessories The TKP-2000 In-Wall Touch-Screen is connected to the network using a single Cat5 Ethernet wire with POE. It is installed into a standard two-gang box or low voltage ring using the included 6/32 mounting screws. The button caps are installed under the bracket by first removing the bracket screws, placing the caps on the...
  • Page 4 Installing the TKP-2000 Connect the Ethernet wire to the RJ-45 port on the back of the TKP-2000. Feed the wire into the box or wall until the touchscreen is flush with the wall. Using the included 6/32 mounting screws in the mount- ing holes, attach the touchscreen to the box making sure that it is level.
  • Page 5 Sounds programmed, Brightness of the screen, System parameters, Network settings and resetting the unit back to its Factory Default settings. If you do not press any button on the SETTINGS screen within 1 minute, the TKP-2000 will time out and automatically return to normal operation.
  • Page 6: Configuration Options

    Date & Time Your TKP-2000 may have been programmed to display the date or time on the touch screen. If you need to, you can adjust the time displayed by changing the settings on this screen. If you live in a part of the country that uses daylight savings time, check the box next to: “Automatically adjust clock for Daylight Saving Time”.
  • Page 7 Factory Default WARNING! Only use this button when instructed to by Technical Support. It resets the memory of the TKP-2000 to the factory condition. All your programming will be lost! Exit When you have finished adjusting Settings, simply tap the EXIT button to return to normal operation.
