Summary of Contents for Proaction CG04

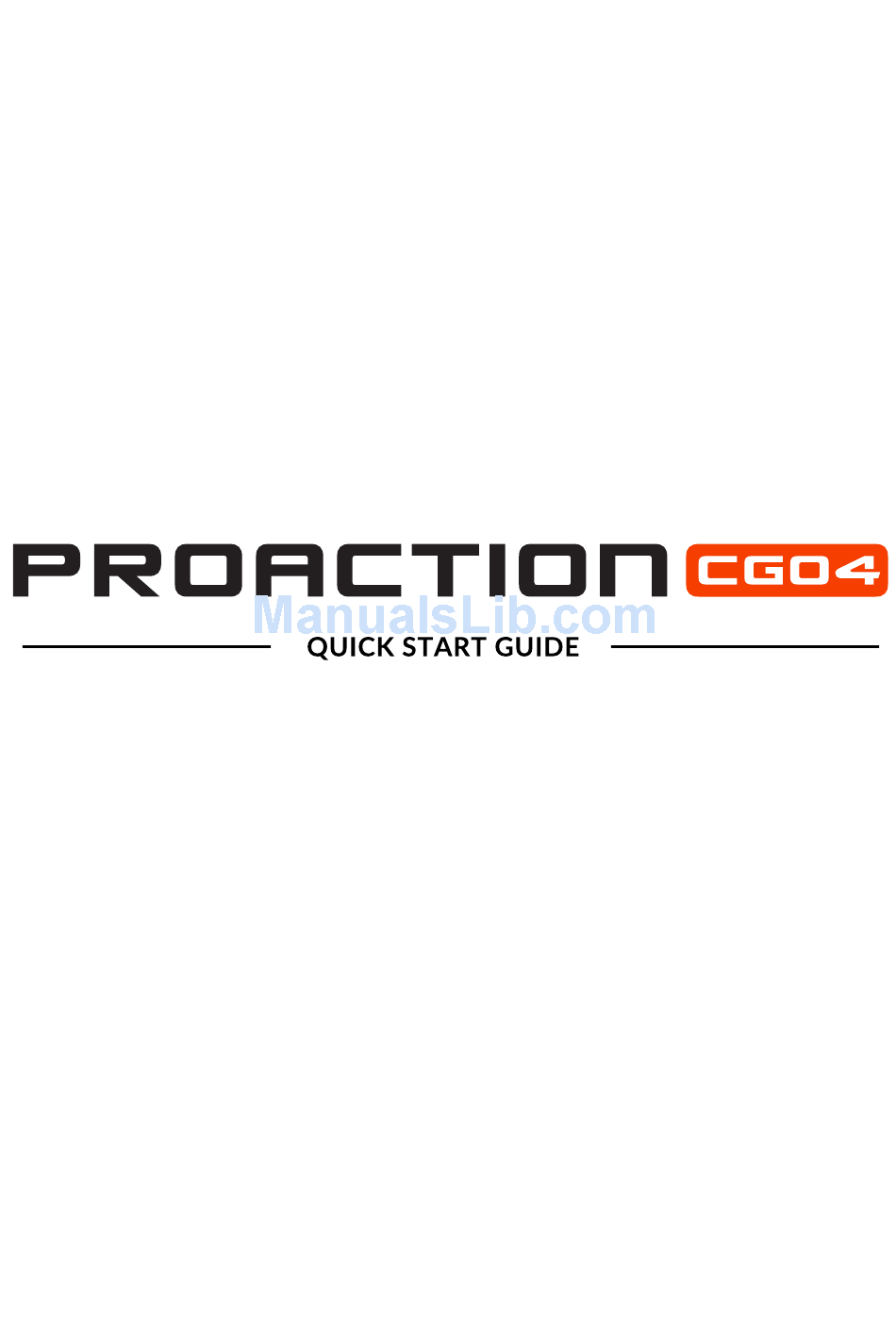

  • Page 1 V12242015...

  • Page 2: Important Note

    SAFETY PRECAUTIONS PROACTION™ Do not touch or move the ProAction™ within about 12s until the initialization is completed. Do not operate the ProAction™ in the rain! Do not expose the ProAction™ to re sources! The ProAction™...

  • Page 3: Specifications

    5.8GHz video link module all housed in purpose designed casing. It can be installed on both the TORNADO H920 copter and the ProAction™ ground SteadyGrip system. All the regular Panasonic GH4 camera settings can be freely and remotely adjusted through Yuneec ST24 transmitter which totally transforms and reshapes the boundaries of aerial imaging creation.
  • Page 4 Yaw：360° limitless Maximum Control Range: Maximum Control Speed: Pitch(for H920): between -90° to 0° Pitch：30° /s Yaw: 30° /s Pitch(for ProAction™): between -90° to 30° Current Consumption/Operating Current: 1A Yaw: 360° limitless Storage Temperature: 10°C--30°C Input/Operating Voltage: 24V Working Temperature: -5°C--45°C...
  • Page 5 CAUTION: Power off the camera before inserting or removing the SD card. STEP 1: Remove the rubber SD card cover as shown in the illustration. STEP 2: Slide the memory card into the card slot in accordance with the direction indicated by the sticker. STEP 3: When fully inserted, the card clicks into place.- To remove the card, place your ngernail against the...
  • Page 6 ATTACHING CGO4 GIMBAL CAMERA TO PROACTION™ NOTICE: Remove the xed foam pad from the CG04 gimbal camera before proceeding. STEP 1：Securely attach CGO4 gimbal camera to ProAction™ with gimbal thumb screws, then withdraw the gimbal cord from the left side.

  • Page 7: Led Status Indication

    Connecting Between the Gimbal and Aircraft Fails: In the Follow Mode: LED blinking green In the Global Mode: LED blinking blue NOTICE: We suggest that the user restart H920/ProAction in such conditions. Connecting Between the Gimbal and Aircraft Succeeds: In the Follow Mode: LED solid green...
  • Page 8 There are two modes to control the gimbal through ProAction™: Follow Mode and Global Mode. Switch on the ProAction™ on a at and stable surface. Do not move, sway or shake the ProAction™ during initialization. After initialization, the gimbal will boot up normally in either Follow or Global Mode, depending on user settings on the left-hand switches of the ProAction™.
  • Page 9 Stick on the right side. DOUBLE HANDS OPERATING METHOD In the Follow Mode, the camera lens tracks the ProAction™ in Yaw axis. The user can only control the Pitch direction through Gimbal Control Stick on the right. Move the Gimbal Control Stick upward to trim the camera lens up.
  • Page 10 Control Stick on the right side of the ProAction™ is disabled in Pitch direction. NOTICE: When the user holds the ProAction™ with single hand in the Global Mode, the user can control the camera in the Yaw direction through the Gimbal Control Stick.
  • Page 11 HD video feed right on your mobile device. It makes you feel as though the camera is right in your hands. CAUTION: If the user wants to take photos or videos through ProAction™, CGO4 APP should be downloaded beforehand.

  • Page 12: Fcc Statement

    FCC STATEMENT: This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 13: Ic Radiation Exposure Statement For Canada

    IC RADIATION EXPOSURE STATEMENT FOR CANADA This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
