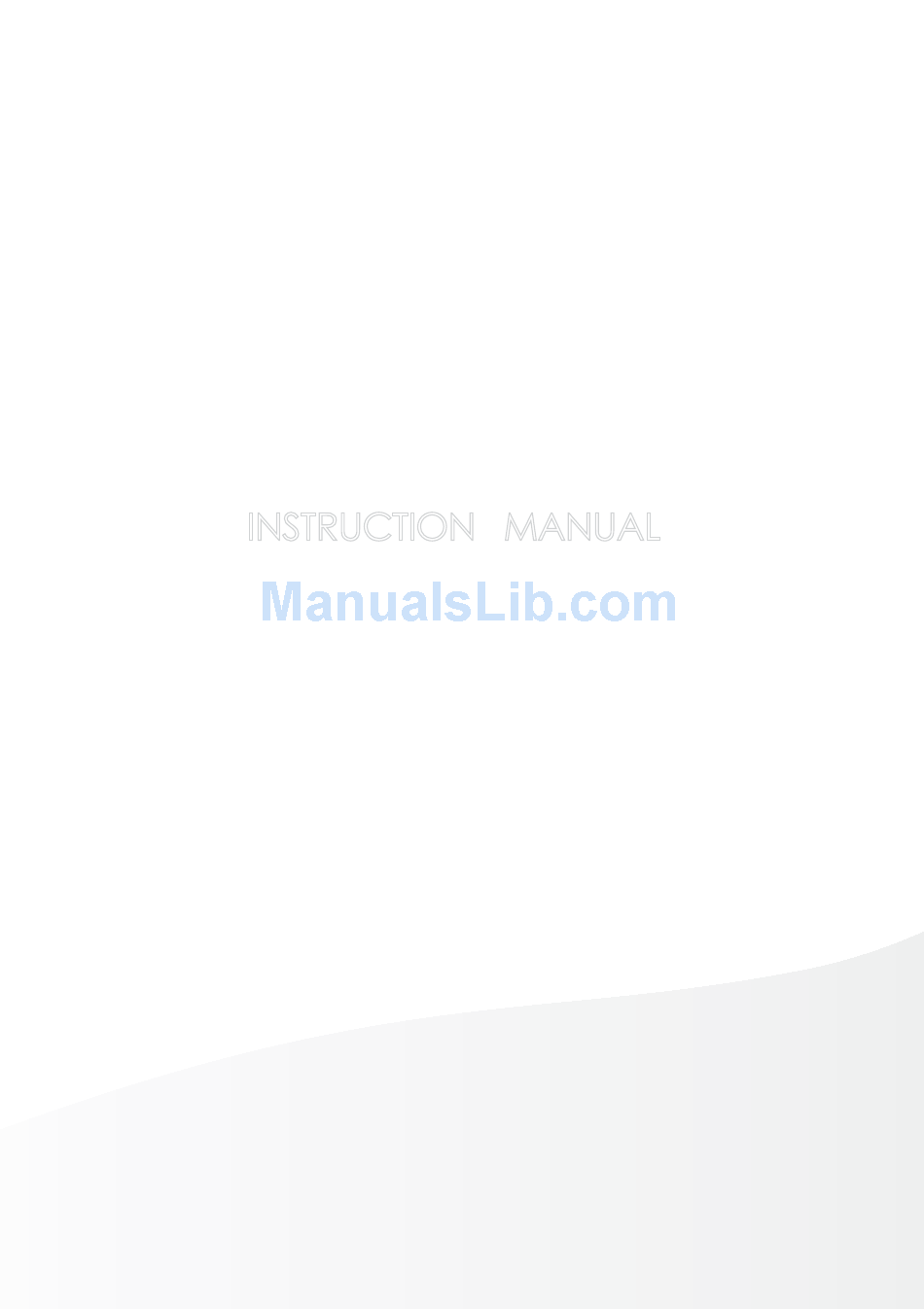

- Page 1 INSTRUCTION MANUAL Tel. +49 (0) 4154 / 80 83 - 0 Fax. +49 (0) 4154 / 80 83 - 20 E-mail info@camos-multimedia.com Internet www.camos-multimedia.com Address CAMOS Europe GmbH Carl-Zeiss-Str. 3 D-22946 Trittau...
- Page 2 INSTRUCTION MANUAL Thank you for purchasing this product. For proper usages and application, Please read this instruction manual thoroughly. RV-430 / RV-400 REAR VIEW SYSTEM FOR VEHICLE PRINTED IN KOREA * Design and specifications are subject to change without notice.
-
Page 3: Table Of Contents
INHALT VIDEORÜCKFAHRSYSTEM SAFEGUARD INSTRUCTIONS ......... 3 FEATURE ................5 BOX CONTENTS ..............5 FUNCTION OF EACH PART ..........5 FUNCTIONS ................ 6 INSTALLATION ..............8 CABLE CONNECTION ............. 10 SPECIFICATIONS ............. 11... -
Page 4: Safeguard Instructions
SAFEGUARD INSTRUCTIONS REAR VIEW SYSTEM FOR VEHICLE Please pay attention to the warnings and cautions listed in order to prevent the potential risks. “WARNING” and “CAUTION” symbols are divided according to the different level of risk. May cause bodily harm or even death if user ignores WARNING cautions in the safety rules. - Page 5 Do not use in problem condition as like smoking, smell something burn. - It may cause fire. Stop to use and make inquiries to agency. Do not disassemble, repair and remodeling. - It may cause malfunction and injury, can not get warranty. - Make inquiries to agent for repair and checkup.
-
Page 6: Feature
• High quality color CCD image sensor • 5 languages display selection • Completely waterproof [IP-66(CM-30) / IP-67(CM-43)] (ENG-DEU-ITA-FRA-ESP) • IR-LED, Heating, CdS sensor, MIC. adopt (only CM-30) BOX CONTENTS REAR VIEW SYSTEM FOR VEHICLE [RV-430] CM-410 CM-30 CL-5S Cigar Cable Extension Cable Extension Cable... -
Page 7: Functions
FUNCTIONS REAR VIEW SYSTEM FOR VEHICLE 1. Power ON/OFF 1) POWER ON : If you switch up, POWER ON. Power ON/OFF switch. 2) POWER OFF : If you switch down, POWER OFF. 2. Button function When push [MENU] button for a long time while power on, the screen off and stand-by LED will turn on. When push [MENU] button shortly while power off, the screen on and stand-by LED will turn off. - Page 8 ·[COLOR] : Density adjusting on screen color On Color setting mode, buttons control density of screen color. (0~100) [0 : Low density / 100 : High density] FARBDICHTE ·[TINT] : Screen color adjusting On Tint setting mode buttons control screen color. (0~100) FARBTON ·[DIMMER] : Automatic brightness adjusting On Dimmer setting mode, the menu changes [AUTO] - [DAY] -...
-
Page 9: Installation
INSTALLATION REAR VIEW SYSTEM FOR VEHICLE MONITOR INSTALLATION 1. Remove protecting tape from below of stand and attach stand with double stick tape. 2. Fix a stand with enclosed 3 screws. 3. Connect stand and monitor. - Page 10 RV-430 CAMERA INSTALLATION (CM-30) Sun Visor Screws Screws Camera Bracket Camera Bracket 1. Determine a position and direction of installation and attach a camera bracket using double stick tape and screws. 2. Connect a camera with bracket on vehicle and fix them with screws.
-
Page 11: Cable Connection
CABLE CONNECTION REAR VIEW SYSTEM FOR VEHICLE CM-30 CM-3 CM-10 Extension Cable (for Camera) CAMERA Extension Cable (for camera) Monitor Cable Extension Cable (for TRG) DC IN (1~V) Before making the connection, disconnect the ground terminal of the car battery to avoid short circuiting. The plug should be fully inserted into the connector, should be check pin arrangement before inserting. -
Page 12: Specifications
SPECIFICATIONS REAER VIEW SYSTEM FOR VEHICLE CM-410 (MONITOR) DISPLAY 4.1” QVGA(320x240) TFT-LCD, 260,000 colors CONTRAST RATIO 200 : 1 VIEW ANGLE(L/R/U/D) 65 / 65 / 60 / 65 BRIGHTNESS 280 cd VOLTAGE DC 12~24V CURRENT 500mA FREQUENCY H : 15.734kHz / V : 60Hz VIDEO SIGNAL NTSC / PAL VIDEO INPUT... - Page 13 MEMO VIDEORÜCKFAHRSYSTEM...
- Page 14 MEMO VIDEORÜCKFAHRSYSTEM...
